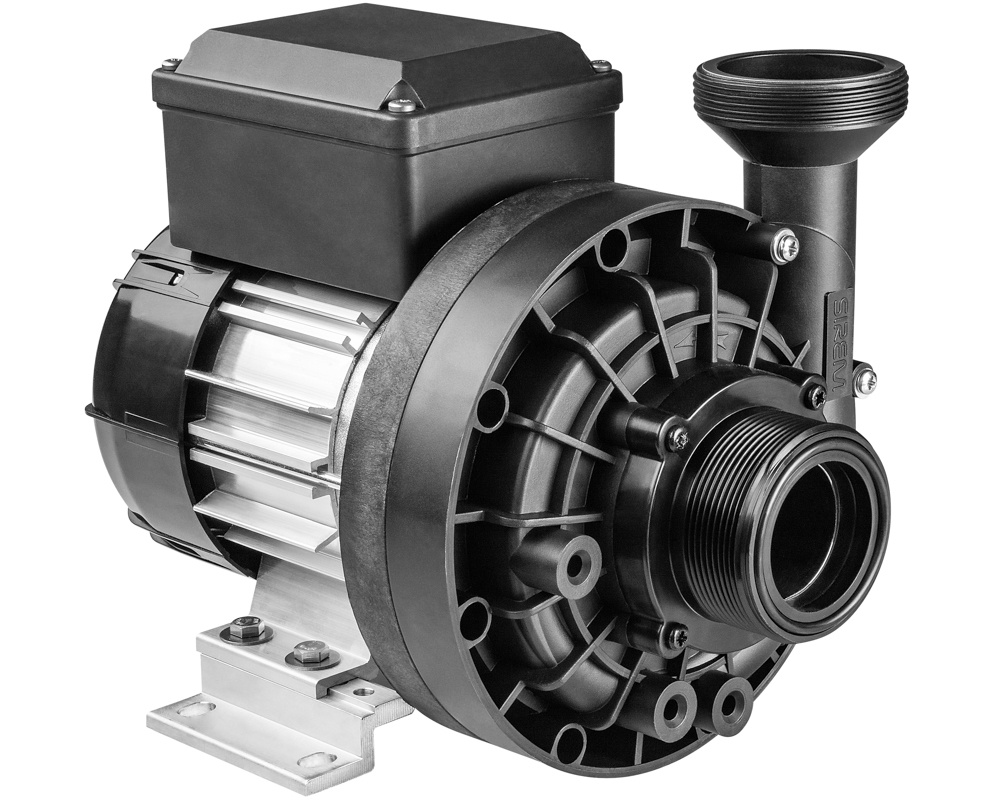

SIREM PB1C450K1B circulation pump
This SIREM circulation pump is used by several spa manufacturers, notably on Aqua Dolce hot tubs.
Dimensions (without fittings)
Length: 265 mm
Width: 178 mm
Height: 215 mm
Technical specifications
Power: 218 W
Current: 1A
Speed: 1375 rpm
Connections
Suction and discharge: male thread, 65 mm diameter
The pump is supplied with two unions for 50 mm pipes.
Cable and plug
This SIREM PB1C450K1B pump is delivered pre-cabled withan AMP plug. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.
You can also choose to have the pump pre-cabled by our team with a mini J&J plug.
Warranty
2-year Tubs Parts warranty
Part numbers
SIREM : PB1C450K1B, 0308000002
Replaces PBL1C450K1B
