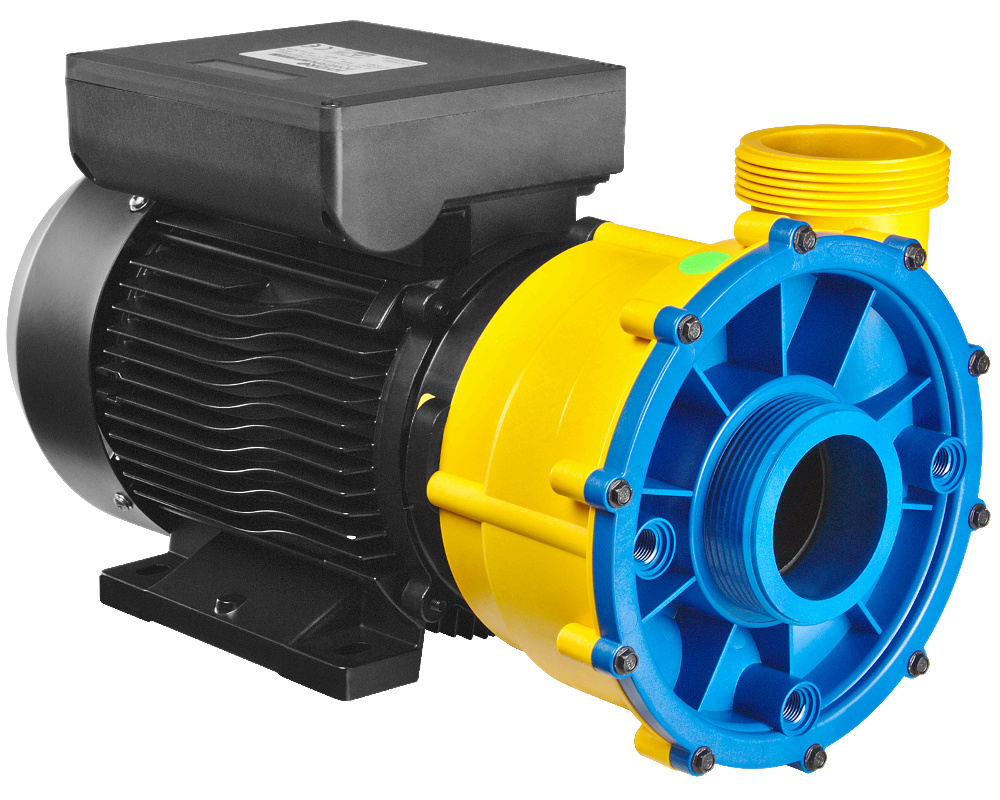

Whirlcare Hydro Power 2.5 HP two-speed pump

The German Whirlcare Hydro Power spa pumps are easily recognisable with their yellow and blue wet end. The pumps are integrated as standard in all whirlpools and swim spas from Whirlcare, but are also available as spare parts or retrofitting parts for all other brands.

This 2.5 HP two-speed pump has a slow speed for filtration and heating, and a fast speed that runs the massage jets.

We also sell the Whirlcare 2.5 HP and 3 HP single-speed models.

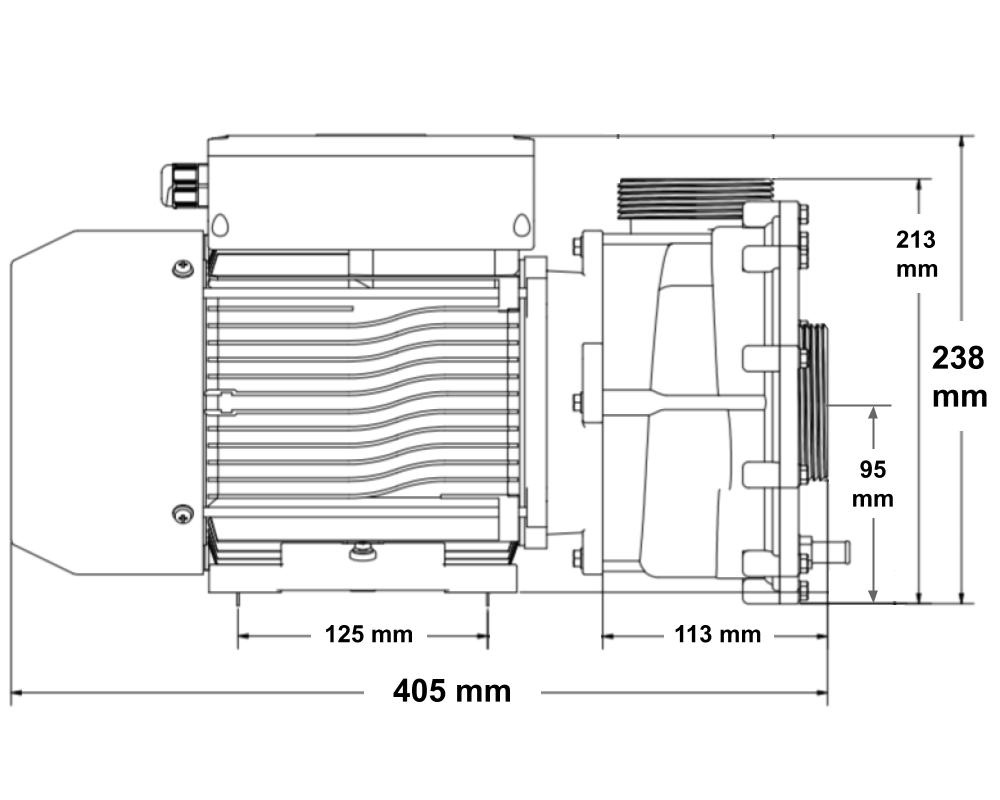

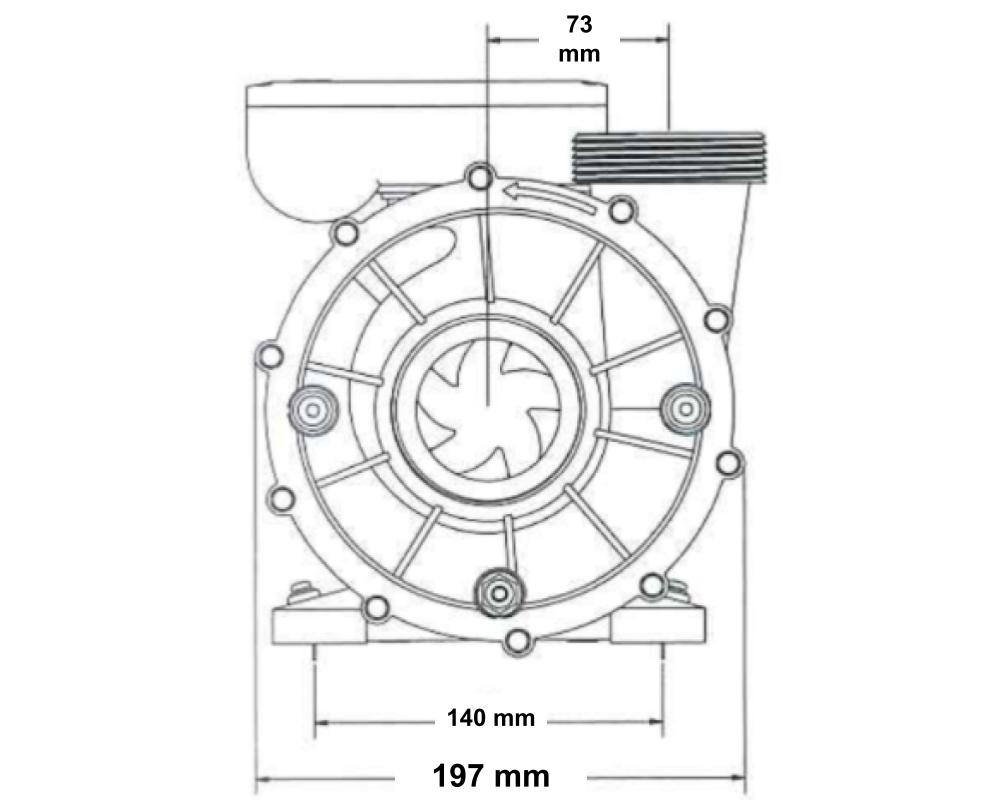

Dimensions
Length: 405 mm
Width: 197 mm
Height: 238 mm

Technical specifications
Power high speed: 1,85 kW / 2,5 HP
Power low speed: 0,38 kW / 0,50 HP

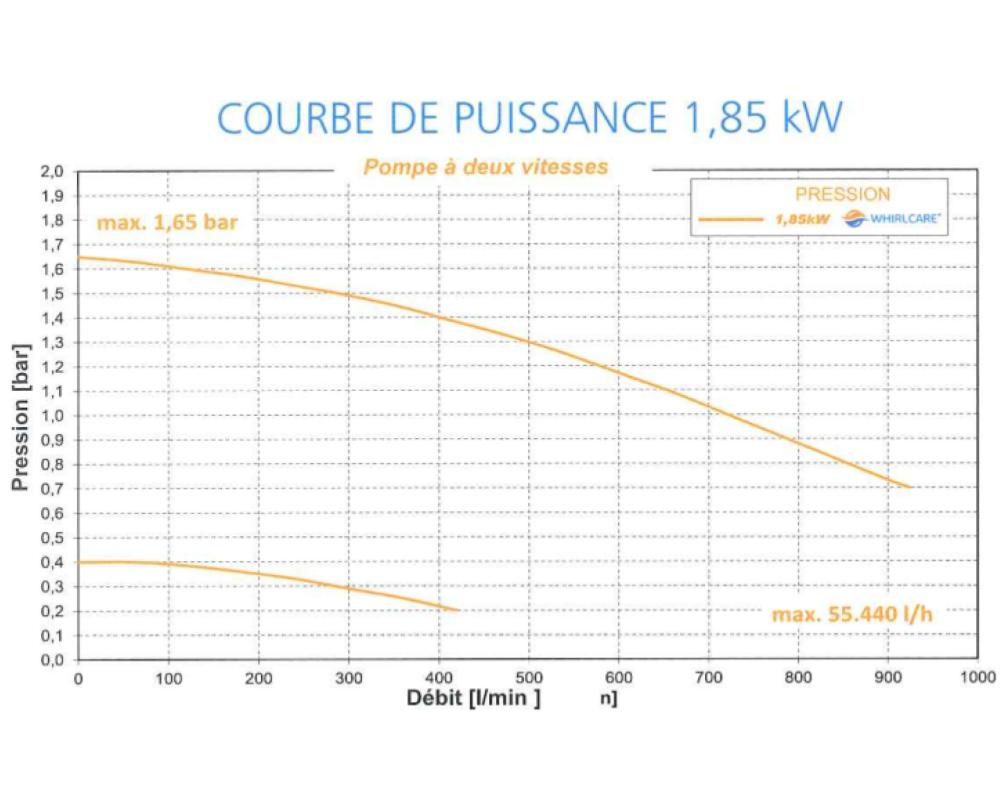

Maximum flow rate: 924 litres/minute or 55.4 m³/hour

Connections
Outflow and intake: male threaded with a 78 mm outside diameter (2-inch MBT).
This pump is normally connected to 2-inch pipes. The pump unions are not included in the price of this pump, but are available as an optional extra.

Cables and plugs
The Whirlcare Hydro Power 2.5 HP two-speed pump is delivered pre-cabled with an AMP plug (length 3 m). You can also choose to have the pump pre-cabled by our team with a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Similar pumps
The Koller 2.5 HP and the LX Whirlpool WP250-II pumps have the same motor power and thread size as the Whirlcare pump, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
Whirlcare: 6311RK000093, 6311 RK 000093
Replaces 6311RK000053
