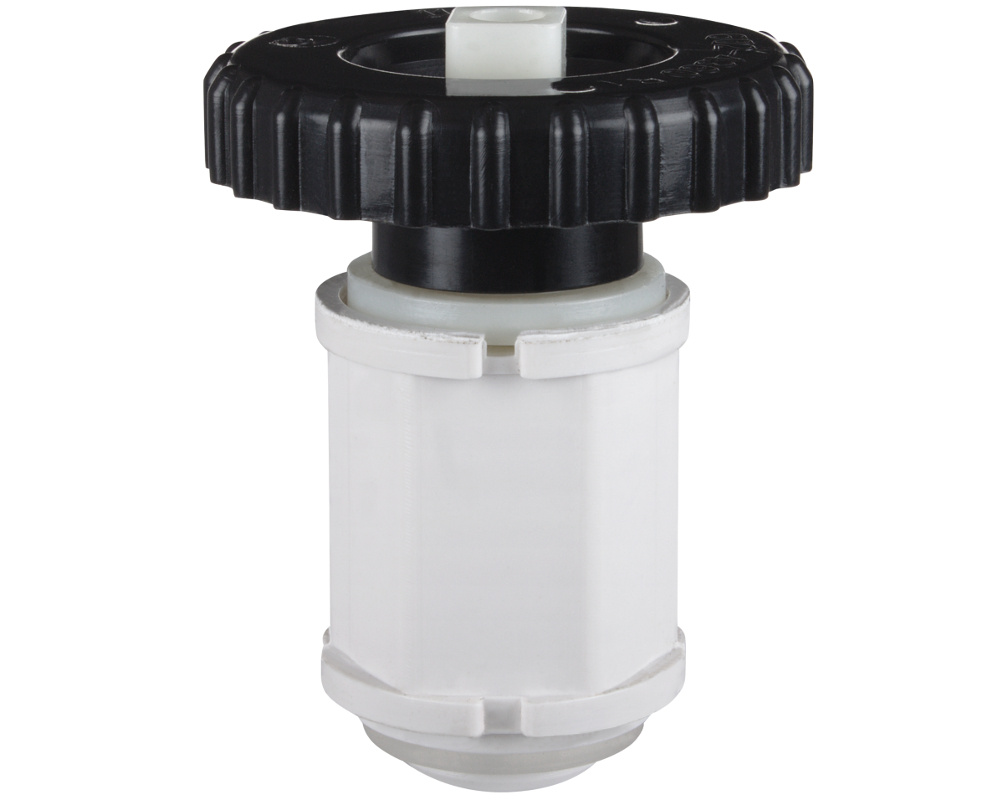

Waterway 1" water control valve gate

This part can be found inside all Waterway on-off top-side valves connected in 1" pipes, regardless of style (round-style and backlit).

This type of valve functions just like a tap, and is typically be used to turn on off fountains, waterfalls and other features above the water line of the hot tub. It's much easier to replace the innards of a valve like this than to replace the entire valve, as no cutting and gluing are required.

The small flat gasket at the bottom of the part is delivered with it, and is also available as a spare part.

We offer valve handles that are compatible with this part.

Dimensions
Length: 71 mm
Outside diameter: 53 mm
Maximum diameter of the white part: 31 mm

Part numbers
Waterway: 605-4370
You may also find the part number 602-4360 on the round cap
Dream Maker Spas : 477330G
