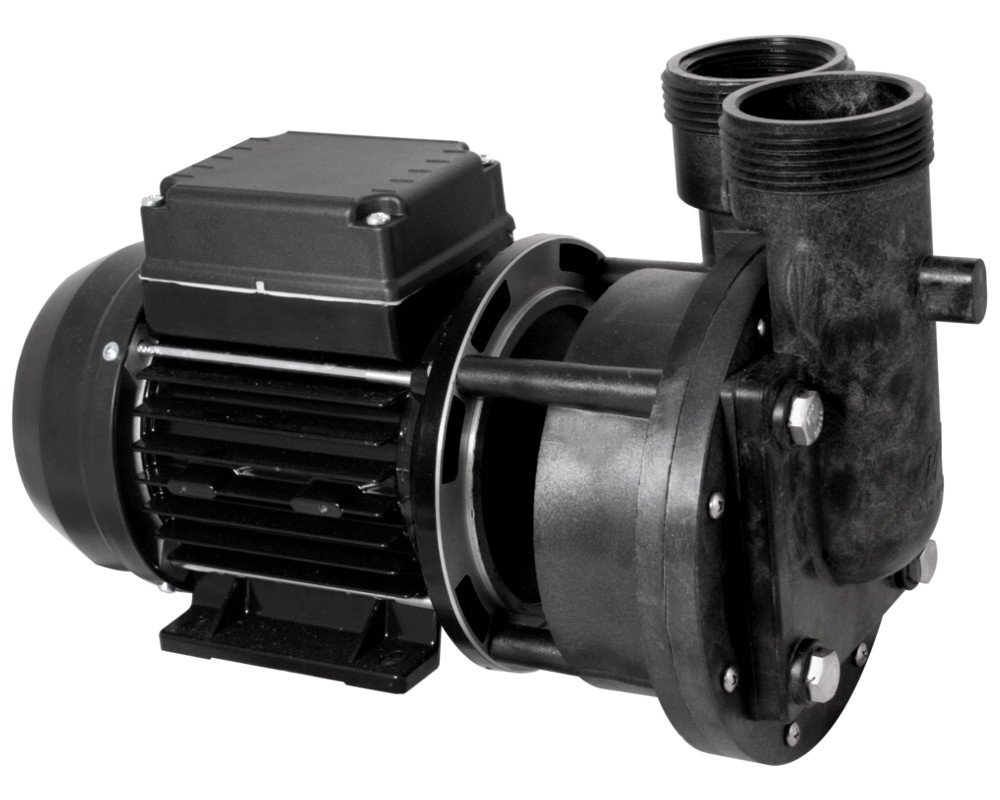

Waterway Uni-Might pump
The Waterway Uni-Might is unusual in that the suction and the return pipes are aligned in the same axis, which makes it easy to install in compact locations. It uses an EMG 63/4 48-Frame motor, just like its cousin, the Iron Might.

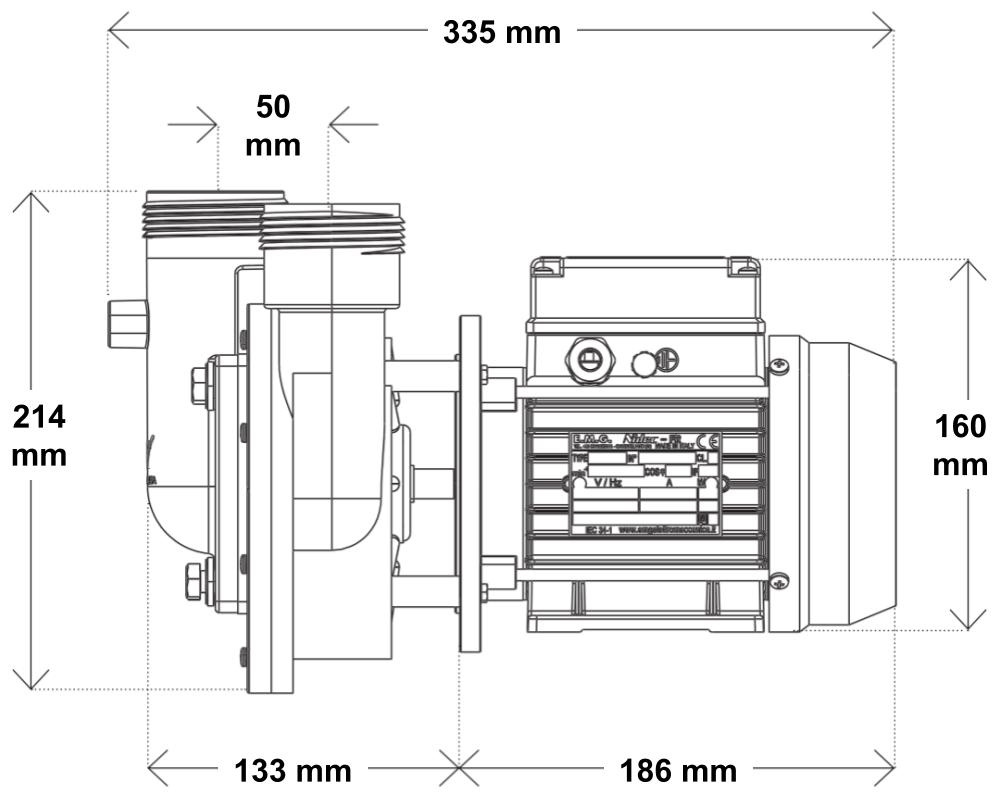

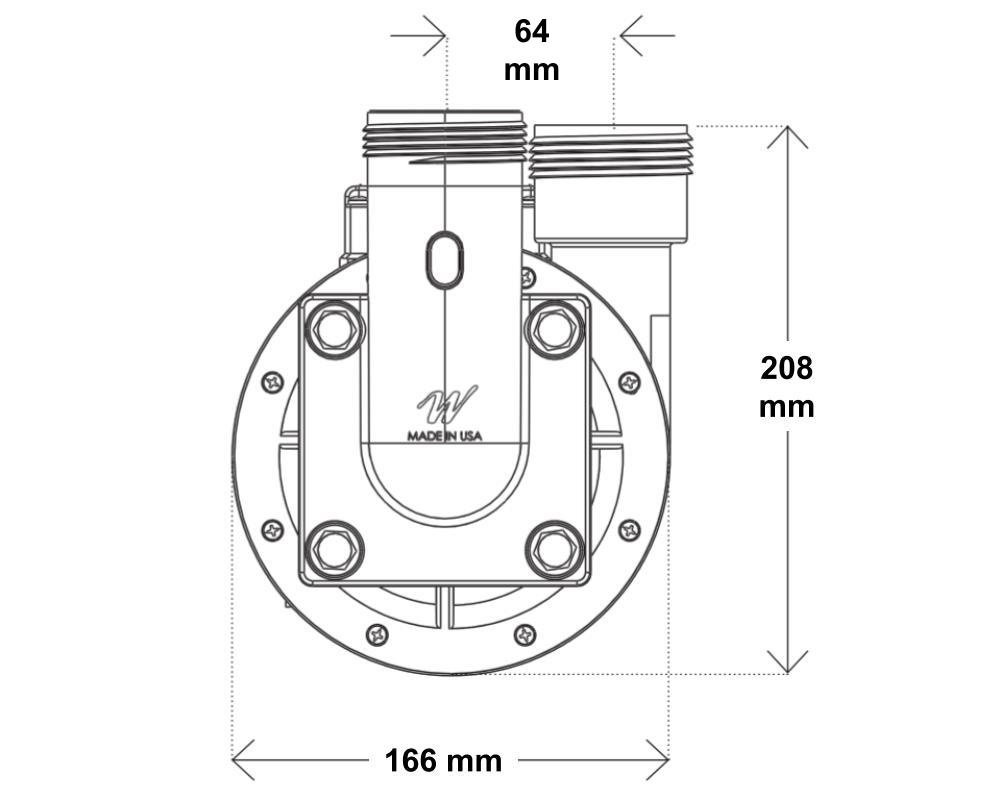

Dimensions
Length: 335 mm
Width: 166 mm
Height: 214 mm
Technical specifications

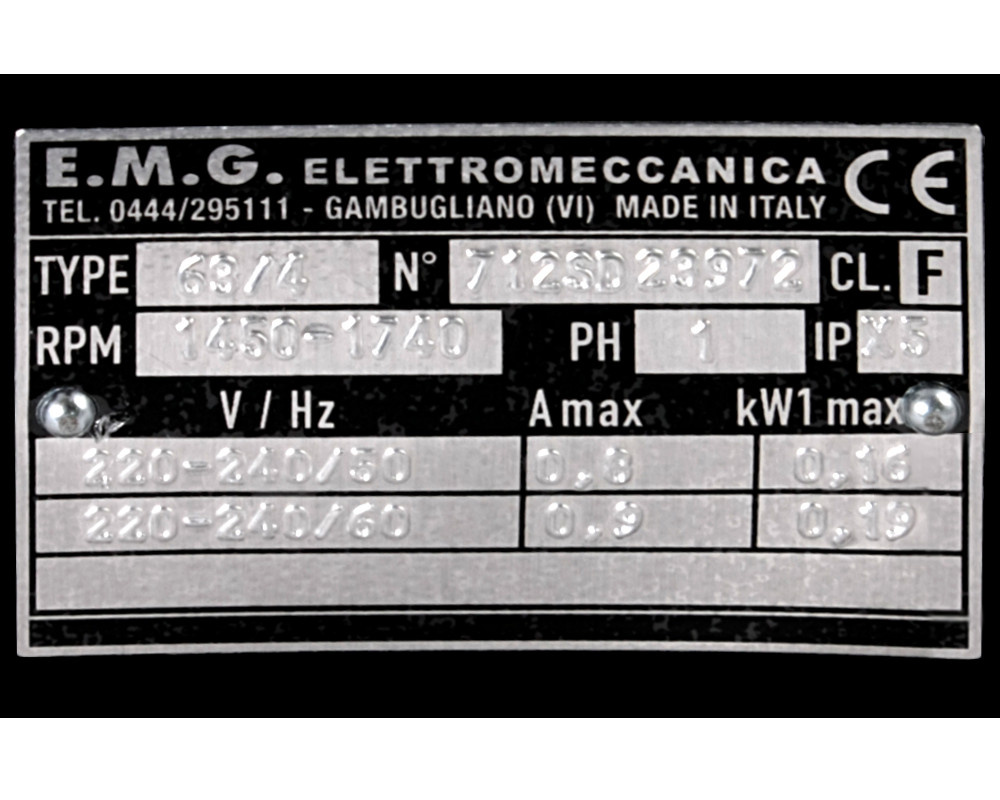

Power: 160 W according to the plate on the motor
1/8 HP according to the Waterway catalogue
Current: 1.6 A
Speed: 1450 rpm

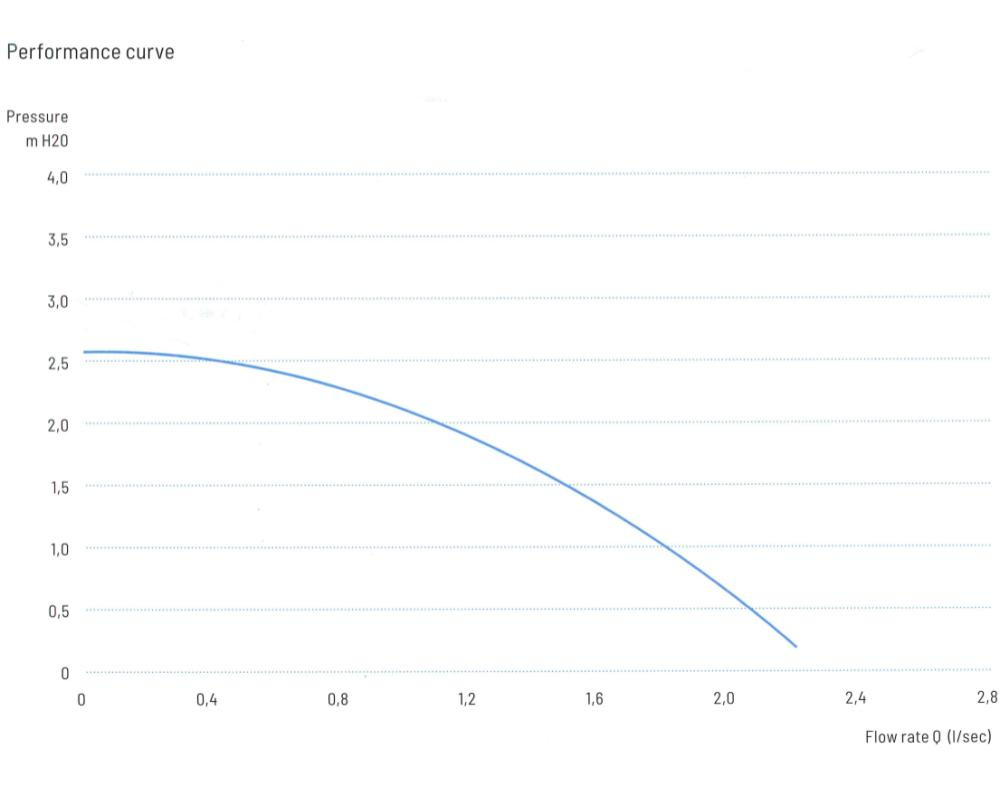

Maximum flow rate: 190 litres/minute
Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT)
We offer unions for 1.5-inch
Cable and plug
The Uni-Might pump is sold without cable. You can also choose to have it pre-cabled with an AMP plug or a mini J&J plug.
Alternatively, if you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.
Warranty
2-year Tubs Parts warranty
Waterway part numbers
Complete pump: 3410020-OX-CE
Wet end: 310-5070
Plug types
AMP plug
J&J plug
in.link plug
