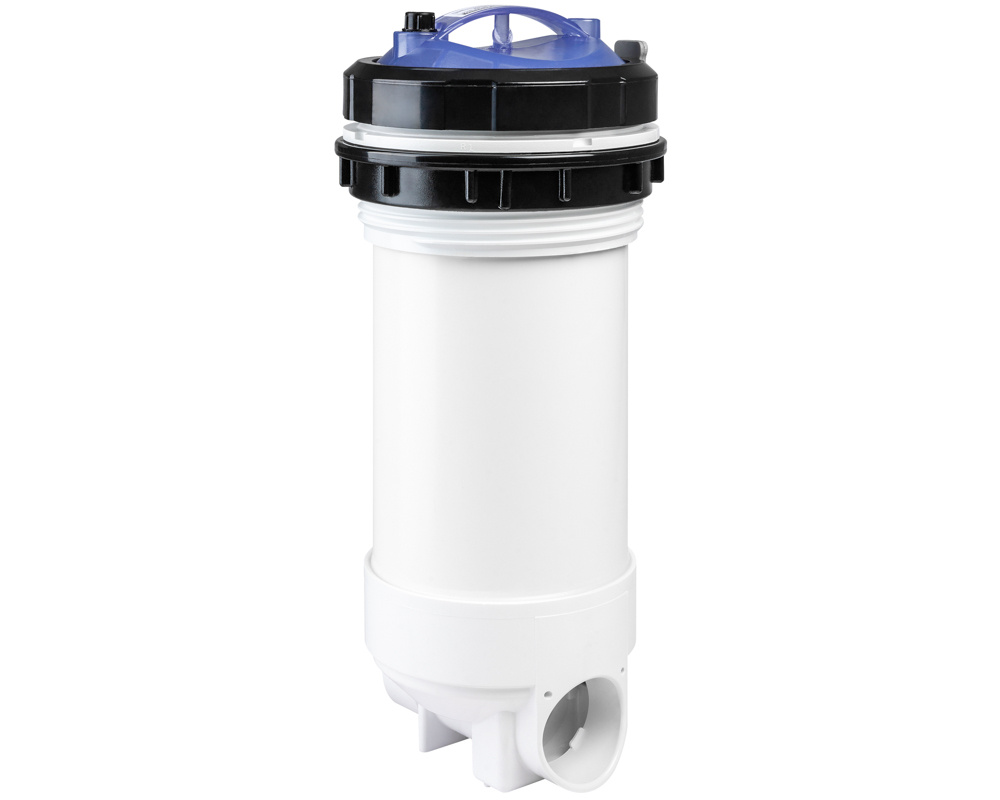

Waterway Top-Load filter with Bypass and brominator

This Waterway Top-Load filter allows you to deport your filtration system from a standard skimmer. It replaces an original Top-Load filter already installed in some portable spas. It can also be installed, for example, close to the ground on a terrace in a wooden spa installation.

If necessary, you can use this filter holder. It is not supplied with the Top Load filter.

This filter is designed to be mounted in such a way that the cartridge can be removed from above (hence the name). It is delivered with a PRB50 type filter cartridge.

This Top Load filter comes with a brominator assembly (loaded with a maximum of 10 tablets of 20 grams). The bromine diffusion speed is adjusted with a rotating disc at the tip of the diffuser.

It also comes with a bypass valve that opens when the water pressure is high, to prevent damage to the filter cartridge. The system makes this filter ideal for spas equipped with a two-speed pump. The water is fully filtered when the pump is running at low speed, but the valve opens to let some of the water pass without filtration when the pump is running at high speed, also preventing pressure from being lost in the massage jets.

Dimensions
Height: 457 mm
Width: 152 mm

Connections
Inner diameter: 60 mm, for 2-inch pipes

Part numbers
Waterway : 502-5050
