Waterway Poly Storm Gunite tee body assembly

In stock
42,00€
incl. 20% VAT
Quantity:
Waterway Poly Storm Gunite tee body assembly - Click to enlarge

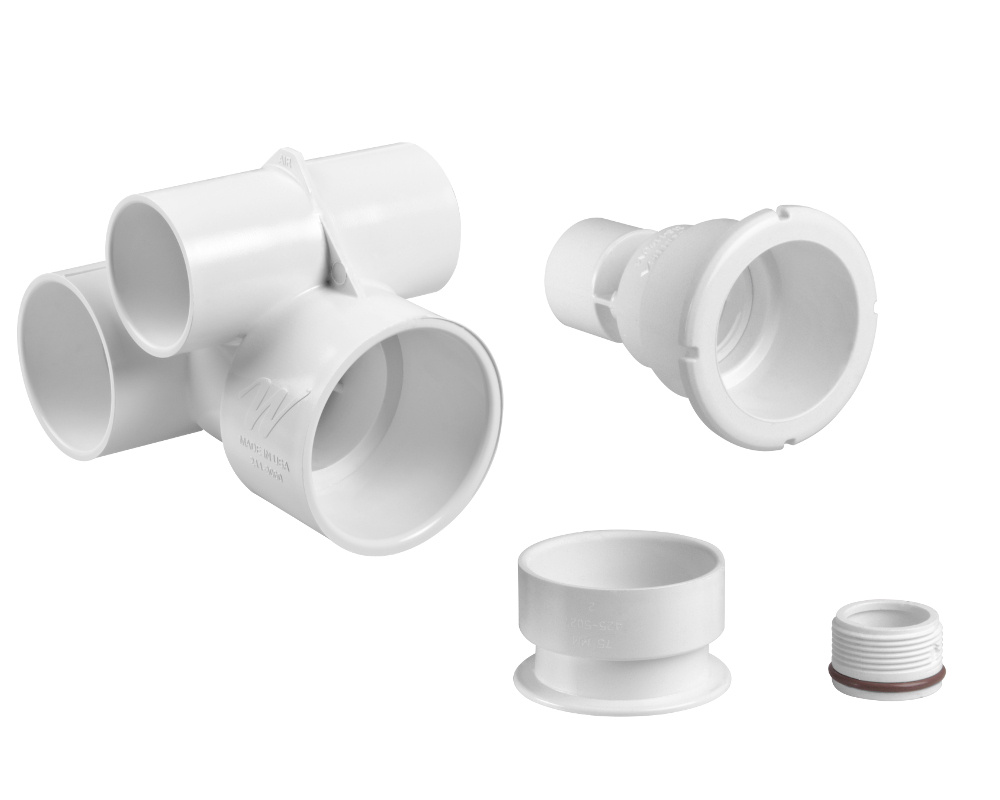

This Waterway Poly Storm Gunite complete straight body assembly, specially designed for concrete spas, includes a tee body, a wall fitting, a threaded retainer ring and a jet niche adapter.

Don't forget to add 2.5" and 1" pipes to your installation !

All in the Poly Storm thread-in jets are compatible with this kit by inserting them into the wall fitting.

Water and air pipe connections
Air : Internal diameter 48 mm, to connect a 1.5" pipe
Water : Internal diameter 60 mm, to connect a 2" pipe

Installation
A 2.5" pipe must connect the straight body to the jet niche adapter and the wall fitting.
A 1" pipe connects the threaded retainer ring screwed to the bottom of the straight body to the wall fitting water inlet.

For more information on designing a concrete spa, see these diagrams.

Part numbers
Waterway : 229-1110
