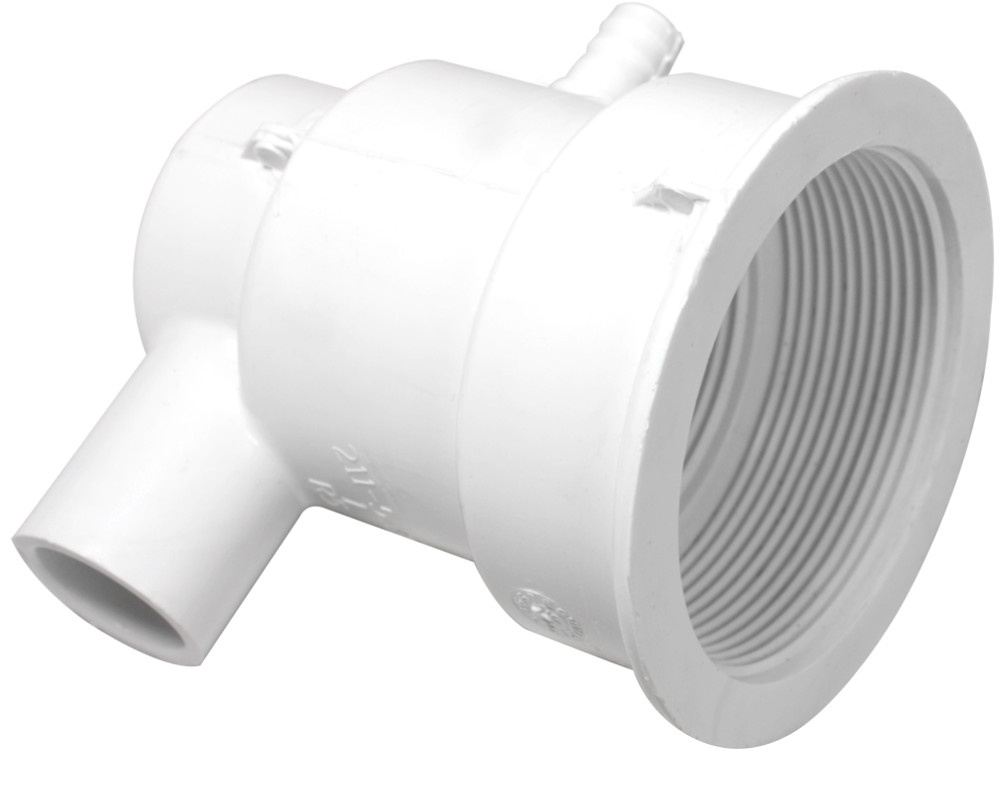

Waterway Poly Jet socket, 3/4" F connection

This socket fits all Waterway Poly Jet spa nozzles. The sleeve attaches to the spa shell, and the nozzle screws into it.

Don't forget to order the gasket separately, as well as an inside part, available in two lengths. With the long version of the inside part, you can install Poly Jets on spa shells with a thickness of up to 31 mm.

The water flow through the sleeve draws air through the venturi effect, which adds bubbles to the water jet and increases the power of the massage. The air inlet of each jet is normally connected to a common manifold, and then to a valve, so that the air/water mixture in the jets can be changed. If you do not want bubbles in the water jets, plug the air inlet with this cap.

This socket is also available with a 3/4" M+ water connection.

Dimensions
Hole diameter: 66 mm
Length: 101 mm
Inside thread diameter: 63 mm
Face diameter: 82 mm
Maximum wall thickness: 15 mm with standard wall feed-through, 31 mm with extended version

Pipes to be connected
Water: Inside diameter 27 mm, for 3/4 inch hose
Air: Outside diameter 10.6 mm, for 3/8 inch hose

Part numbers
Waterway: 210-5910
