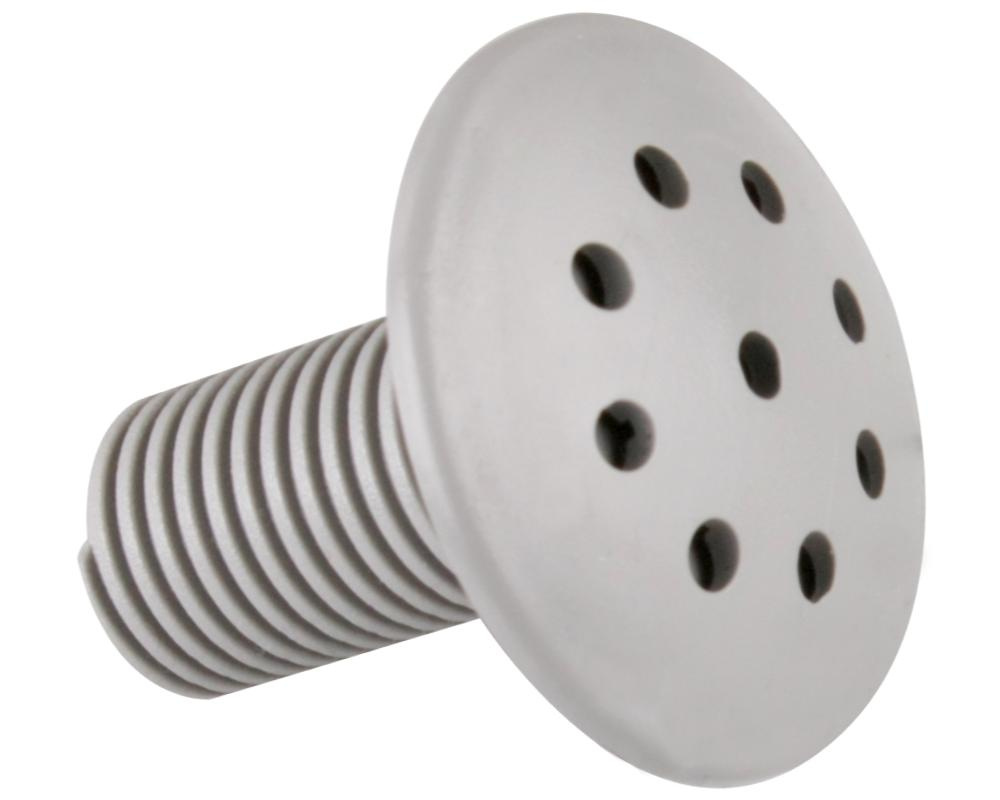

Waterway Multi-Body air injector

This grey Waterway air injection jet is used in many spa models.

This air jet comes complete with a flat gasket and a nut, plus three adaptors of different shapes (use the one which works best for your spa - you only need one adaptor per jet). We also recommend the use of neutral silicone (without aggressive solvents) on the wall fitting as well as on the threads to ensure a complete seal.

Connect this jet to a manifold using 3/8-inch flexible pipe.

Dimensions
Diameter of the hole to drill in the spa: 15 mm
Maximum shell thickness : 20 mm
Air pipe connection: 3/8" male (10 mm outside diameter)
Diameter of the jet face: 35 mm
Length (jet only): 36 mm
Length (jet + elbow connector): 50 mm

Waterway part numebrs
White: 670-2600
Grey: 670-2607
