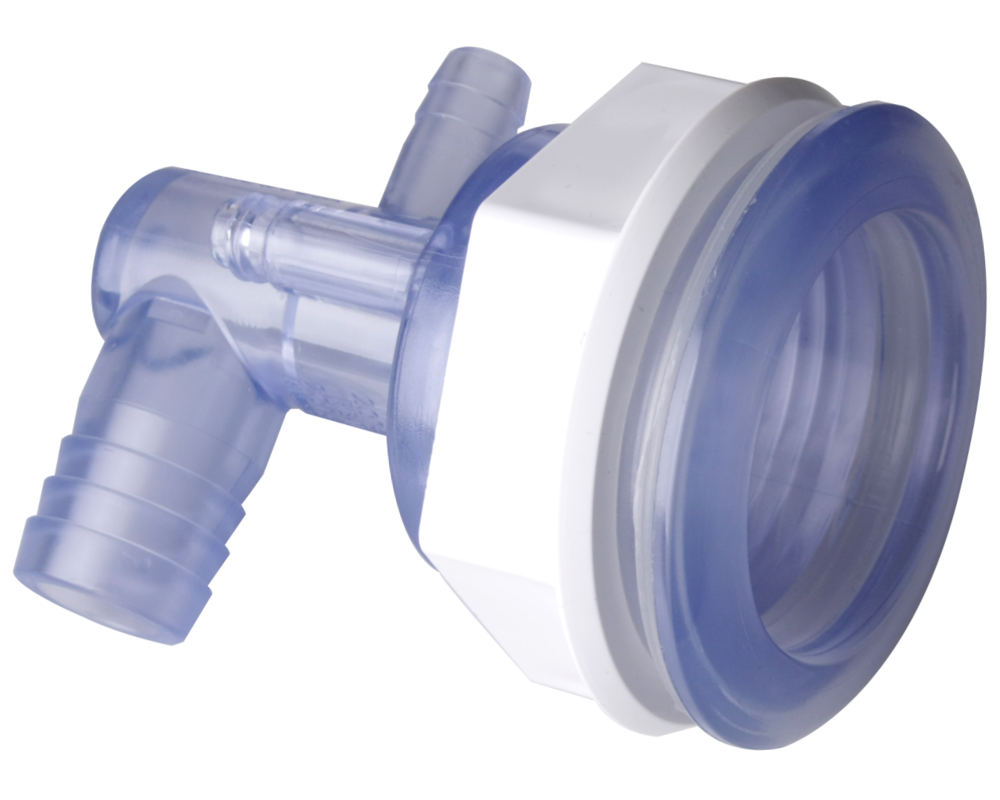

Waterway Mini Storm thread-in socket

This socket is designed for the new generation of Waterway Mini Storm thread-in jets. It is not suitable for snap-in jets, for which the old model must be used.

It is attached to the spa shell and the jet is screwed in. The fixing nut and the gasket are supplied with the sleeve.

The water flow through the socket draws in air through the Venturi effect, which adds bubbles to the water jet and increases the power of the massage. The air inlet of each nozzle is normally connected to a manifold, and then to a valve, so that the air/water mixture in the jets can be modified. If you do not want bubbles in the water jets, block the air inlet with this cap.

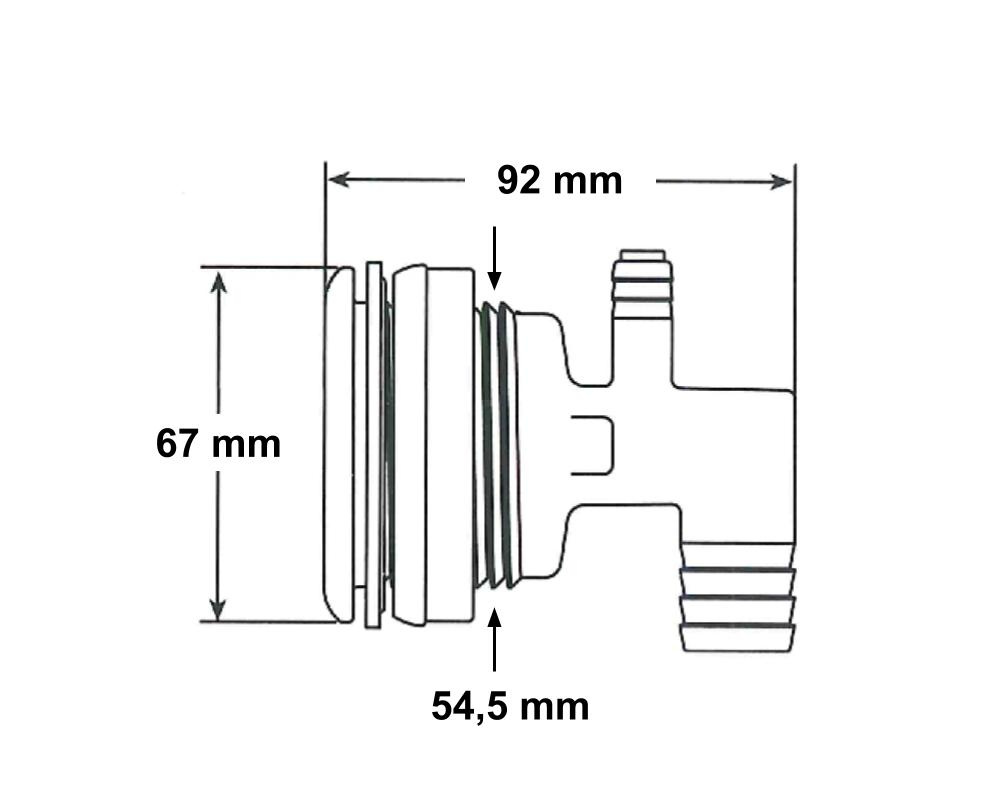

Dimensions
Inner diameter: 46 mm
Outside diameter: 67 mm
Length: 92 mm
Outside thread diameter: 55 mm

The diameter of the hole in the spa shell depends on the outside diameter of the thread. For a Mini Storm socket, it will be 55 mm if you use the flat gasket (provided) and 58 mm for the use of the "U" gasket.

Hoses to be connected
Water: 3/4-inch pipe
Air: 3/8-inch pipe

Part numbers
Waterway : 228-0308
Sunrise Spas : R3035401
You may also find references 201-6820 and 201-6870.
