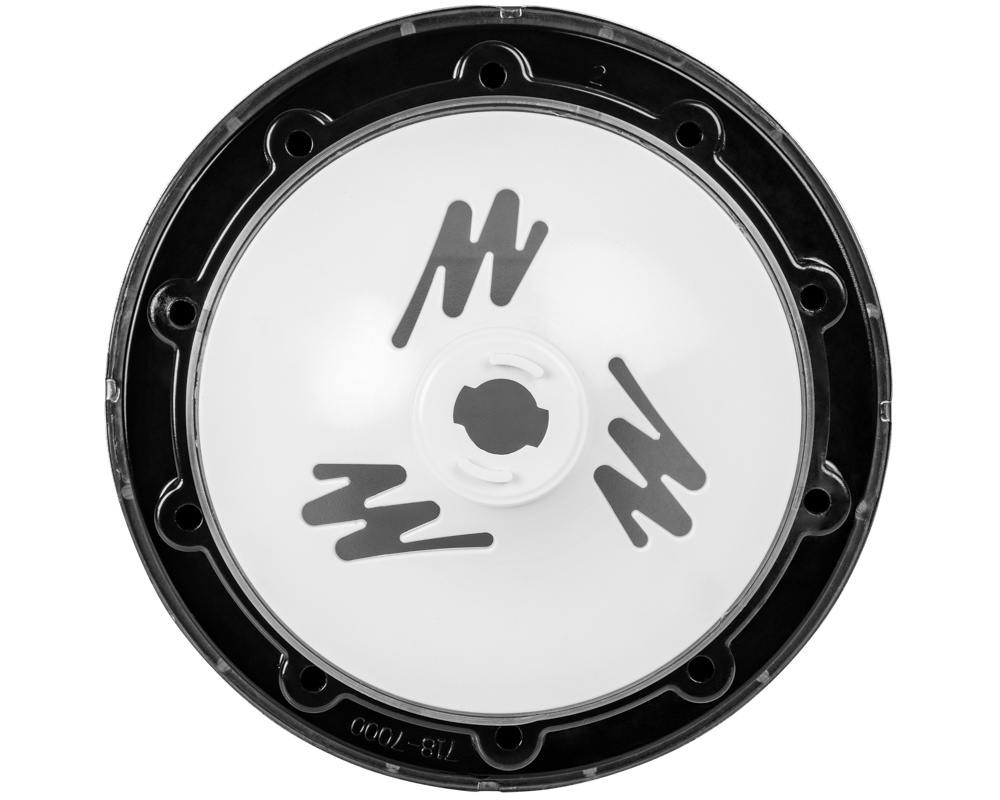

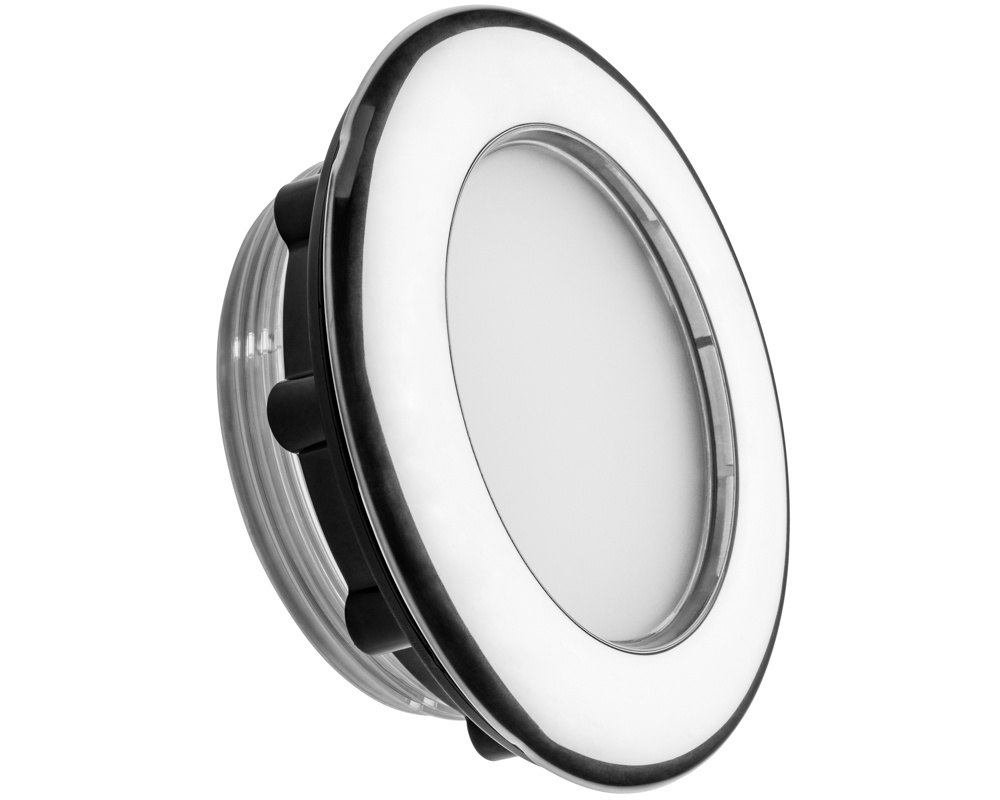

Waterway Jumbo XL 7.5-inch light assembly

This Waterway Jumbo XL 7” waterproof spotlight mounts in the shell of your spa. It is used in particular on Dynasty Spas.

The kit contains the spotlight, nut, gasket and plastic base to hold the socket in place. Remember to buy the socket and bulb separately, if required.

Dimensions
Diameter of the face: 193 mm
Diameter of the hole in the spa shell: 145 mm
Internal diameter : 56 mm
Length : 92 mm
Maximum bulb diameter : 78 mm

Compatible bulbs
12W bulb, STARburst 10, STARburst 28, SloanLED UltraBRITE-mini, Balboa MoodEFX, String Lights master light and slave light, Rising Dragon 28 LEDs

Part numbers
Waterway : 630-6058S
Dynasty Spas : 11306
