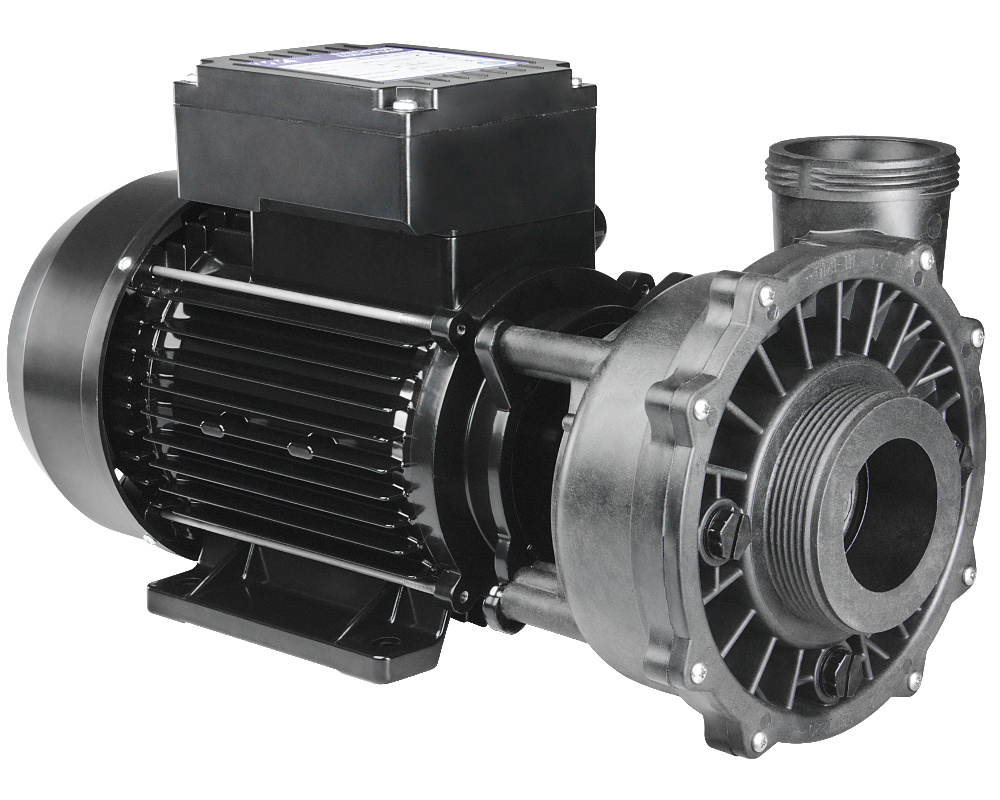

Waterway Executive 2-speed pump

The popular Waterway Executive Euro two-speed pump is quiet and efficient. It has two speeds of operation: the low speed operates the filtration of the spa, and the high speed powers the massage jets. It has an Italian-made water-resistant EMG motor.

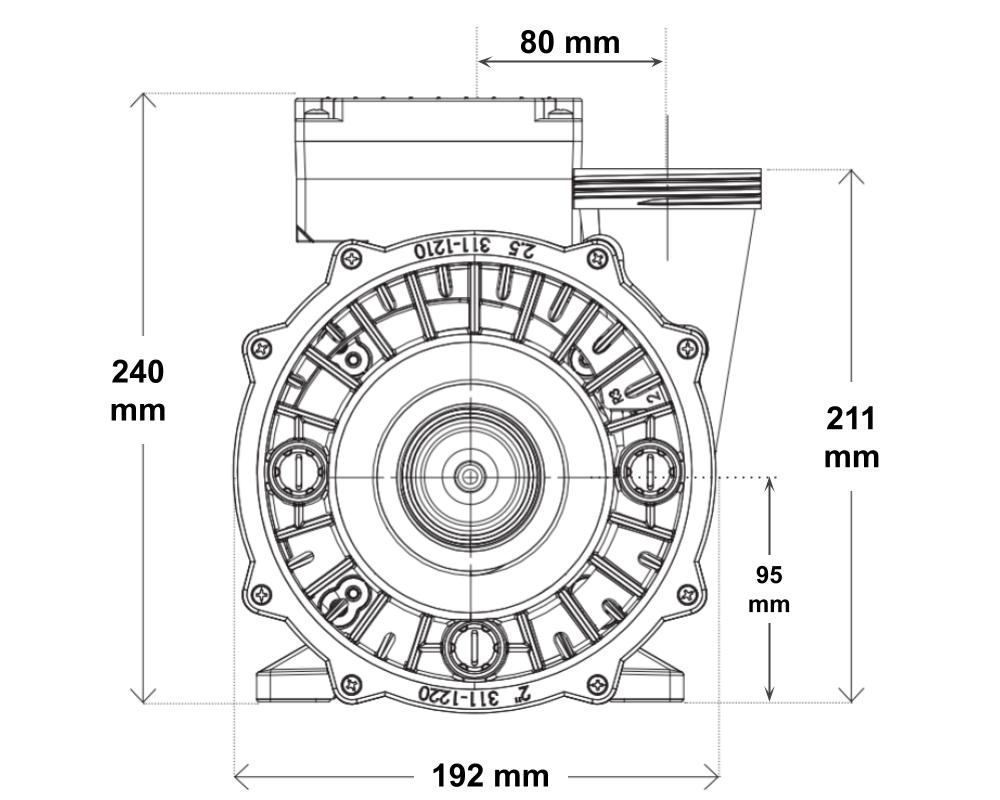

Dimensions
Length: 435 mm
Width: 210 mm
Height: 240 mm

Technical specifications
The Waterway Executive Euro pump is available in three power ratings:

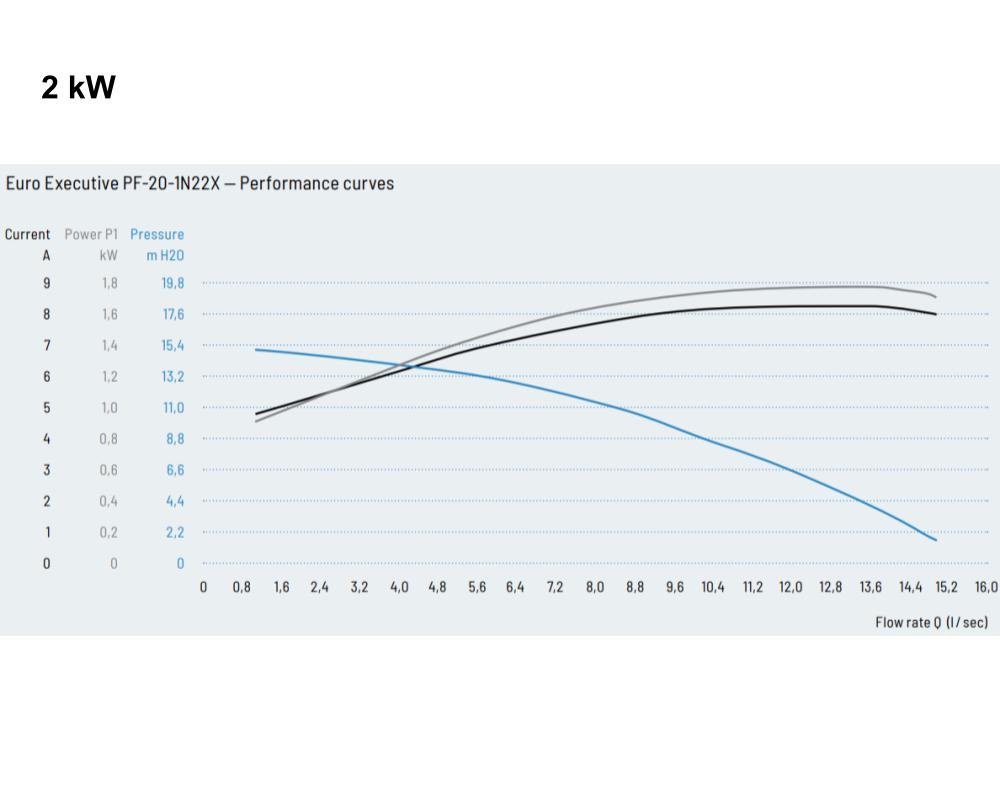

• 2 kW high speed / 0,36 kW low speed

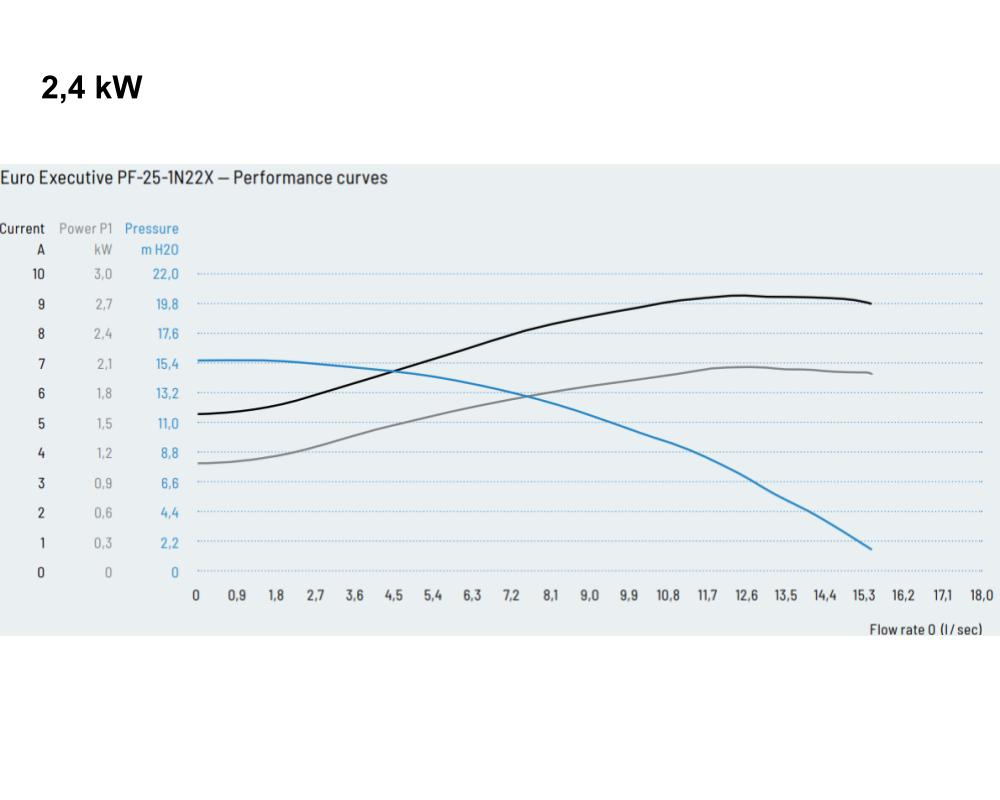

• 2,4 kW high speed / 0,43 kW low speed

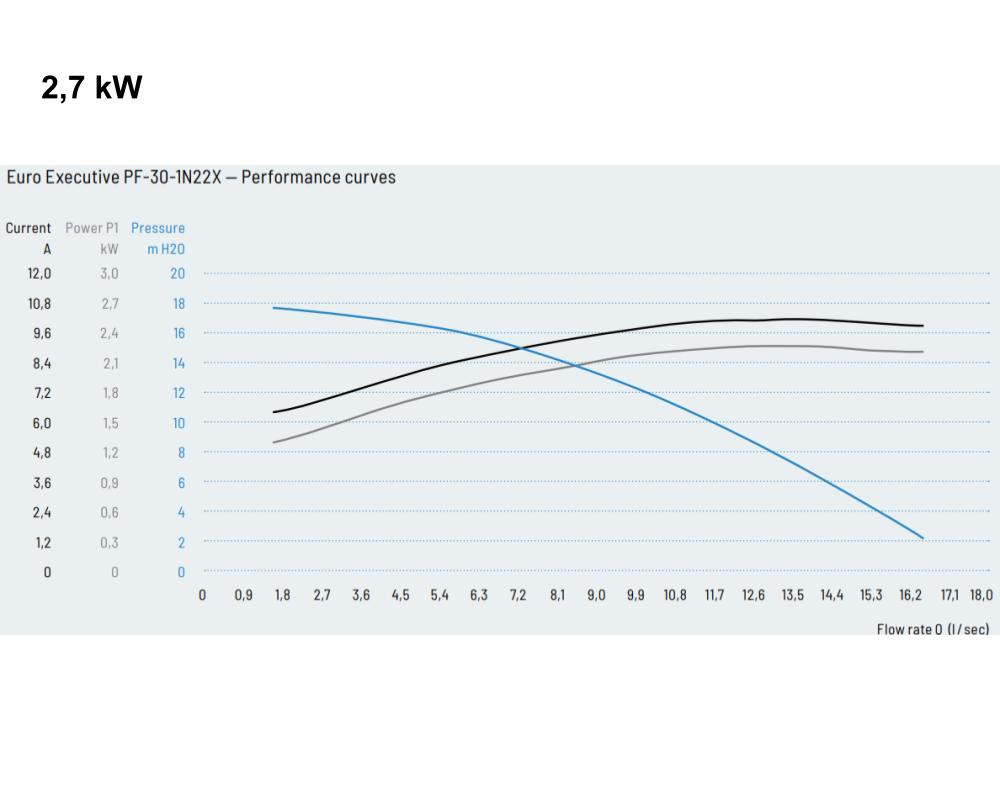

• 2,7 kW high speed / 0,55 kW low speed

Connections
Outflow: male thread with a 78 mm outside diameter.
Intake: male thread with an outside diameter of either 78 mm or 94 mm.
The pump is usually connected to 2-inch pipe.

Cable and plug
The Waterway Executive pump is normally delivered without a cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

We can also pre-cable the pump with an AMP or a mini J&J plug. An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Spare parts
We offer a wide range of spare parts for the Waterway Executive Euro pump.

Warranty
2-year Tubs Parts warranty

Waterway part numbers
2 kW / 78 mm: PF-20-2N22X (replaces 3R20850-0D)
2 kW / 94 mm: PF-20-2N22X25

2,4 kW / 78 mm: PF-25-2N22X (replaces PF52N22X)
2,4 kW / 94 mm: PF-25-2N22X25

2,7 kW / 78 mm: PF-30-2N22X (replaces 3R21050-0D, PF-52-2N25X and PF-30-2N22C)
2,7 kW / 94 mm: PF-30-2N22X25

Other part numbers
Beachcomber: Master Massage XLT
