US Seal PS-200 wet end seal
Available in 2 weeks
12,90€
incl. 20% VAT

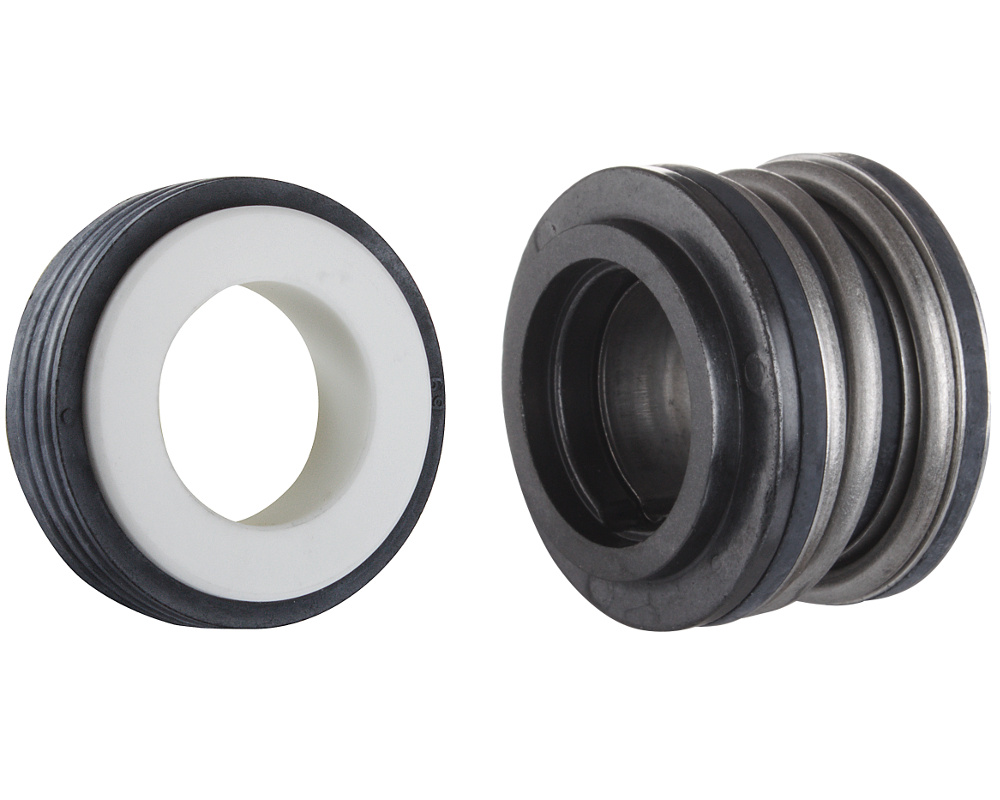

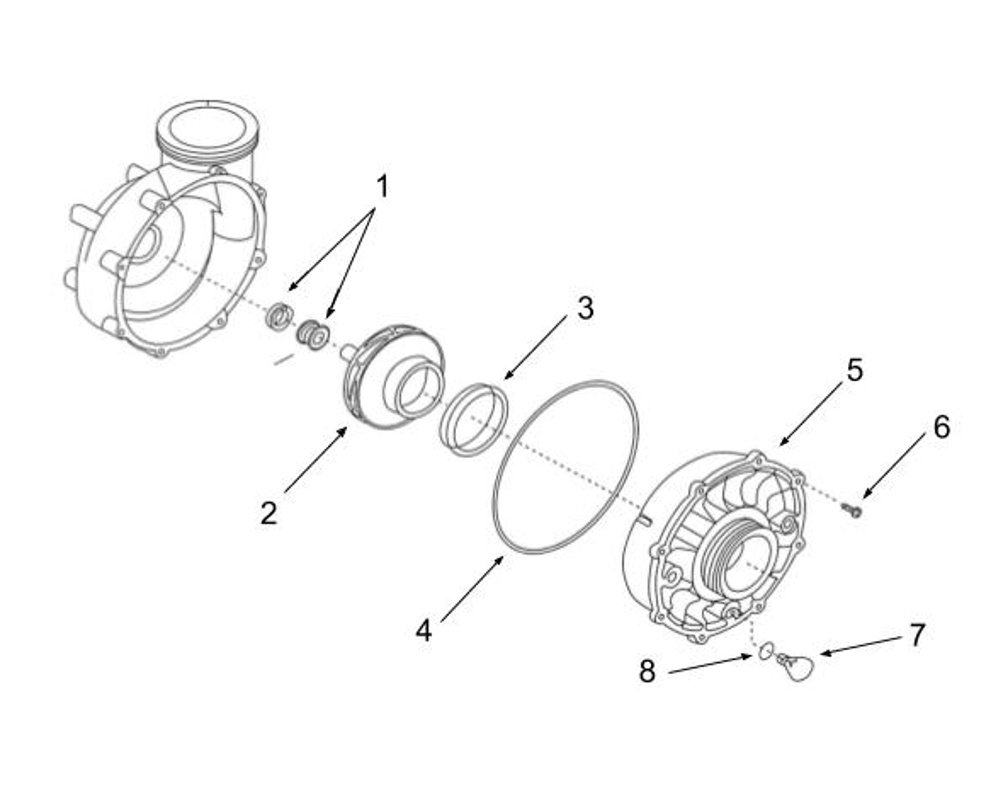

This pump seal ensures that water doesn't leak out of the pump wet end, along the motor spindle. Replace this part if your Aqua-Flo leaks there! It comes in two parts: a metal part, containing a spring, that mounts behind the impeller, and a ceramic ring that sits in a rubber gasket, and slots in to the volute.

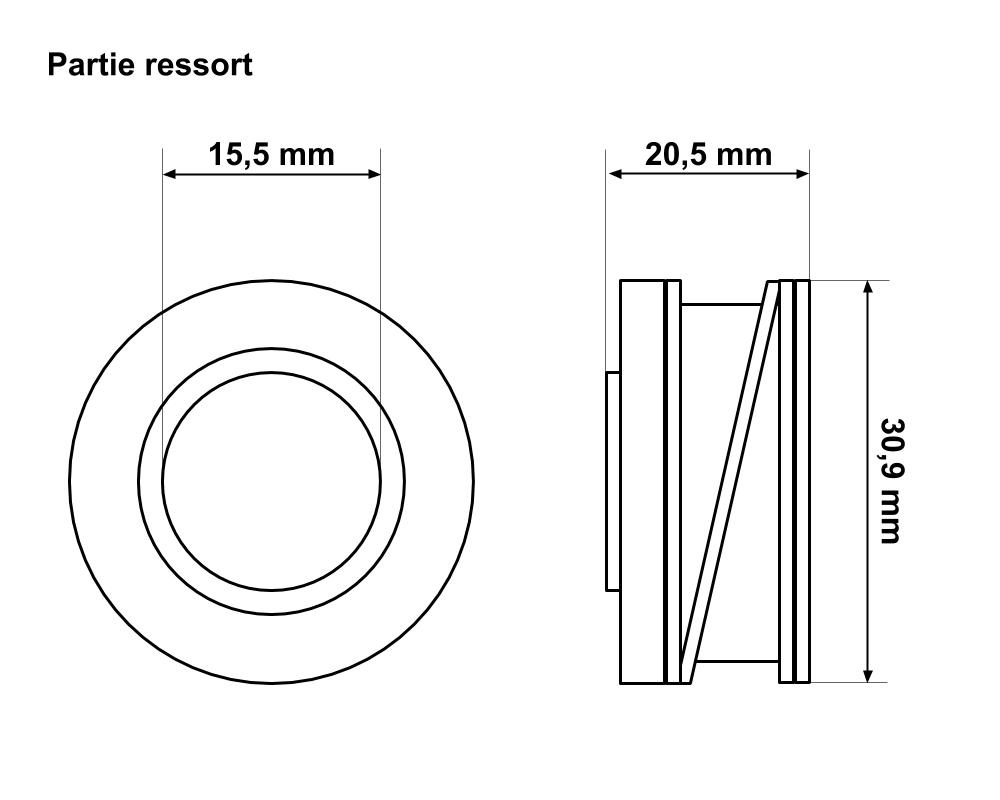

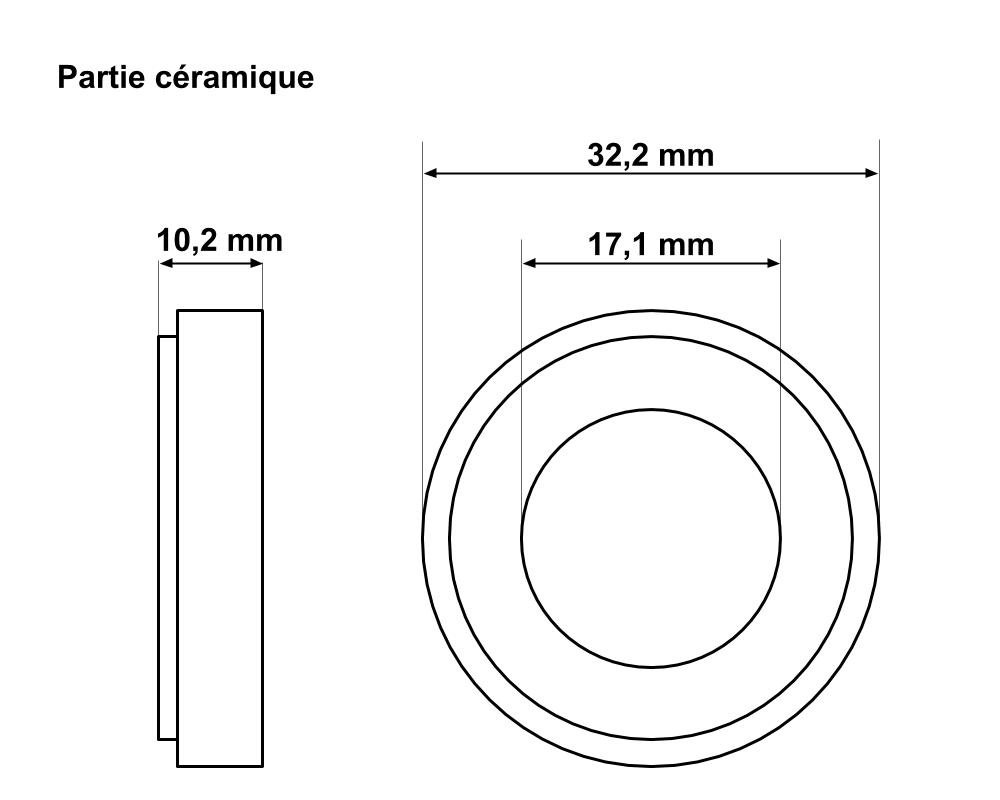

Dimensions
| Ceramic ring | Spring | |
| Ø Exterior | 32.2 | 30.9 |
| Ø Interior | 17.1 | 15.5 |
| Thickness | 10.2 | 20.5 |
Compatibility
- Aqua-Flo XP2, XP2e and XP3 (single and two-speed)
- Aqua-Flo Circ-Master CP, HP and XP, and Flo-Master
- Maelstrom single and two-speed
- Sundance Theramax / Theraflo
- Many Jacuzzi pumps (Cygnet, Magnum, Vector, RC-Series, among others).
Part numbers
US Seal : PS-200
Gecko / Aqua-Flo : 92500150, 92500151, 92500171
Sundance : 6500-446, 6500-447 et 6500-281
Jacuzzi : 10-0002-06 ou 10-1436-00
Dimension One : 01512-29
Sta-Rite : 17304-0100S, 17304-0105
Sunrise Spas : WTY50017
