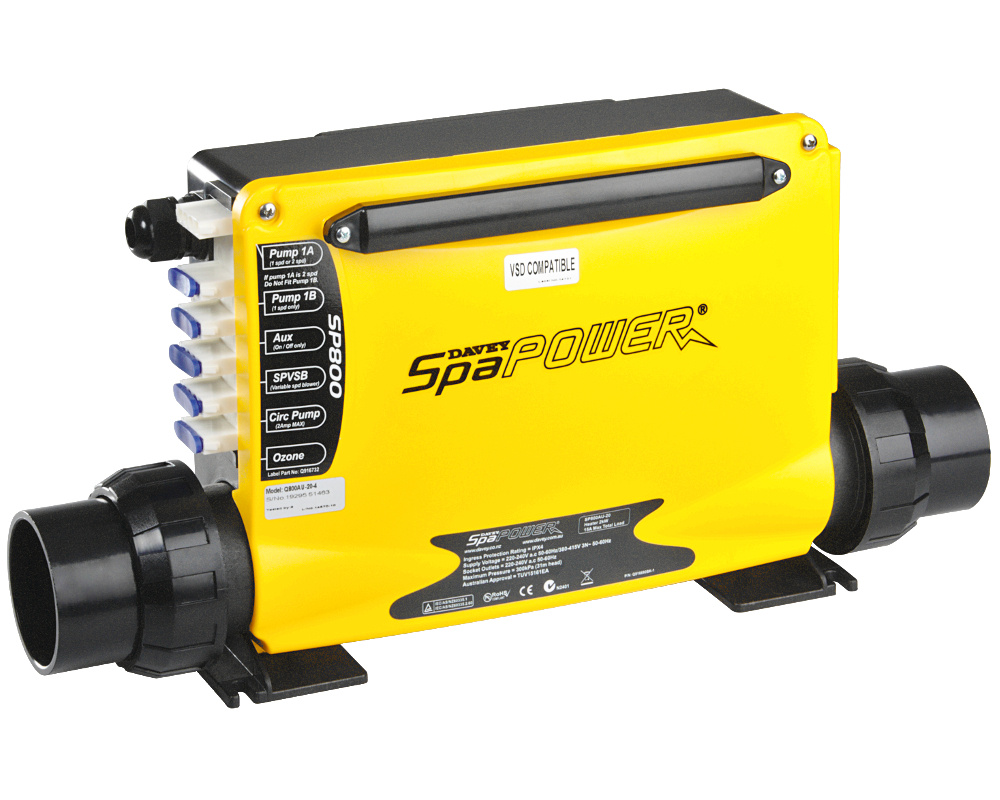

SpaPower SP800 control system

The SP800 hot tub control system comes with an built-in 2 kW heater, and can control:

• A circulation pump
• Two single-speed pumps
• A blower, which can be variable speed
• Additional equipment (single-speed massage pump or blower) on Aux.
• An ozonator
• A light

Use AMP plugs to connect each component to the side of the control system box.

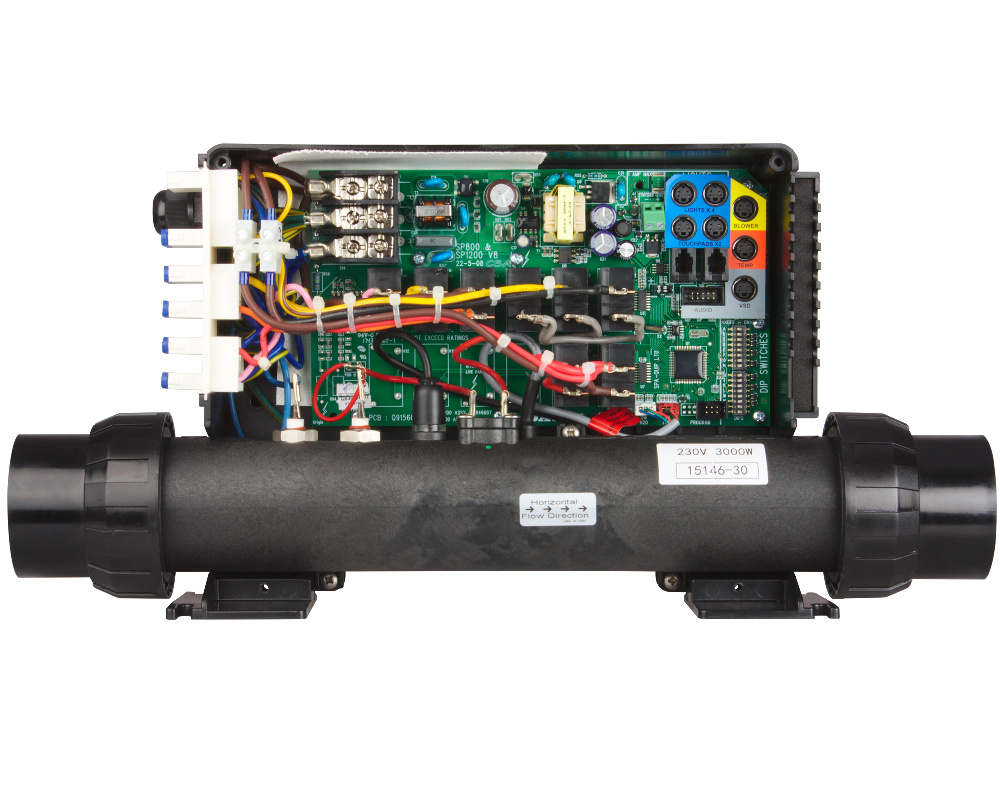

The motherboard, heater and temperature sensor for this system are available as spare parts.

Compatible keypads
You must use an SP800 keypad

Dimensions
Height: 220 mm
Width of box, excluding the heater: 305 mm
Heater length: 355 mm, without the pump unions
Depth: 90 mm
Plumbing connections to heater: 2"

Warranty
2-year Tubs Parts warranty

Davey part numbers
System with 2 kW heater: Q800AUS-20
System with 3 kW heater: Q800AUS-30
2 kW heater alone: Q80062T
3 kW heater alone: Q80067T
