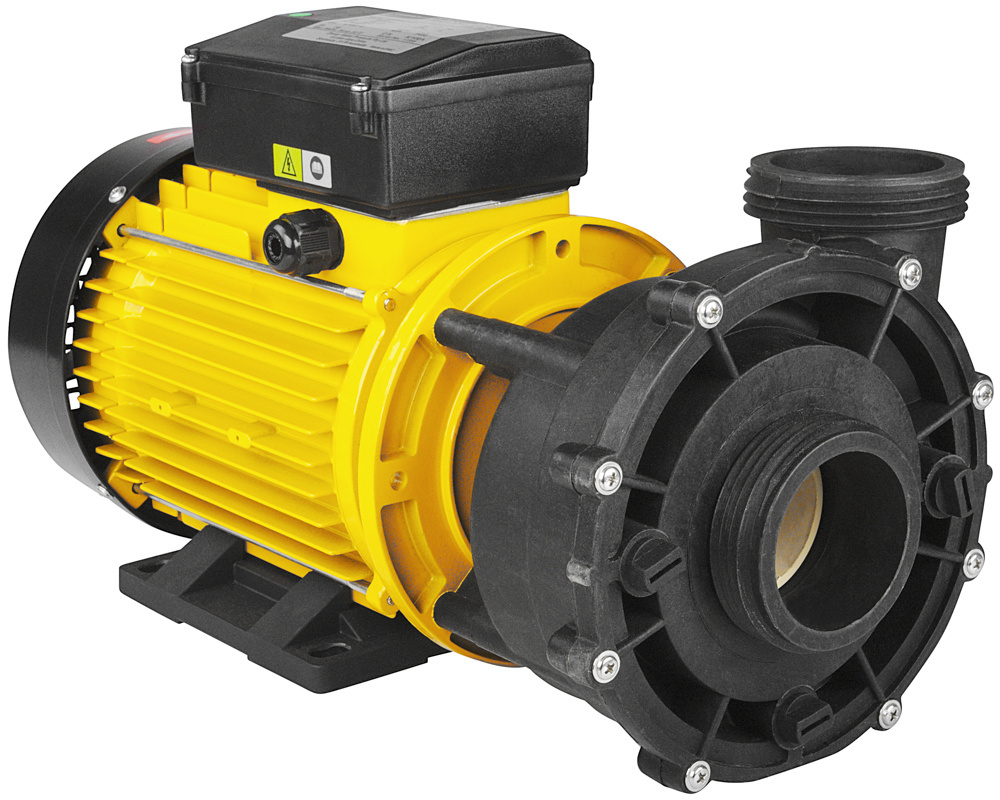

SpaPower Maxiflow 2-speed pump

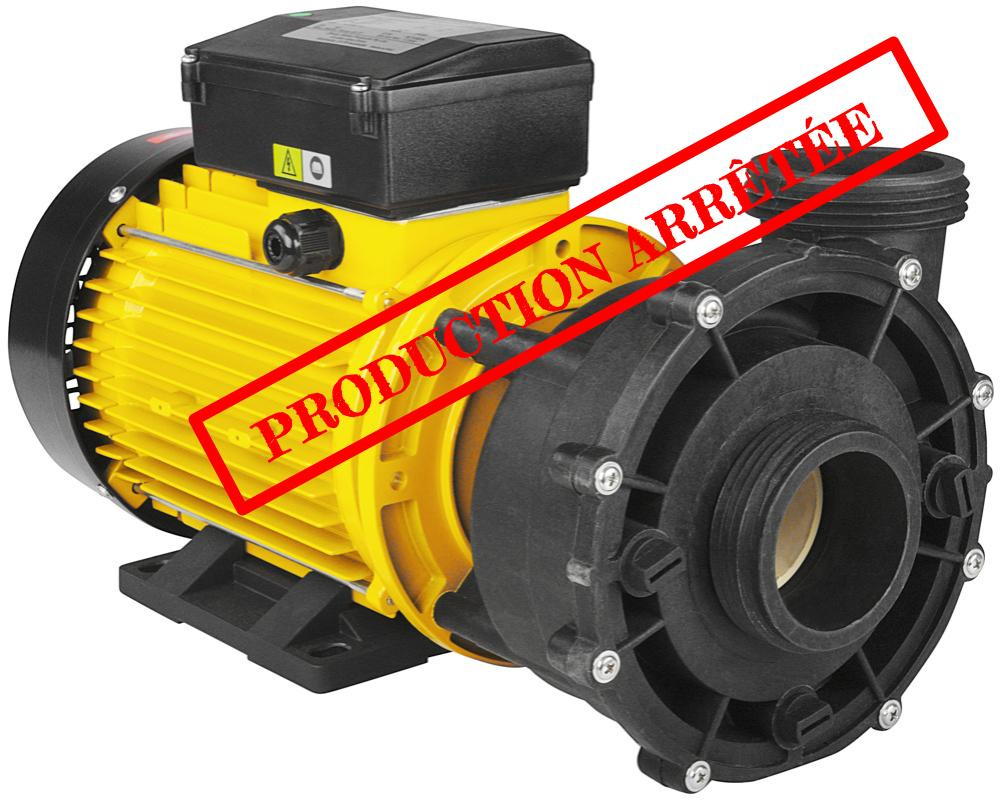

We no longer offer the SpaPower Maxiflow two-speed pump for sale. The motors are made by LX Whirlpool, so the WP series are good substitutes for this pump in terms of performance. However, the unions are not compatible, so replacing these with a WP series would mean cutting and gluing some pipe to change the pump unions to standard 2" ones.

The Spa Power two-speed pump is used in Monarch, Spa France (Procopi) and Sapphire (DSpa) hot tubs.

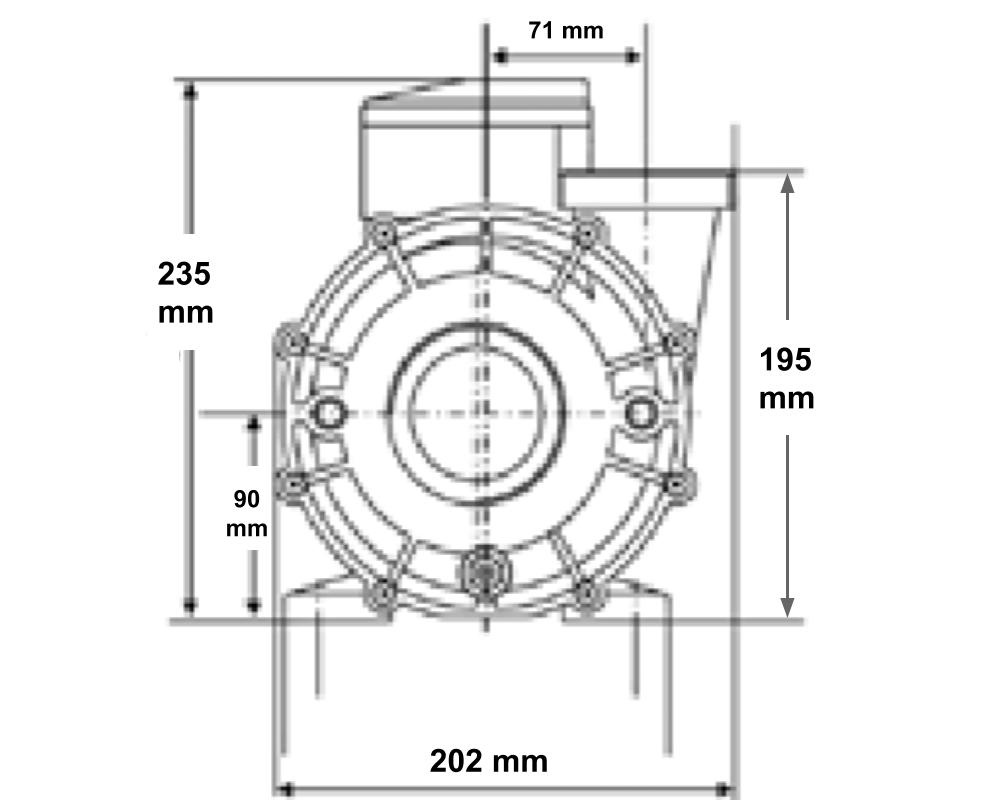

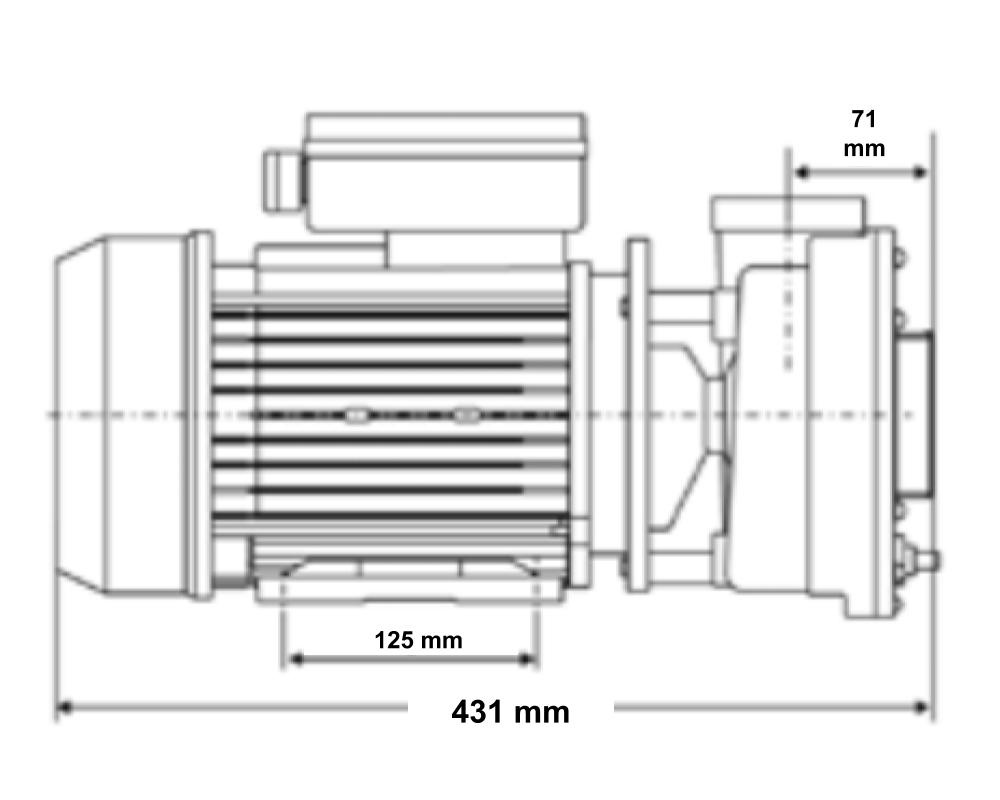

Dimensions
Length: 431 mm
Width: 202 mm
Height: 235 mm

Pipe connections
This pump can only be connected using pump unions for 2-inch pipes by the brand Davey.

Technical specifications
This SpaPower Maxiflow pump is available in two power ratings

2,5 HP: 1,85 kW high speed (0,40 kW low speed) / Current 8.6 A (2.8 A)
3,0 HP: 2,2 kW high speed (0,45 kW low speed) / Current 10 A (3,2 A)

Cable and plug
This pump is delivered pre-cabled with an AMP plug (length 280 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug or an in.link plug (length 100 cm).

Capacitors
(just in case you need to replace one)
2.5 HP: 40µF

Part numbers
2,5 HP: QB2502-AMP
3,0 HP: QB3002-AMP
