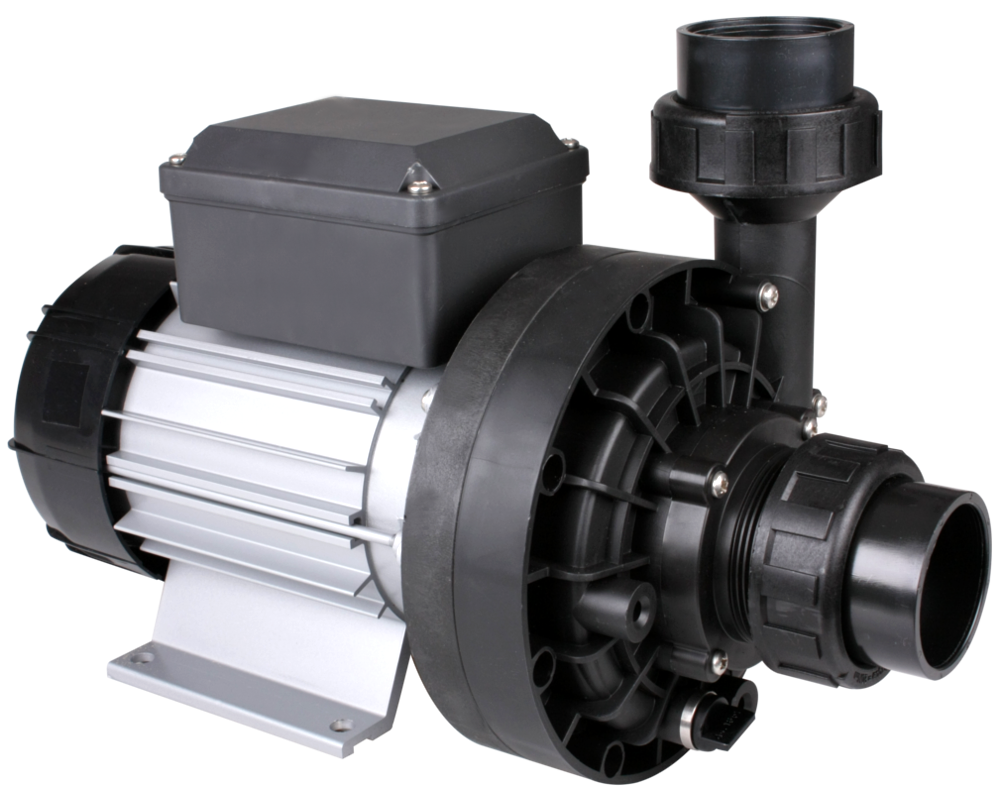

SIREM PBL1C80K1B single-speed pump

This PBL1C80K1B single-speed pump is used for massage jets, but also in swimming pools.

This model replaces the similarly powerful and slightly smaller PB1C80K1B.

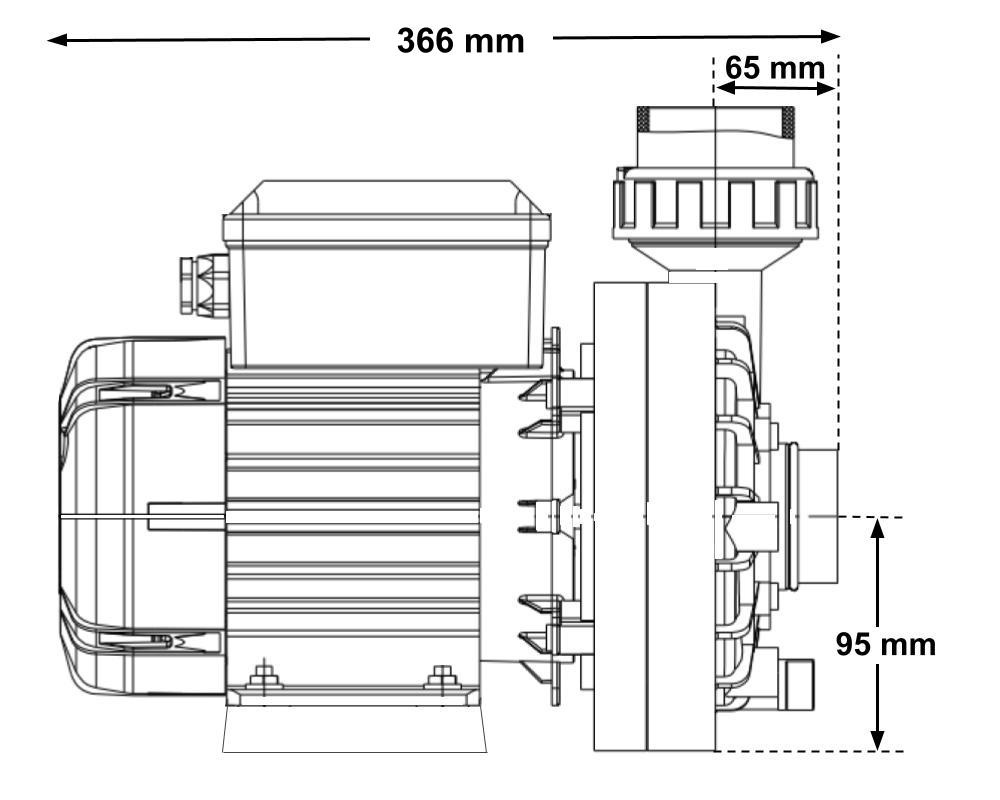

Dimensions (without fittings)
Length: 366 mm
Width: 180 mm
Height: 207 mm

Technical specifications
Power: 1.35 kW (1.6 HP)
Maximum flow rate: 26m3/h

Connections
Suction and discharge: male thread, 65 mm diameter
The unions are not supplied with the pump. The suction and discharge parts are connected to a 50 mm pipe.

Cable and plug
This SIREM PBL1C80K1B pump is delivered pre-cabled without plug (length 150 cm). If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.

An in.link plug (220 cm long) is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Spare parts
We offer some spare parts for this pump: the wet end seal, the fan wheel or the pump unions

Warranty
2-year Tubs Parts warranty

Part numbers
SIREM : PBL1C80K1B
