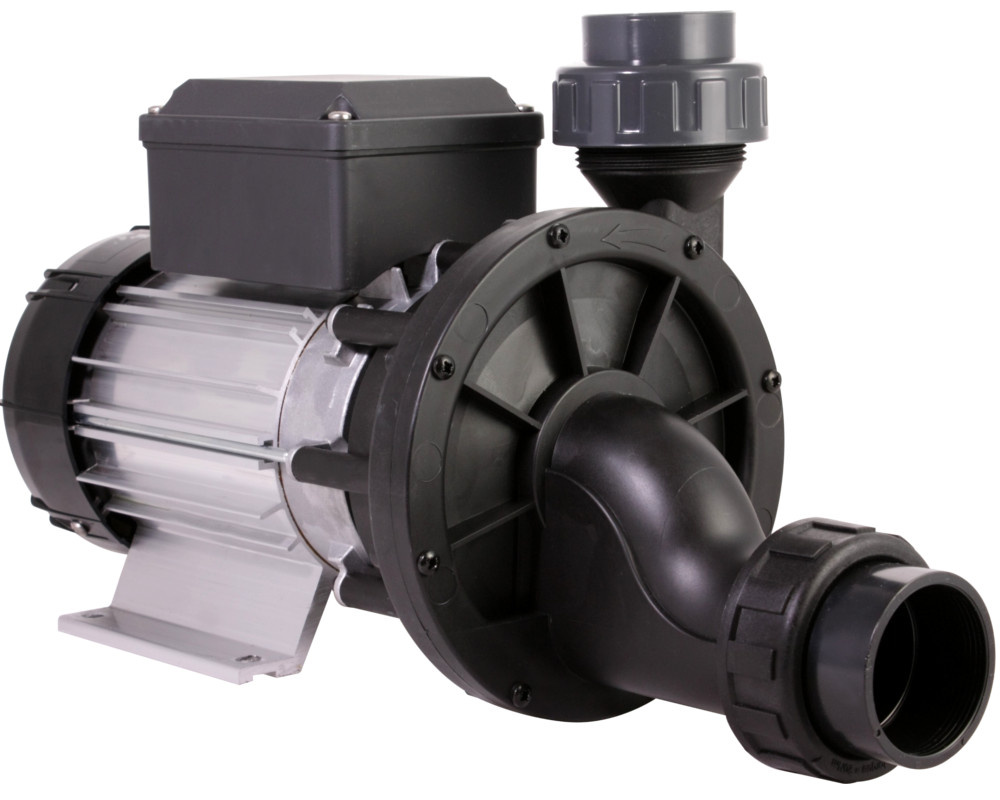

SIREM PB1C8024L1B 2-speed pump

The SIREM PB1C8024L1B French-made 2-speed pump can be found on Aquamarine spas.

Tubs Parts also offers the single-speed version of this pump.

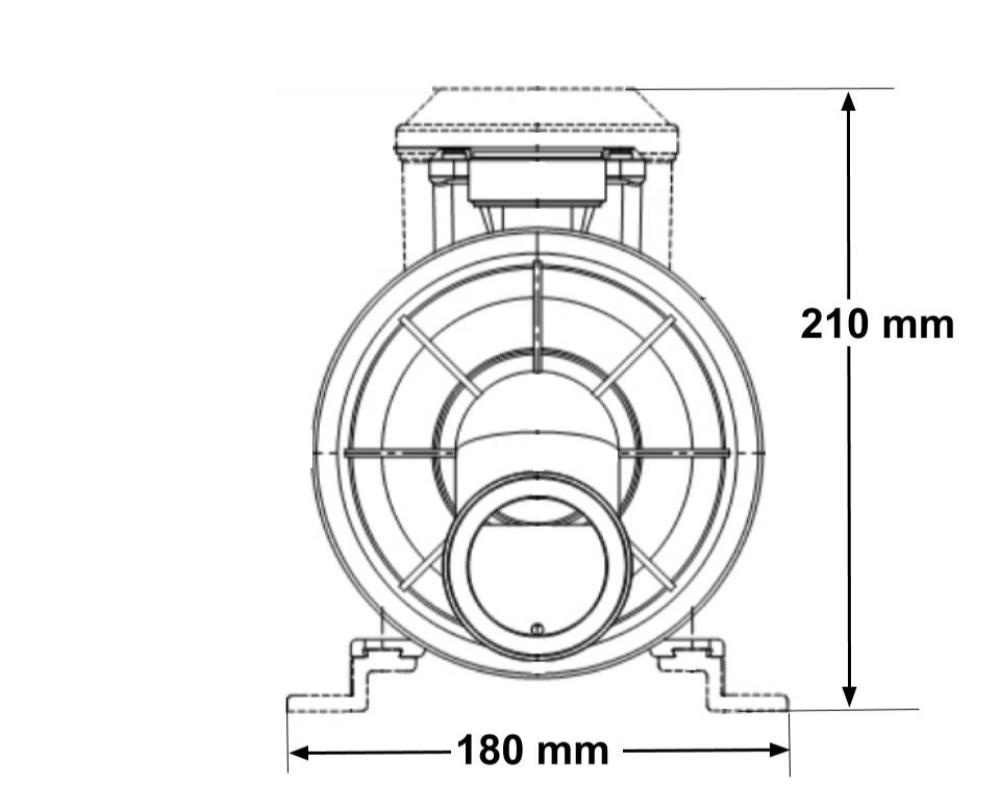

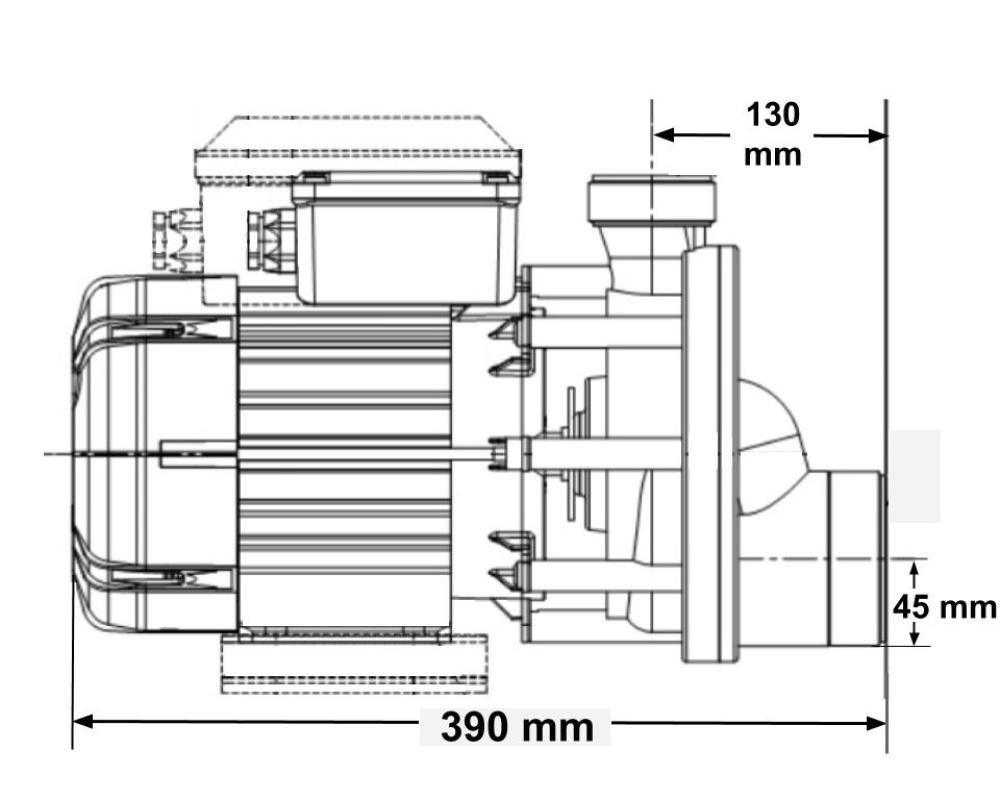

Dimensions
Length: 390 mm
Width: 180 mm
Height: 210 mm

Connections
Outflow: MPT male thread with an outside diameter of 65 mm
Intake: MPT male thread with an outside diameter of 59 mm

Technical specifications
Power high speed: 1.25 kW (1.7 HP)
Power low speed: 0.35 kW (0.5 HP)

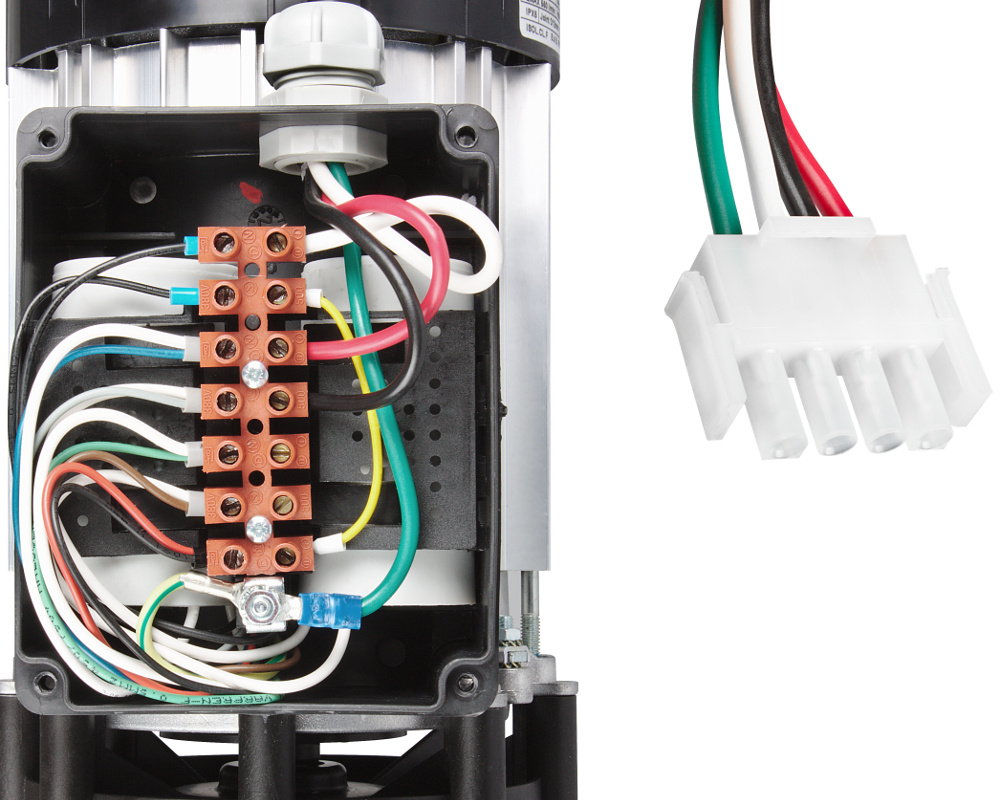

Cable and plug
The SIREM PB1C8024L1B pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug, a mini J&J plug or an in.link plug (100 cm long).

Spare parts
We offer some spare parts for this pump, including the [(3902 impeller)] and its wet end seal for pumps made after July 2018, and the impeller and its wet end seal for models made before July 2018. Check the dimensions of the parts you want to replace, or contact us!

Warranty
2-year Tubs Parts warranty

Part numbers
SIREM: PBL1C8024L1B

Plug types

AMP plug

J&J plug

in.link plug
