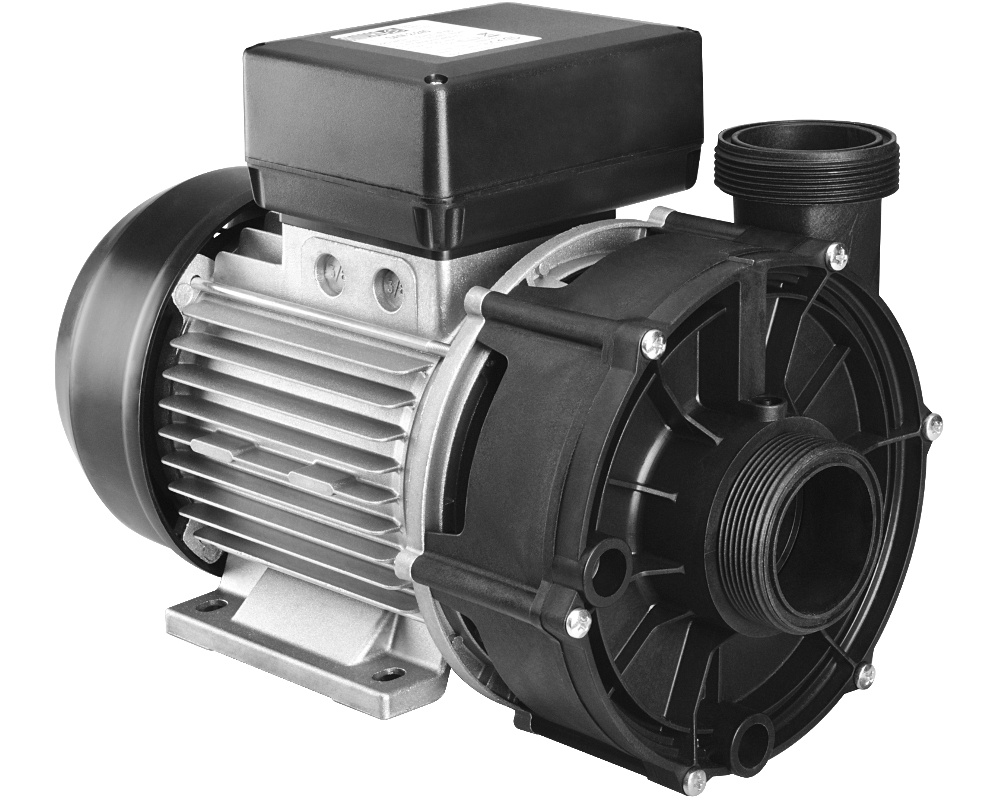

Simaco SAM2-180 2-speed pump

The SAM2-180 two-speed pump is used in Teuco and Spaform spas, among other brands. Simaco pumps are particularly notable for their quietness.

Please note that a new version of this pump is now manufactured by Simaco, and it is no longer possible to turn the wet end at 45°. Please do not hesitate to contact us if you have any replacement problems.

We also offer the slightly more powerful Simaco SAM2-200 two-speed model.

Dimensions (without the unions)
Length: 336 mm
Width: 193 mm
Height: 228 mm

Technical specifications
Power high speed: 1.9 kW
Power low speed: 0,4 kW
Flow rate high speed: 600 litres/minute
Flow rate low speed: 320 litres/minute

Pipe connections
Male threaded with a 63 mm external diameter.
The Simaco SAM2-200 pump is supplied with pump unions (and gaskets) for 50 mm pipes. A single nut to be used with a 2-inch exit or a 63 mm exit is also available. Don't forget the gasket !

Cable and plug
The pump is supplied with a cable of about 120 cm, and pre-cabled. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have it pre-cabled by our team with n AMP plug, a mini J&J plug or an in.link plug (length 100 cm).

Warranty
2-year Tubs Parts warranty

Part numbers
Simaco: SAM2-180 2/4
