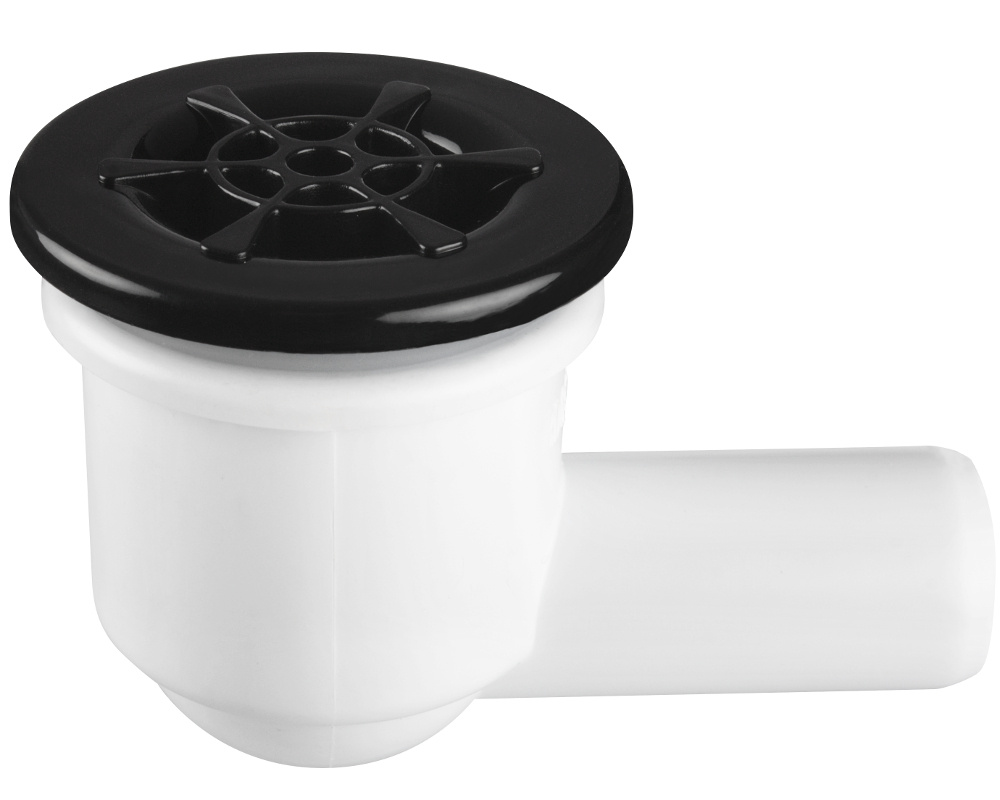

Rising Dragon Star Face drain assembly

This Rising Dragon drain assembly allows water to exit by gravity. It should never be used with a pump to suck out the water, as there is no protection against entrapment. The connection socket has a 90° angle to minimize the depth needed in the spa shell.

The gasket is included.

Pipe connection
Outside diameter : 20 mm, for a 3/4-inch pipe

Dimensions
Outside diameter of the face: 49 mm
Depth of the socket (inside the spa shell): 50 mm
Hole diameter in the spa shell: 31 mm

Part numbers
Rising Dragon : RD641-1020, RD641-1022
