Rising Dragon Multi-flow therapy air injector

This threaded air injecter is manufactured by Rising Dragon, and is available with a black or stainless steel face.

There are two ways to install this jet: it can either screw directly into a jet body (available as an elbow or a tee), or you can fix it in place with a nut and connect it to an adapter (also available as an elbow or a tee).

Connect this jet to a manifold using 3/8-inch flexible pipe. Use silicone to seal the jet against the spa shell.

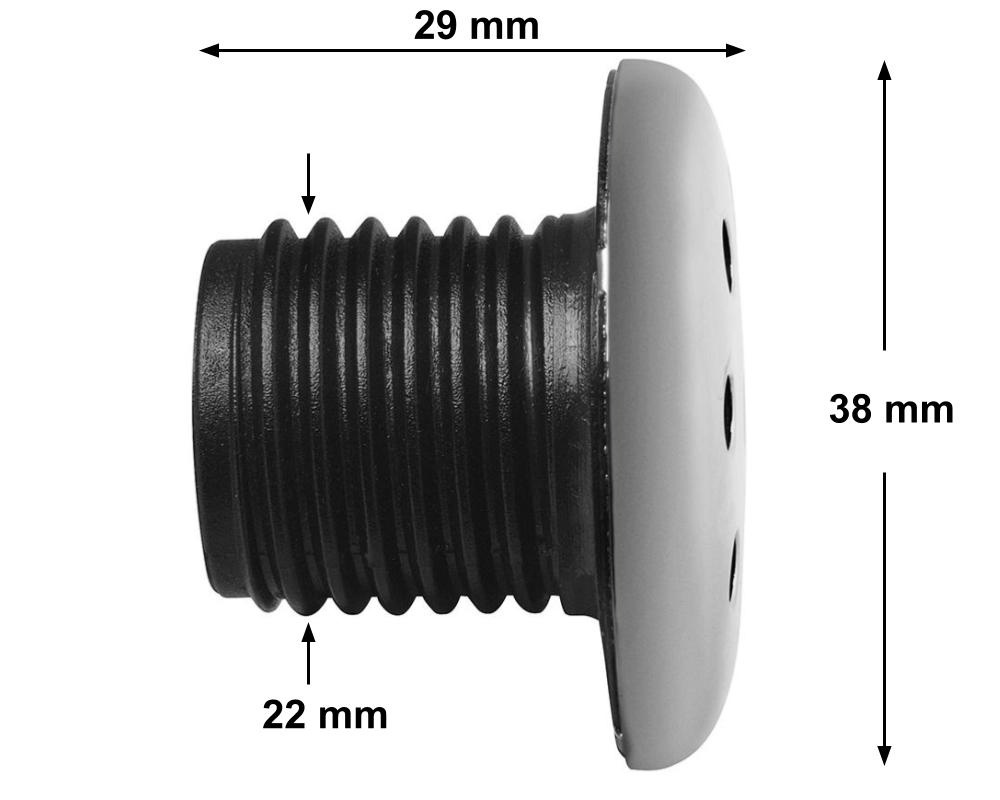

Dimensions
Diameter of the face : 38 mm
Length : 29 mm
Thread diameter : 22 mm

Rising Dragon part numbers

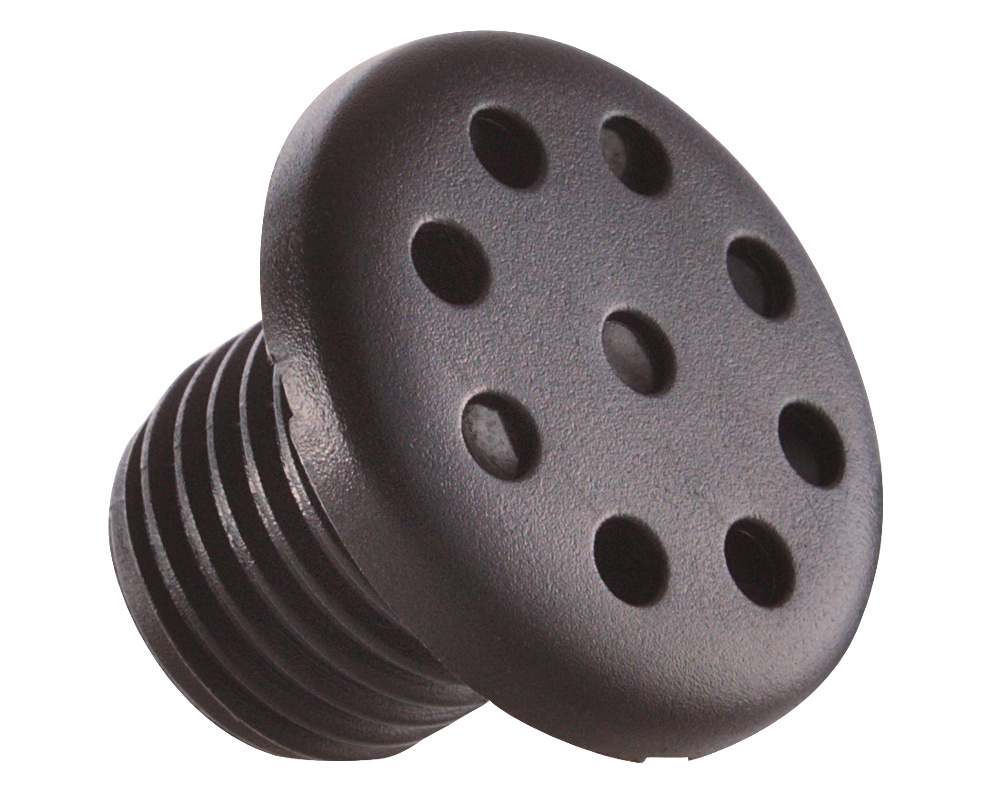

RD611-1041 or RD612-1041: black

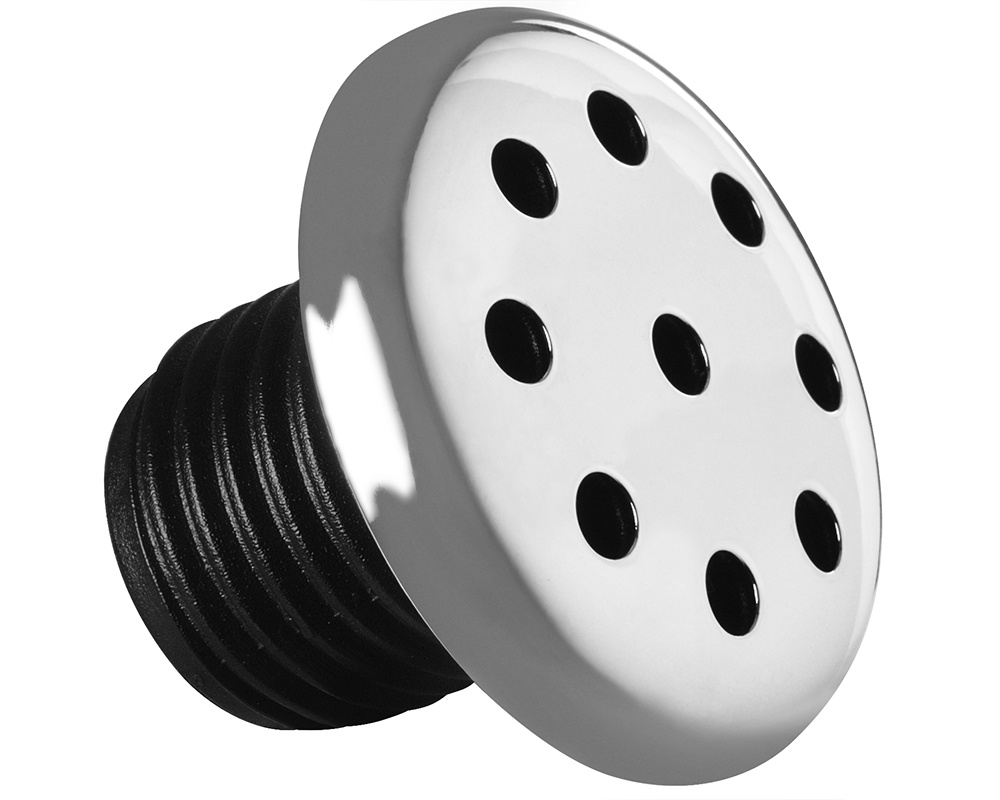

RD611-1041S or RD612-1041S: stainless steel
