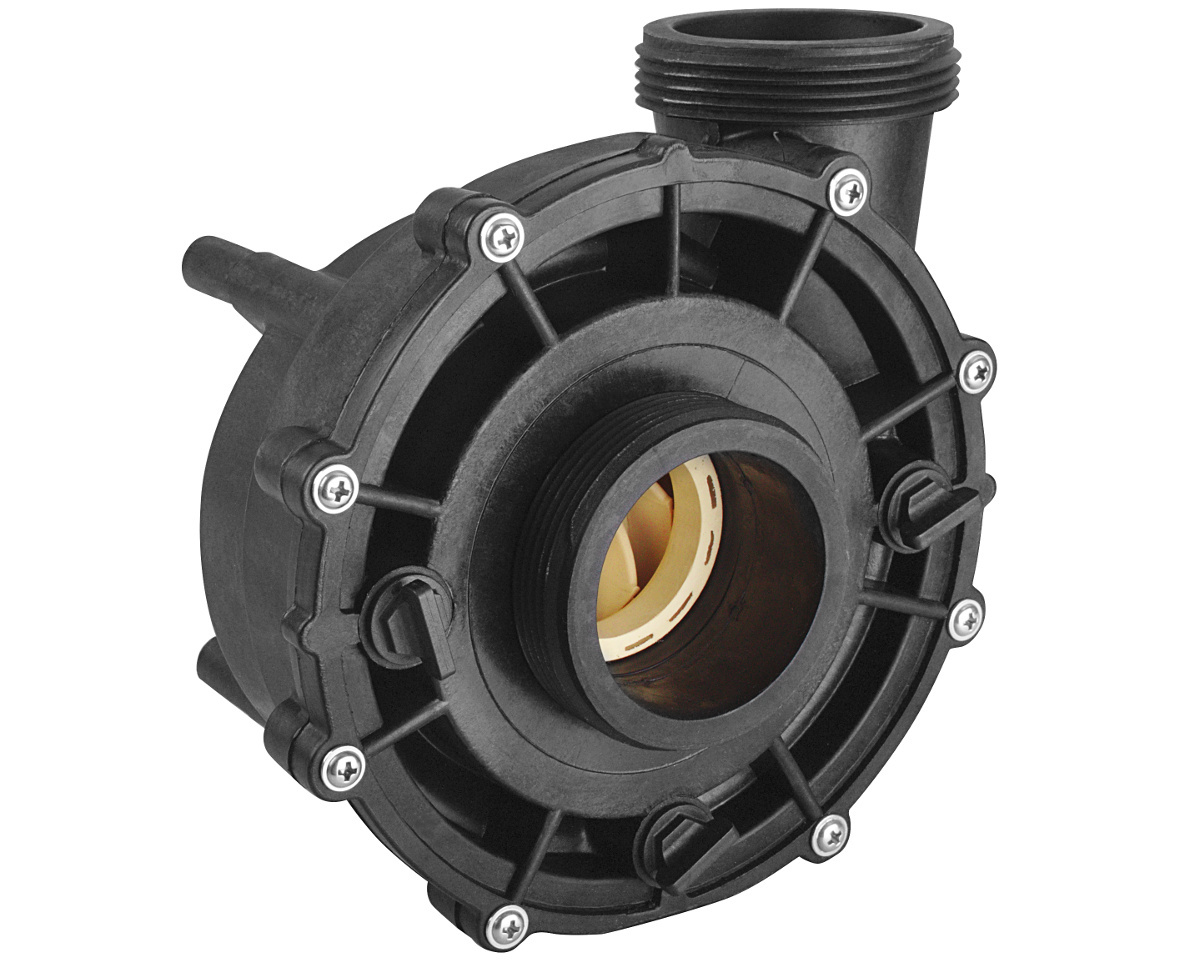

Reconditioned Whirlpool LX LP300 wet end

This wet end is a spare part for LX Whirlpool LP300 and WP300-II in 56-Frame. It is sold with its volute, impeller, mechanical seal, flange and flange gasket.

It has been reconditioned with a break at the back of the body, which in no way alters its functionality.

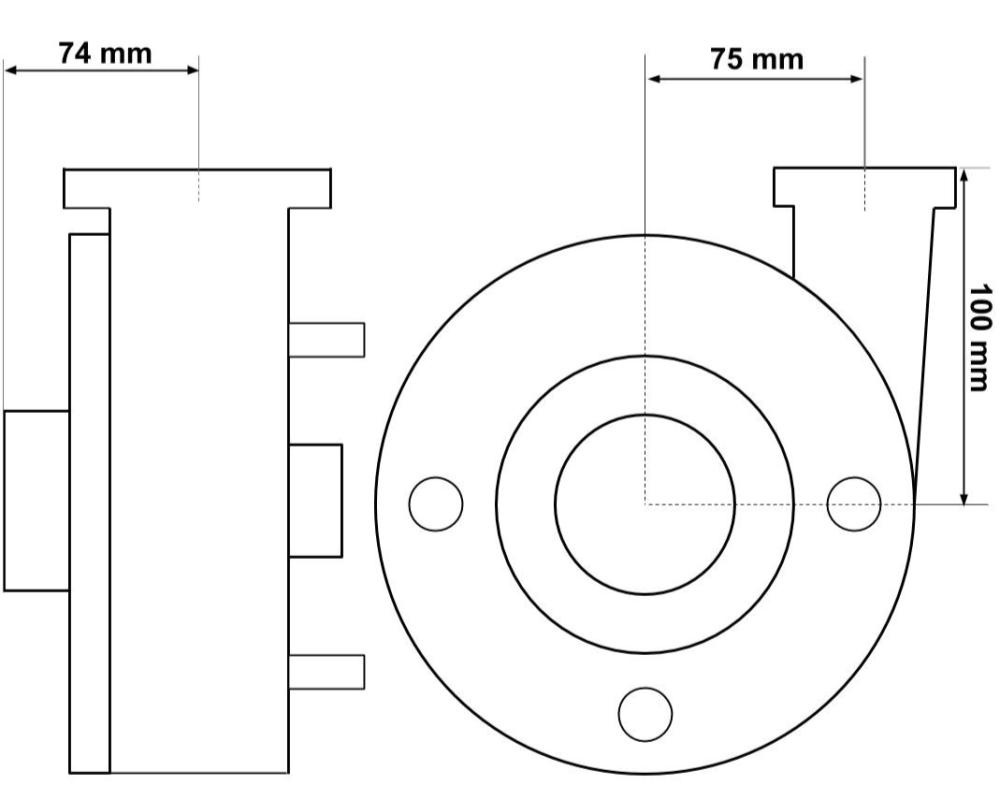

Dimensions
Width: 180 mm
Height: 195 mm

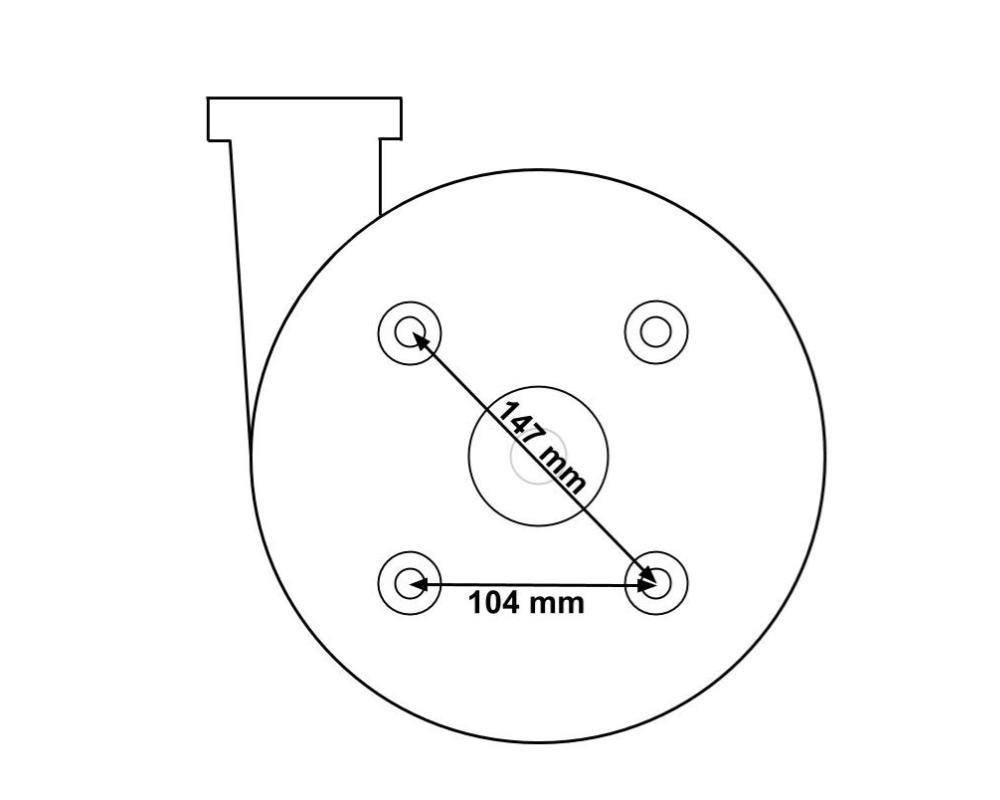

Mounting point centre distances: 147 mm diagonal, 104 mm horizontal and vertical.
This body is compatible with 56-Frame single-speed and dual-speed motors.

Connections
Delivery and suction: 78 mm O.D. threaded male spigot (type 2 inch MBT)
To be connected with 2 inch (60 mm) hose pump unions.

Warranty
6-month Tubs Parts warranty

Part numbers
You may find part number B346-14 (or similar) on the back of this body, but the manufacturer changes these codes quite often, so the absence of this part number does not necessarily indicate that this body will not fit. If in doubt, contact us.
