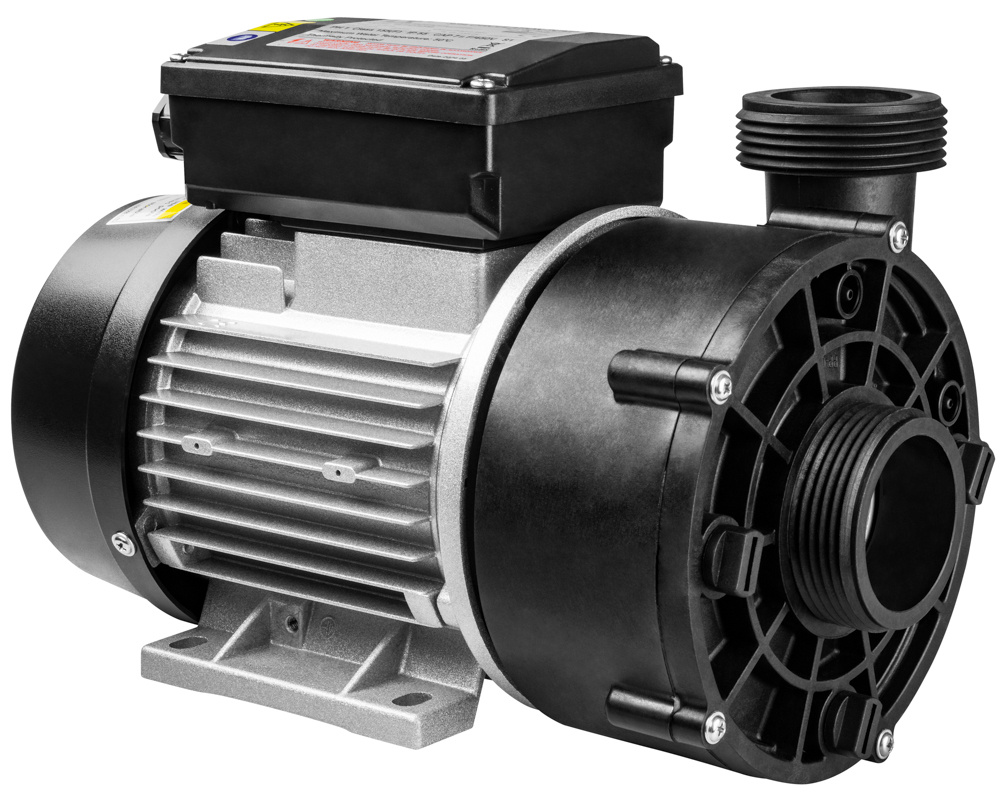

LX Whirlpool WTC50M circulation pump

The LX Whirlpool WTC50M filtration pump is a 24-hour circulation pump. It is the only pump manufactured by LX Whirlpool which turns at half-speed (1450 rpm), and as a result it is much quieter other LX Whirlpool pumps of similar power, like the JA35 circulation pump.

This pump is not the same as as the WTC50M-A (part numbers 6500-920 and 6500-910) and WTC50M-B (6500-067) models which are manufactured exclusively for Sundance Spas, depite the similar model numbers. You can install a WTC50M in place of a WTC50M-A or B, but not without difficulty. The alignment of the suction and return fittings is slightly different, and you will have to modify the plumbing of your hot tub, which is never easy.

Technical specifications
Power: 250 W (0.33 HP)
Speed: 1400 rpm
Maximum flow rate: 240 litres/minute
Capacitor: 7 µF

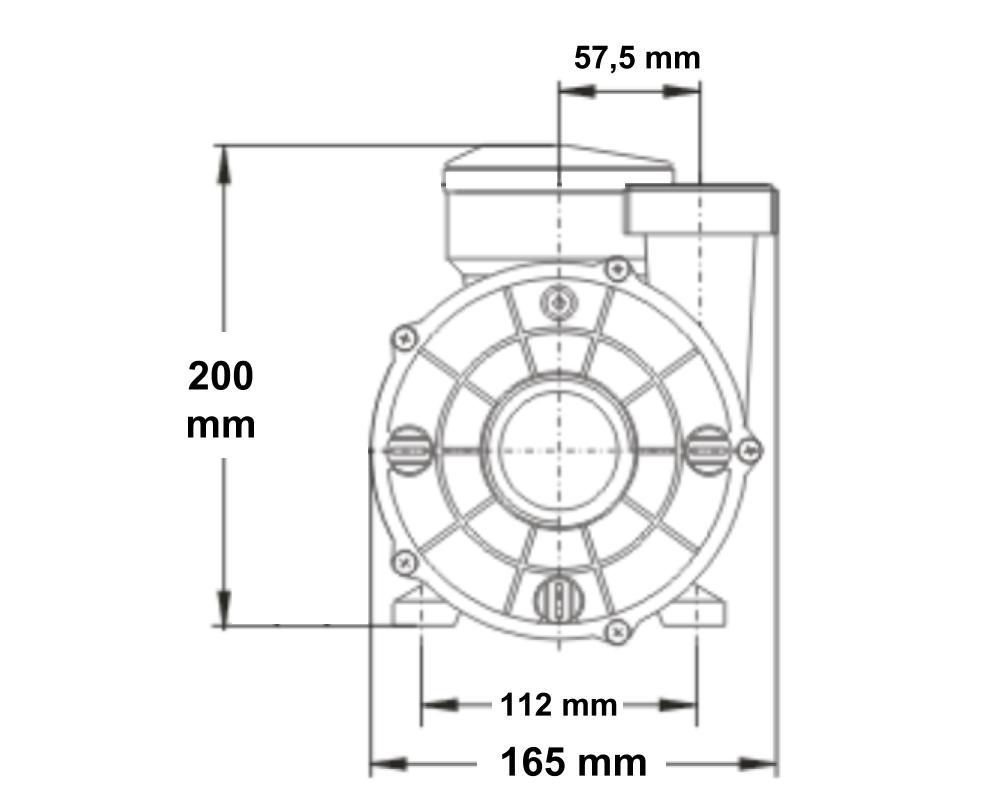

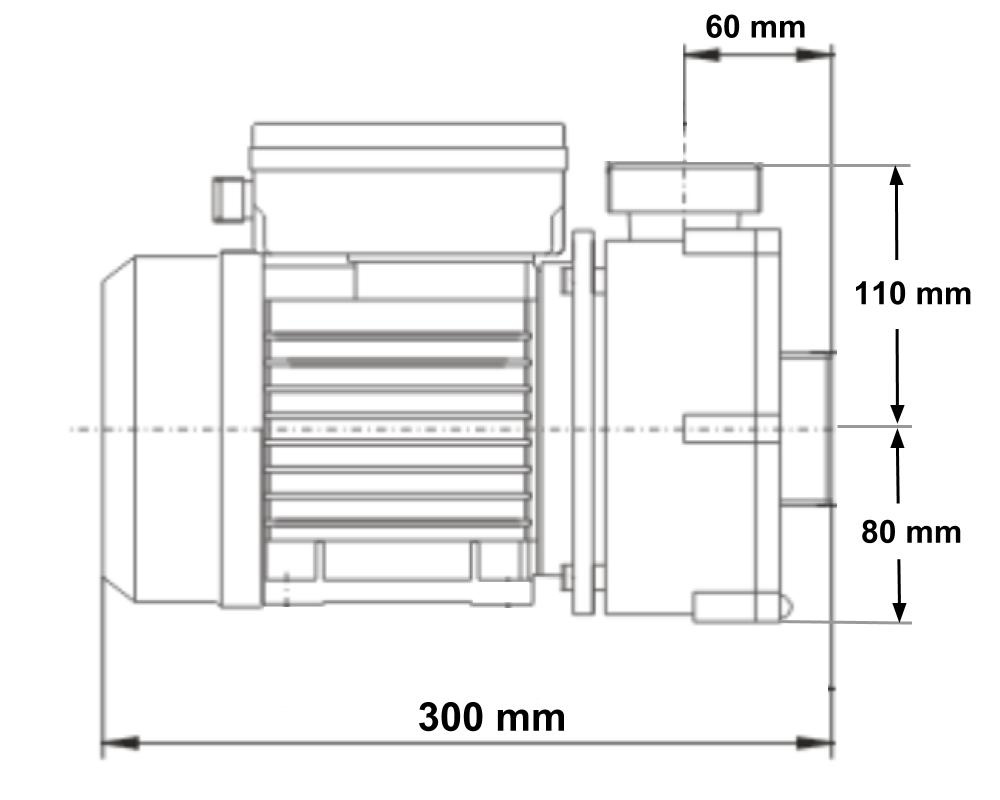

Dimensions
Length: 300 mm
Width: 165 mm
Height: 200 mm

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT)
Pump unions and o-rings for 696 pipes are supplied.

Cable and plug
The LX Whirlpool WTC50M circulation pump is supplied pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.

Spare parts
The wet end, seal, fan and faceplate o-ring of this pump are available as spare parts.

Warranty
2 years Tubs Parts warranty

Part numbers
LX Whirlpool: WTC50
Sundance Spas: 6500-907 and 6500-913 (since 2011)
Volition: M05CTW
Wellis: ACM0846
Jazzi: JAPU5

Wet end orientation

Standard exit

Exit to left

Exit to right

Plug types

AMP plug

J&J plug

in.link plug
