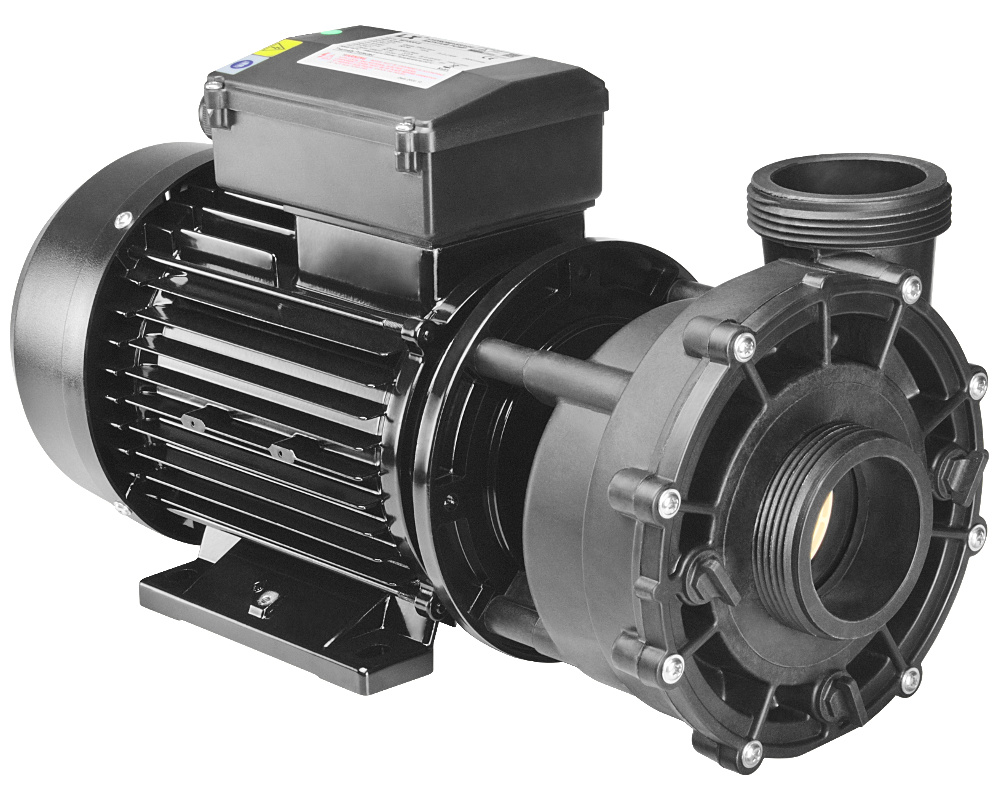

LX Whirlpool WP300-II 2-speed pump

In stock
324,00€
incl. 20% VAT
Quantity:
LX Whirlpool WP300-II 2-speed pump - Click to enlarge
LX Whirlpool WP300-II 2-speed pump - Click to enlarge
LX Whirlpool WP300-II 2-speed pump - Click to enlarge
LX Whirlpool WP300-II 2-speed pump - Click to enlarge
LX Whirlpool WP300-II 2-speed pump - Click to enlarge

The LX Whirlpool WP300-II 2-speed pump has a slow speed for filtration and heating, and a fast speed that runs the massage jets. We also offer the WP200-II and WP250-II versions of this pump, with different motor powers.

The pump comes with unions for 2-inch pipe (diameter 60 mm). We have a wide range of spare parts for this pump.

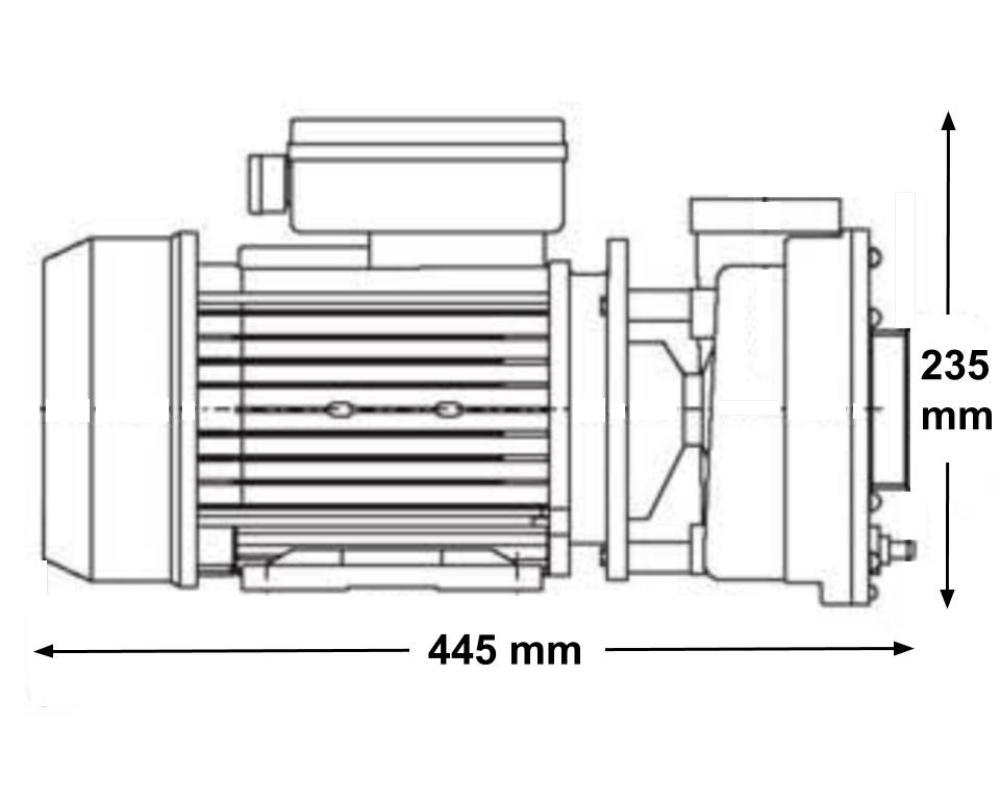

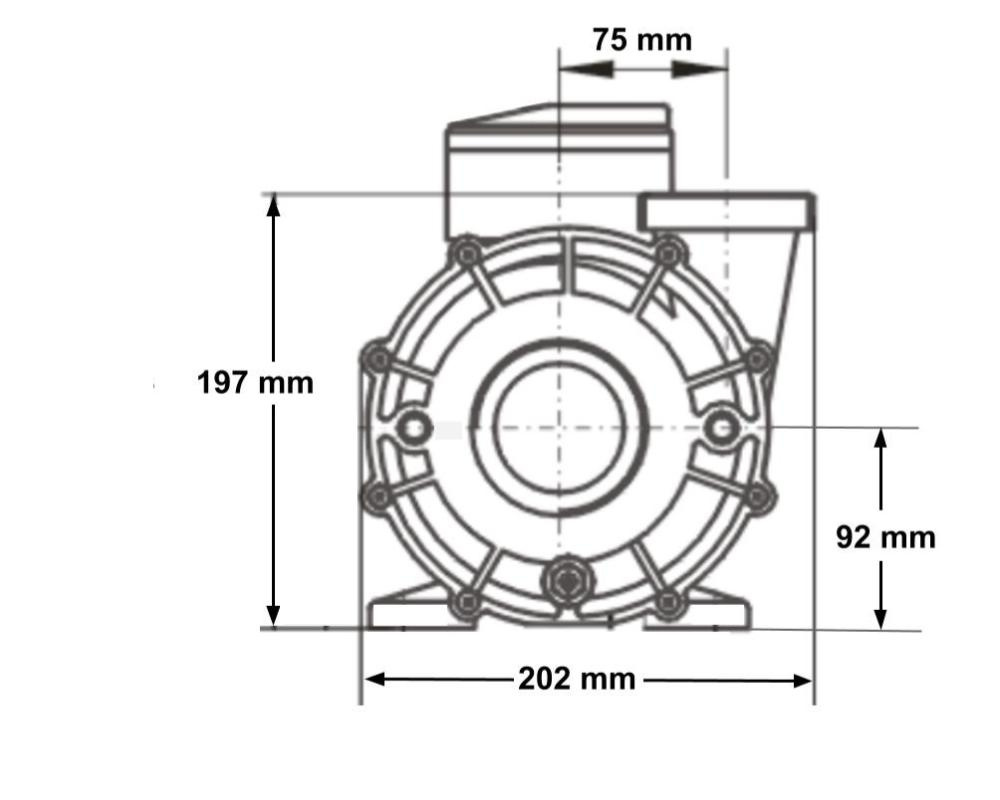

Dimensions
Length: 445 mm
Width: 202 mm
Height: 235 mm

Technical specifications
Power high speed: 2,2kW (3.0 HP)
Power low speed: 0,45 kW
Maximum flow rate: 730 litres/minute

Connections
Outflow and intake: male thread with a 78 mm outside diameter.
The LX Whirlpool WP300-II pump is supplied with unions and gaskets for 2-inch pipes (diameter 60 mm).

Cable and plug
The LX Whirlpool WP300-II pump is available pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a 240 cm AMP plug, a mini J&J plug or an in.link plug (length 100 cm).

Similar pumps
The Koller 3 HP, Waterway Executive and the Aqua-Flo Flo-Master XP2e pumps have the same motor power and thread size as the WP300-II, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
Volition: 30WP
Wellis: ACM0394
Jazzi: JAPU11

Wet end orientation

Standard exit

Standard exit

Exit to left

Exit to left

Exit to top left

Exit to top left

Exit to right

Exit to right

Exit to top right

Exit to top right

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
