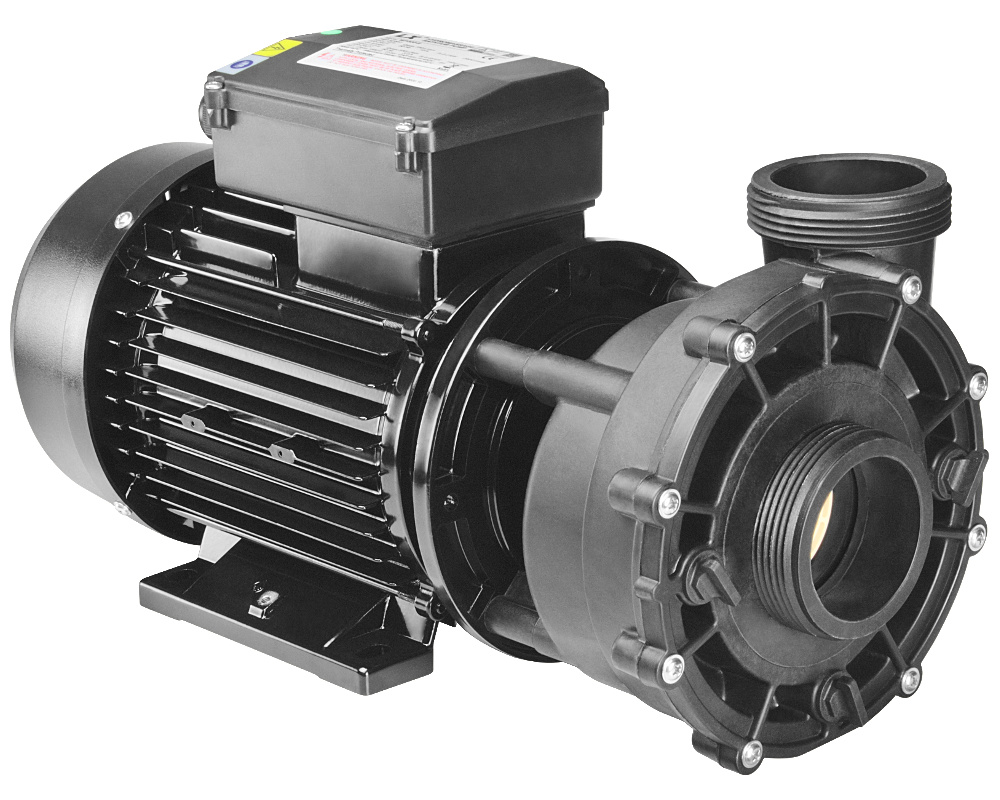

LX Whirlpool WP250-II 2-speed pump
The LX Whirlpool WP250-II two-speed spa pump has a slow speed for filtration and heating, and a high speed that runs the massage jets. We also sell the WP200-II and WP300-II pumps from the same series, with different motor powers.
The pump comes with unions for 2-inch pipe (diameter 60 mm). We have a wide range of spare parts for this pump.

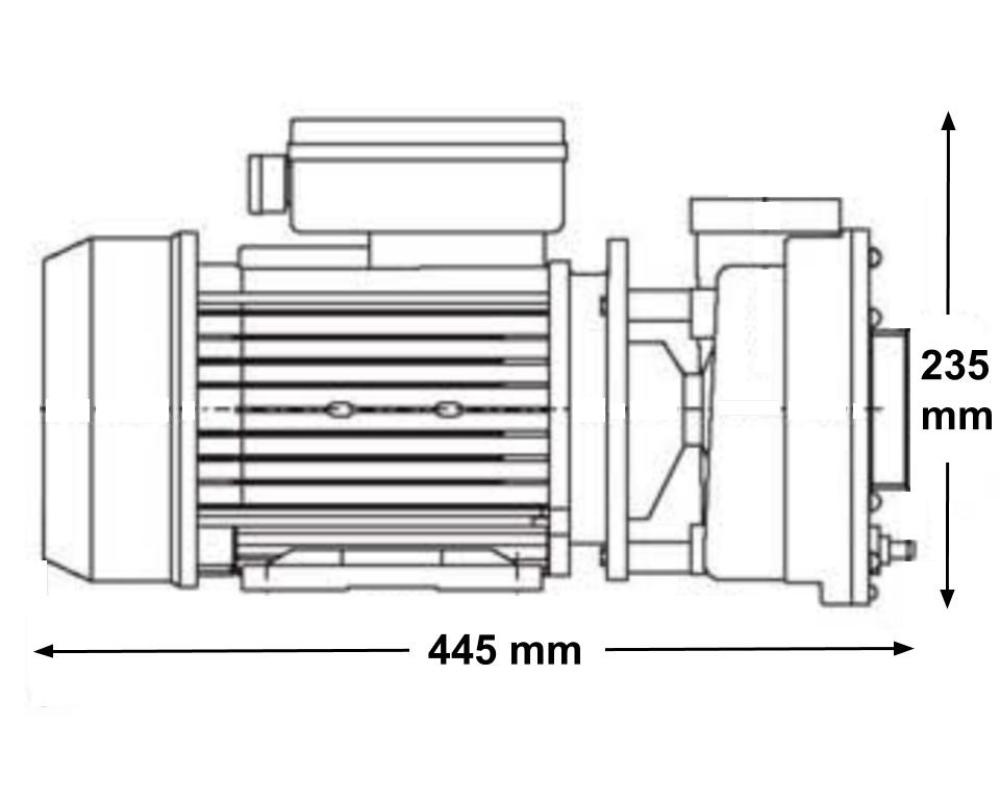

Dimensions
Length: 445 mm
Width: 202 mm
Height: 235 mm
Technical specifications
Power high speed: 1.9 kW (2.05HP)
Power low speed: 0,4 kW
Maximum flow rate: 670 litres/minute
Connections
Outflow and intake: male thread with a 78 mm outside diameter
The LX Whirlpool WP250-II pump is supplied with unions and gaskets for 2-inch pipes (diameter 60 mm).
Cable and plug
The LX Whirlpool WP250-II pump is available pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug or an in.link plug (length 100 cm).
Similar pumps
The WP300-II is identical to the WP250-II, with higher motor power. The Koller 2,5 HP and Aqua-Flo Flo-Master XP2e pumps have the same motor power and thread size as the WP250-II, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.
Warranty
2-year Tubs Parts warranty
Part numbers
LX Whirlpool: WP250-II
Watkins: 0982801-03
Volition: 25WP, PW250
Wet end orientation
Standard exit
Exit to left
Exit to top left
Exit to right
Exit to top right
Plug types
AMP plug
J&J plug
in.link plug
