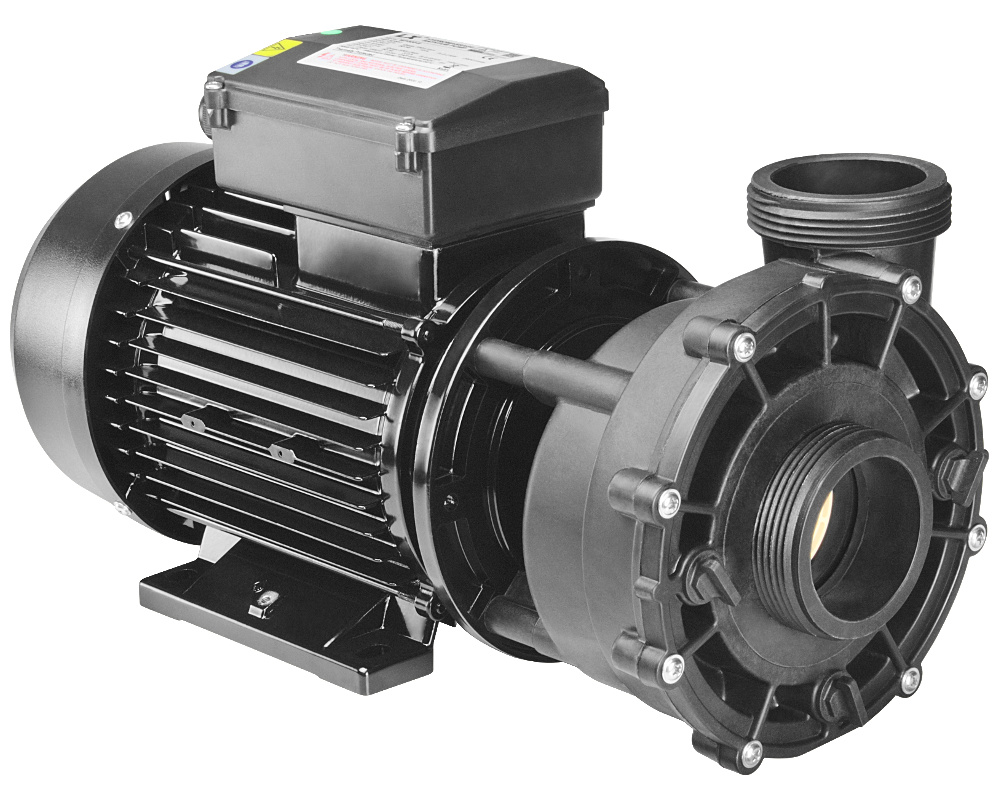

LX Whirlpool WP200-II 2-speed pump

In stock
280,00€
incl. 20% VAT
Quantity:
LX Whirlpool WP200-II 2-speed pump - Click to enlarge
LX Whirlpool WP200-II 2-speed pump - Click to enlarge
LX Whirlpool WP200-II 2-speed pump - Click to enlarge
LX Whirlpool WP200-II 2-speed pump - Click to enlarge
LX Whirlpool WP200-II 2-speed pump - Click to enlarge

The LX Whirlpool WP200-II two-speed pump has a slow speed for filtration and heating, and a fast speed that runs the massage jets. We also sell the WP250-II and WP300-II versions of this pump, with different motor powers.

The pump comes with unions for 2-inch pipe (diameter 60 mm). We have a wide range of spare parts for this pump.

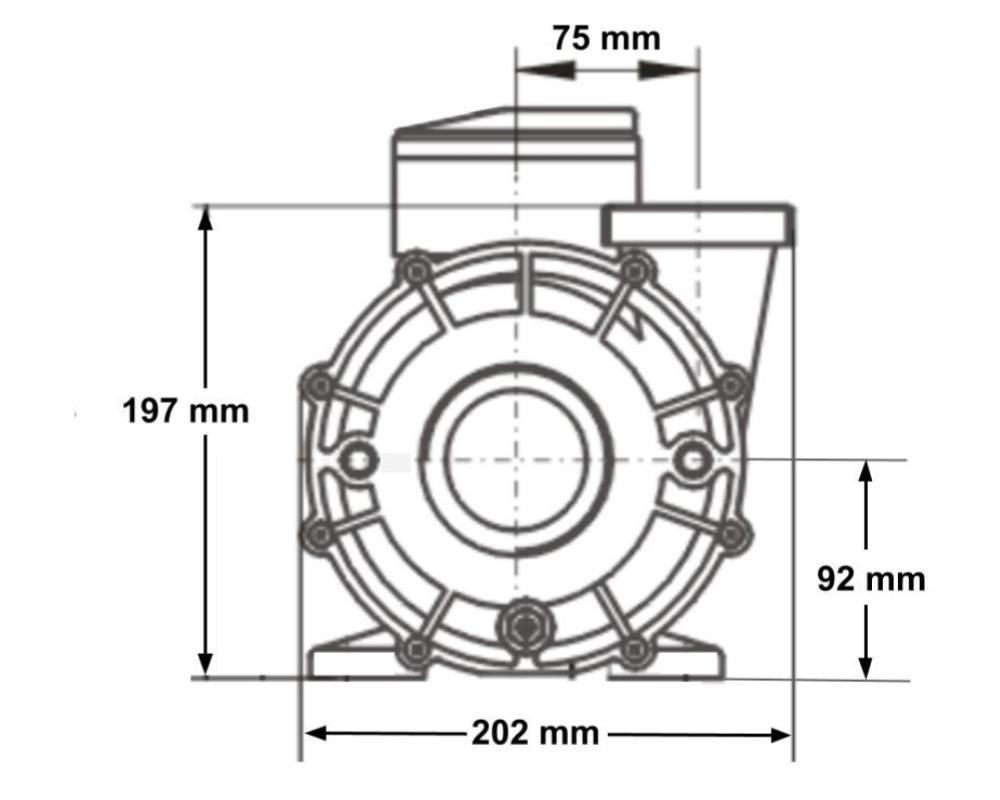

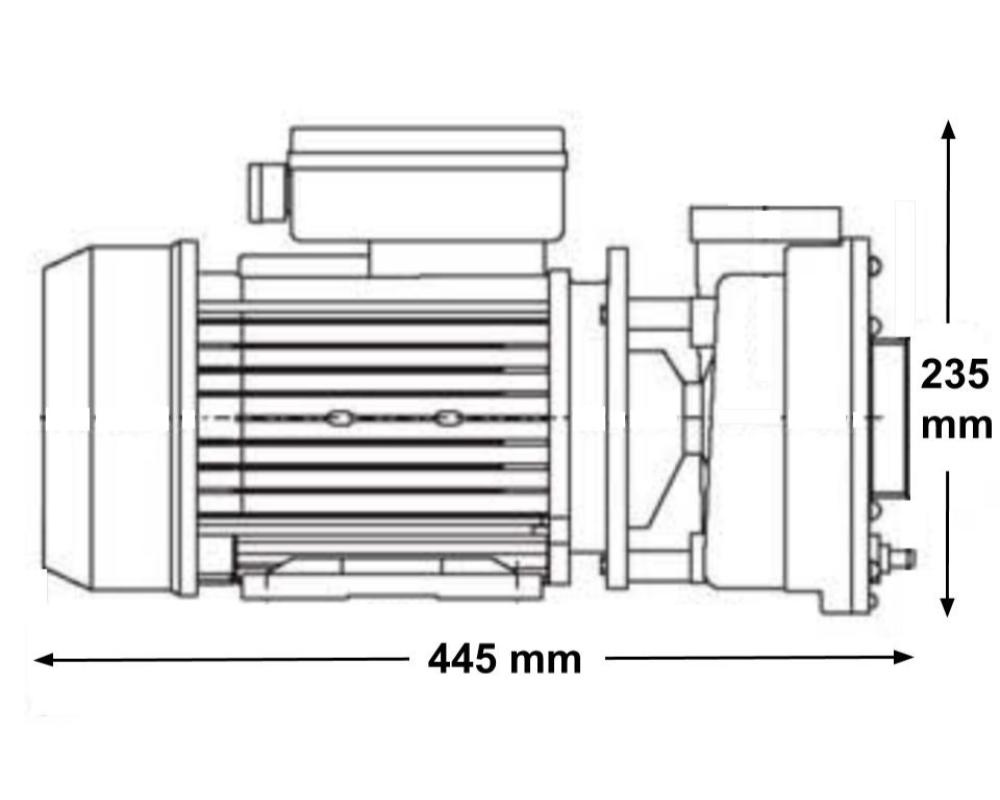

Dimensions
Length: 445 mm
Width: 202 mm
Height: 235 mm

Technical specifications
Power high speed: 1,5 kW (2.0HP)
Power low speed: 0,35 kW
Maximum flow rate: 620 litres/minute

Connections
Outflow and intake: male thread with a 78 mm outside diameter.
The LX Whirlpool WP200-II pump is supplied with unions and gaskets for 2-inch pipes (diameter 60 mm).

The LX WP200-II replaces the Theramax pumps with the following part numbers: 6500-291, 6500-299, 6500-319, 6500-700, 6500-791 and 6500-899.

Cable and plug
The LX Whirlpool WP200-II pump is available pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a 240 cm AMP plug, a mini J&J plug or an in.link plug (length 100 cm).

Similar pump
The Koller 2 HP pump has the same thread size, similar dimensions and same power than the WP200-II. If you want to replace your pump with another model, you must check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
Watkins / HotSpring: 0965901-03. Replaces 37066
Volition: 20PW
Wellis: ACM0594
Jazzi: JAPU10
Jacuzzi and Sundance Spas Theramax: remplaces part numbers 6500-291, 6500-299, 6500-319, 6500-700, 6500-791 and 6500-899

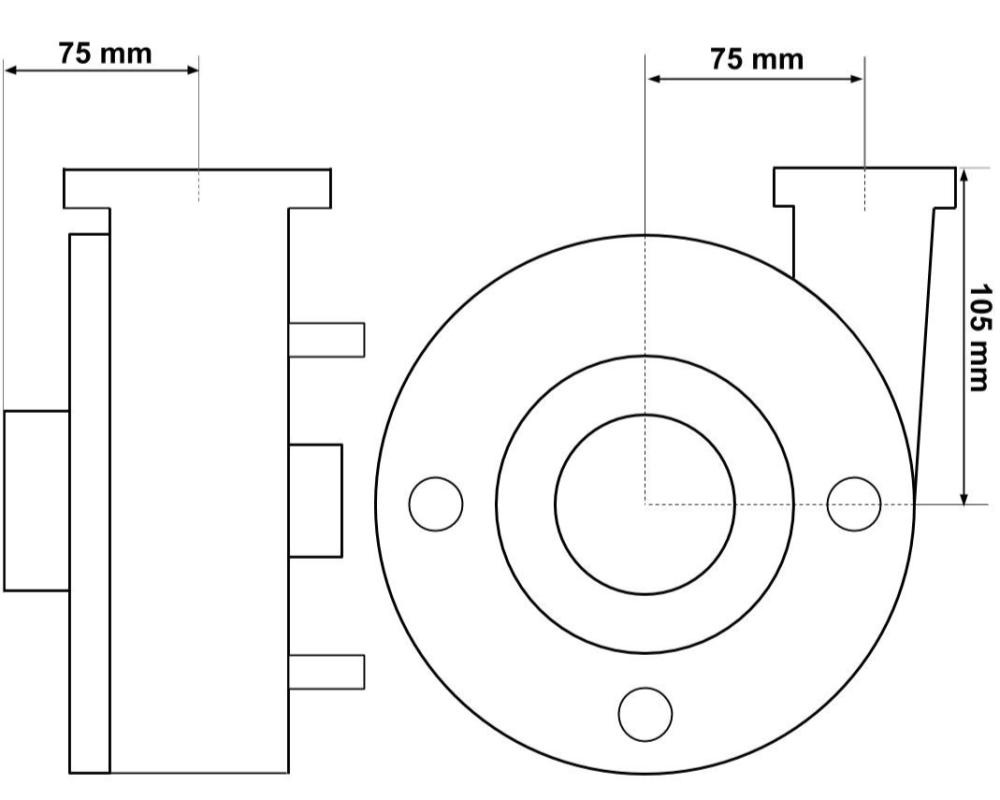

Wet end orientation

Standard exit

Standard exit

Exit to left

Exit to left

Exit to top left

Exit to top left

Exit to right

Exit to right

Exit to top right

Exit to top right

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
