LX Whirlpool TDA75 circulation pump

In stock

139,50€

incl. 20% VAT

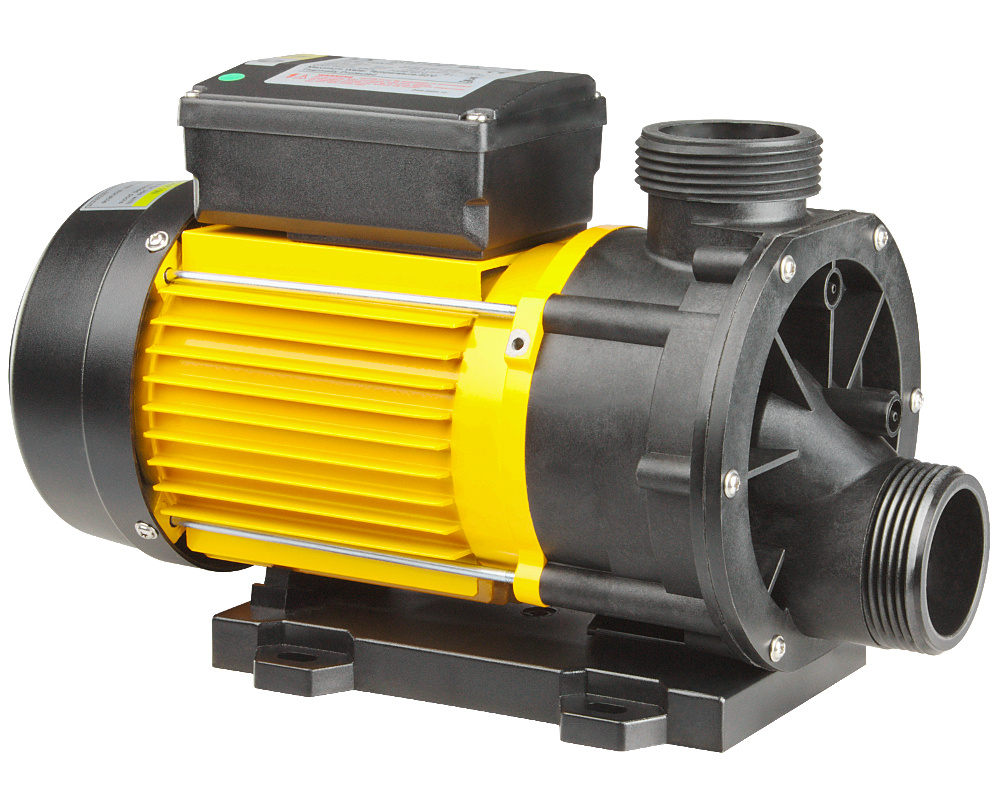

LX Whirlpool TDA75 circulation pump - Click to enlarge

The LX Whirlpool TDA75 single-speed pump is generally used for circulation and heating, like others from the same series : the TDA35 and TDA50, which have different power ratings.

The TDA100 and TDA200 are more powerful models, and are used as massage pumps.

Dimensions
350 x 160 x 210 mm

Technical specifications
Power: 0.55 kW (0.75 HP)
Speed: 2850 rpm
Maximum flow rate: 300 liters/minute

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT)
We offer unions for 1.5-inch pipes

Spare parts
We offer a range of spare parts for this pump.
Most versions use a 10 µF capacitor, in case you need te replace it (but double-check yours anyway).

Cable and plug
The LX Whirlpool TDA75 circulation pump is supplied pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.

Warranty
2-year Tubs Parts warranty

Part numbers
LX Whirlpool : TDA75
Kinedo: SPOM008

Plug types
