LX Whirlpool JA75 circulation pump

Available in 3 weeks
129,00€
incl. 20% VAT
1.5-inch unions
Quantity:

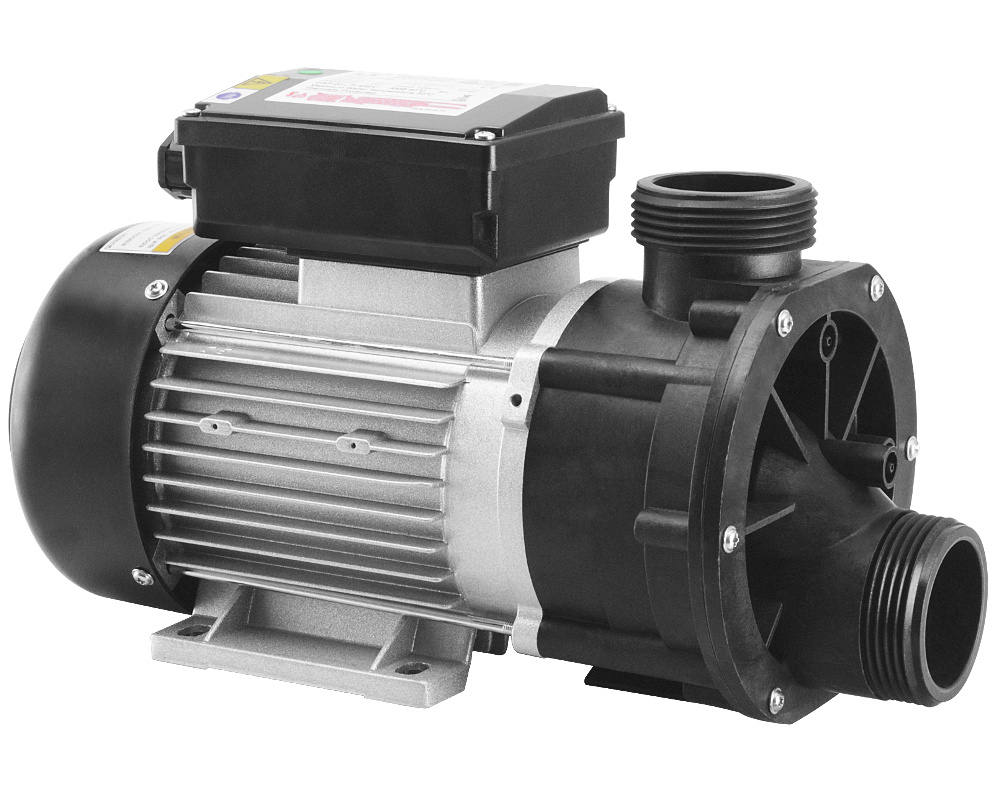

LX Whirlpool JA75 circulation pump - Click to enlarge
LX Whirlpool JA75 circulation pump - Click to enlarge
LX Whirlpool JA75 circulation pump - Click to enlarge
LX Whirlpool JA75 circulation pump - Click to enlarge
LX Whirlpool JA75 circulation pump - Click to enlarge

The LX Whirlpool JA75 is a 0.75 HP circulation pump used by many spa manufacturers.

The JA75 a perfect remplacement for a DXD-8 pump.

We sell all pumps in the JA series : JA35, JA50 and JA100 as 24-hour circulation pumps, and JA120, JA150 and JA200 as massage pumps.

Technical specifications
Power: 550 W (0.75 HP)
Speed: 2850 rpm
Maximum flow rate: 300 litres/minute
Capacitor: 10 µF

Dimensions
Length: 350 mm
Width: 155 mm
Height: 205 mm


Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT).
Pump unions and o-rings for 1.5-inch pipes are supplied.

Cable and plug
The LX Whirlpool JA75 circulation pump is supplied pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.

Spare parts
We offer a wide range of spare parts for this pump: the electrical protection box, the mechanical seal or the flange.

Similar pump
The LX Whirlpool DH1.0 pump has the same motor power and thread size as the JA75, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2 years Tubs Parts warranty

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
