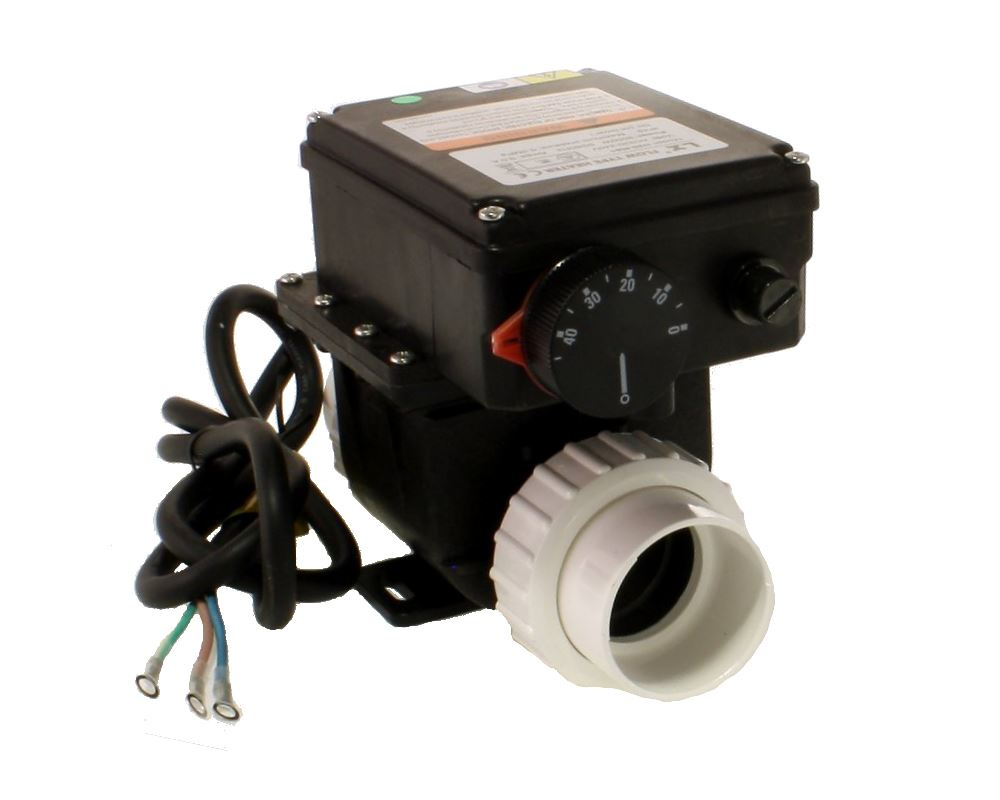

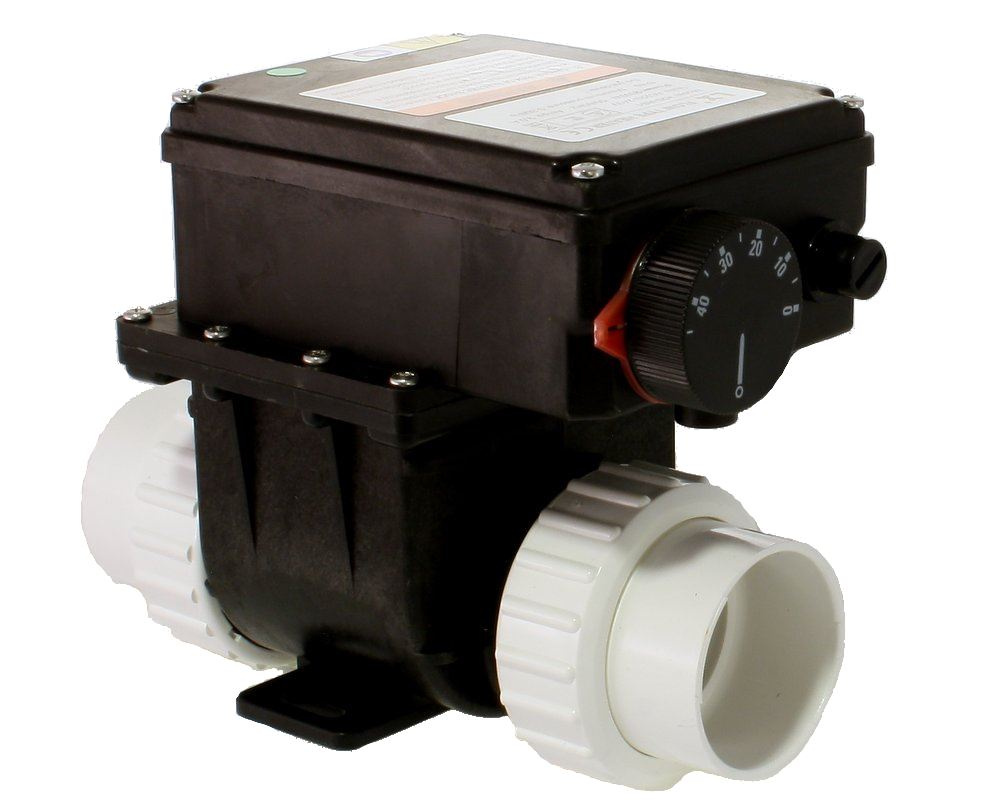

LX Whirlpool H30-RS1 heater

This compact autonomous 3 kW heater has an integrated thermostat, flow detector and overheat trip with reset button.

This heater requires a higher flow rate than others LX Whirlpool heaters, and we advise you to use a circulation pump of at least 350W, or more if the plant room is not immediately adjacent to the spa or pool.

This heater is a very good replacement for the H20-RS1 model. The H30 will heat up faster than the H20 version, but it will not consume more energy in total (the heating is more intense, but for a shorter time).

Technical specifications
Power: 3 kW
Current: 13 A
Minimum operating flow: 3.6 m³ per hour (60 liters per minute)

Spare parts
The heater element, the thermostat button and the thermostat are available as spare parts.

Dimensions
Length without unions: 130 mm
Total length with unions: 205 mm (the pipes insert 30 mm into the unions)
Height: 150 mm
The LX Whirlpool H30-RS1 heater is supplied with unions and o-rings for 1.5-inch (48 mm) pipes.

Warranty
2-year Tubs Parts warranty
