LX Whirlpool 700W heated blower - APW700-V2

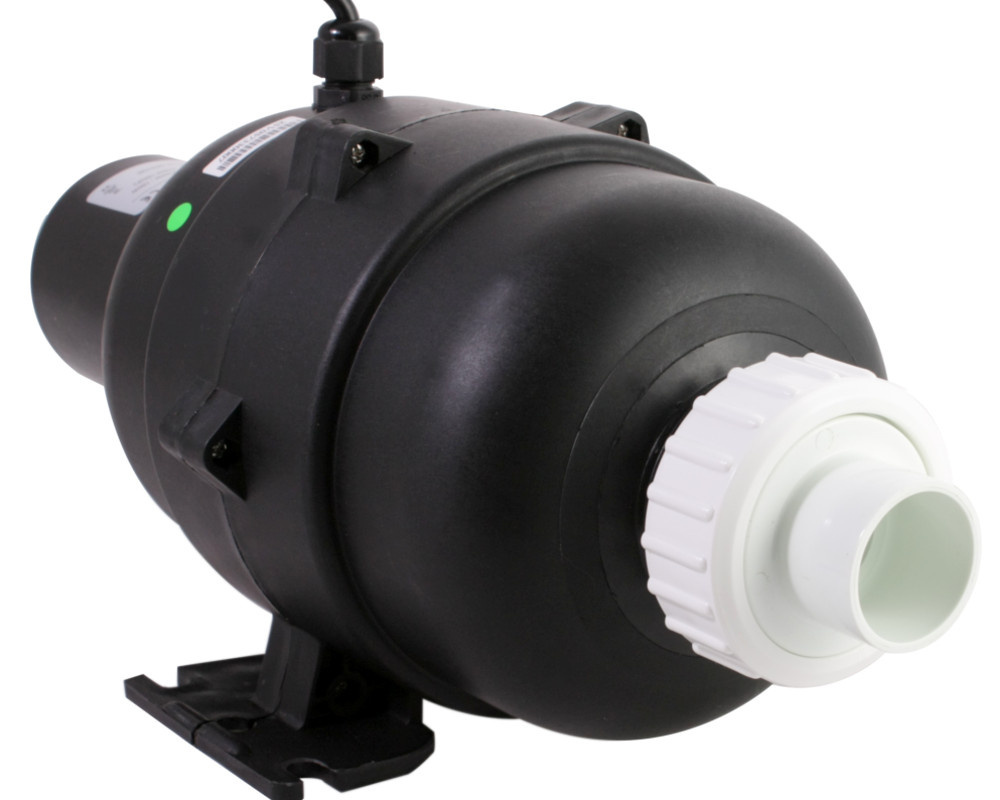

The LX Whirlpool APW700-V2 is a 700W blower with a 180W air heater. It can be used as replacement for various sizes of pool, ranging from bathtubs to spas and swim spas.

Technical data

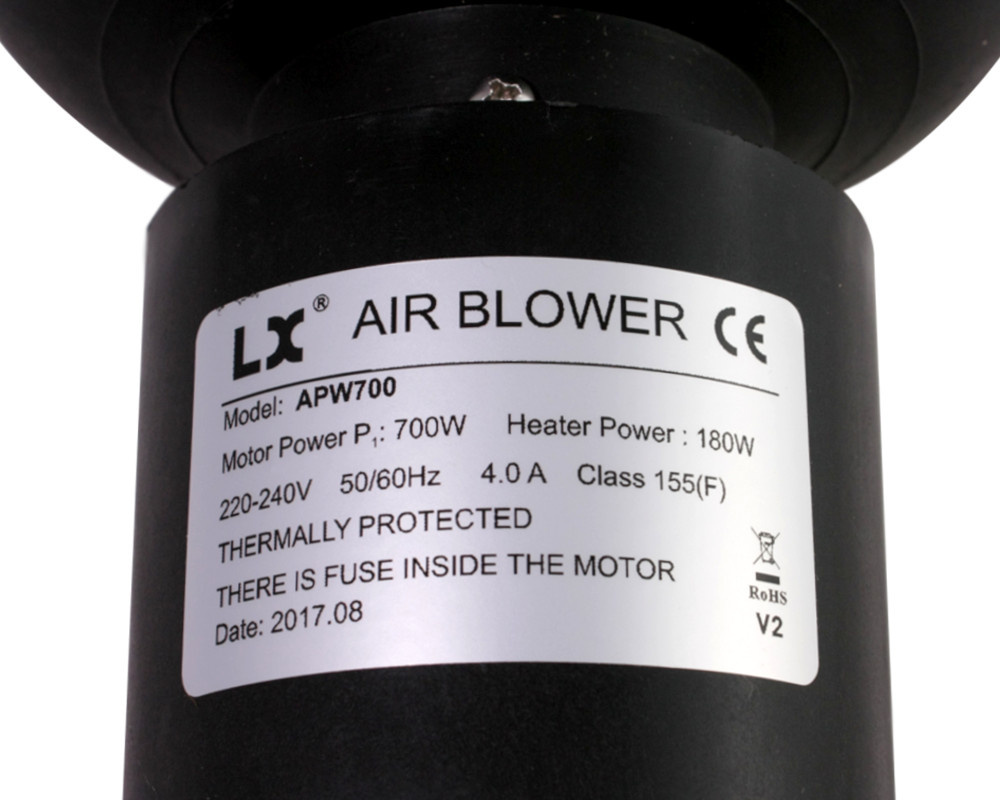

Power : 700+180W
Voltage : 220-240V
Amps : 3.3A
Air volume : 4.5m³/min
Jets Qty (pc) : 16-32
Noise level : <80dB

Dimensions
Length: 352 mm
Height: 165 mm
Width: 175 mm
Centre distance between fixing points: 145 mm
Thread diameter: 62 mm (type 2 inches MBT)

Connection
The blower comes with a union for 1-inch (33 mm) pipe.

Cable and plug
The blower comes with a 150 cm cable and an AMP plug. For a Mini J&J connection, an additional adapter is required.

Warranty
2-year Tubs Parts warranty

Note that the 2-year warranty does not apply to the carbon brush, also known as a motor brush, a graphite bonding agent that conducts the electrical current between stationary and rotating wires inside the motor. The carbon brush is a wearing part with a life expectancy of approximately 1500 hours.

Part numbers
LX Whirlpool : APW700-V2
Volition : 9WPA, 4WPA.
The "-V2" means that these models contain the new version of the motor. They are perfectly compatible with older models, without "-V2".

Plug types

AMP plug

J&J plug

in.link plug
