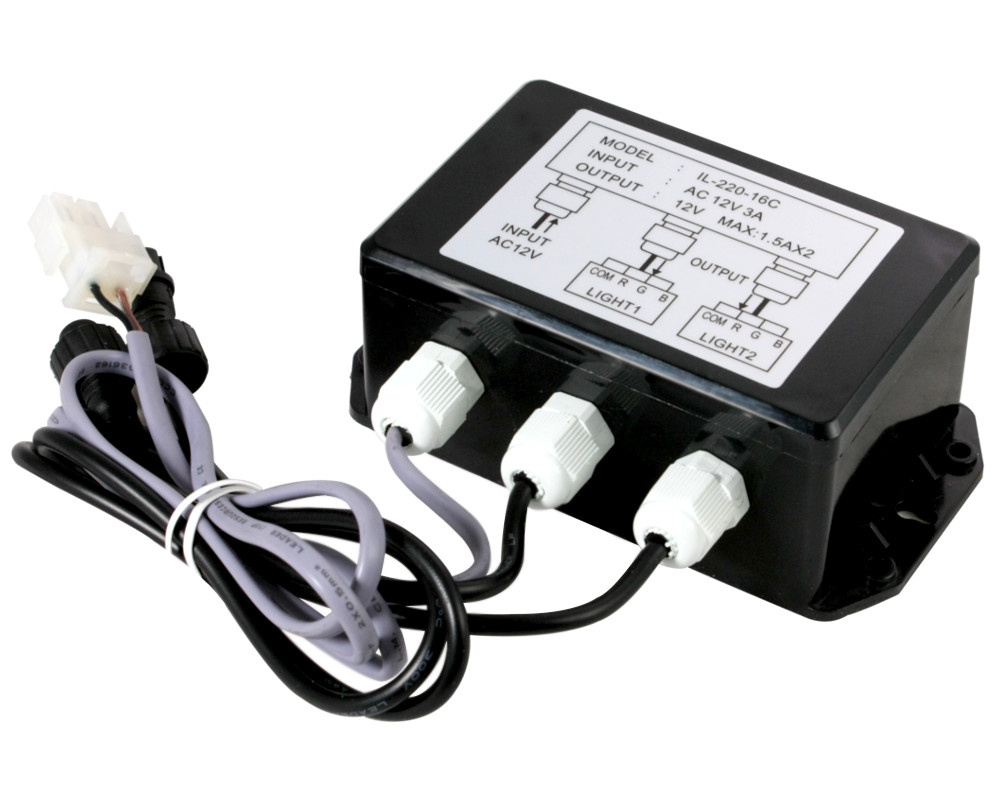

LVJ light controller with 2 outputs

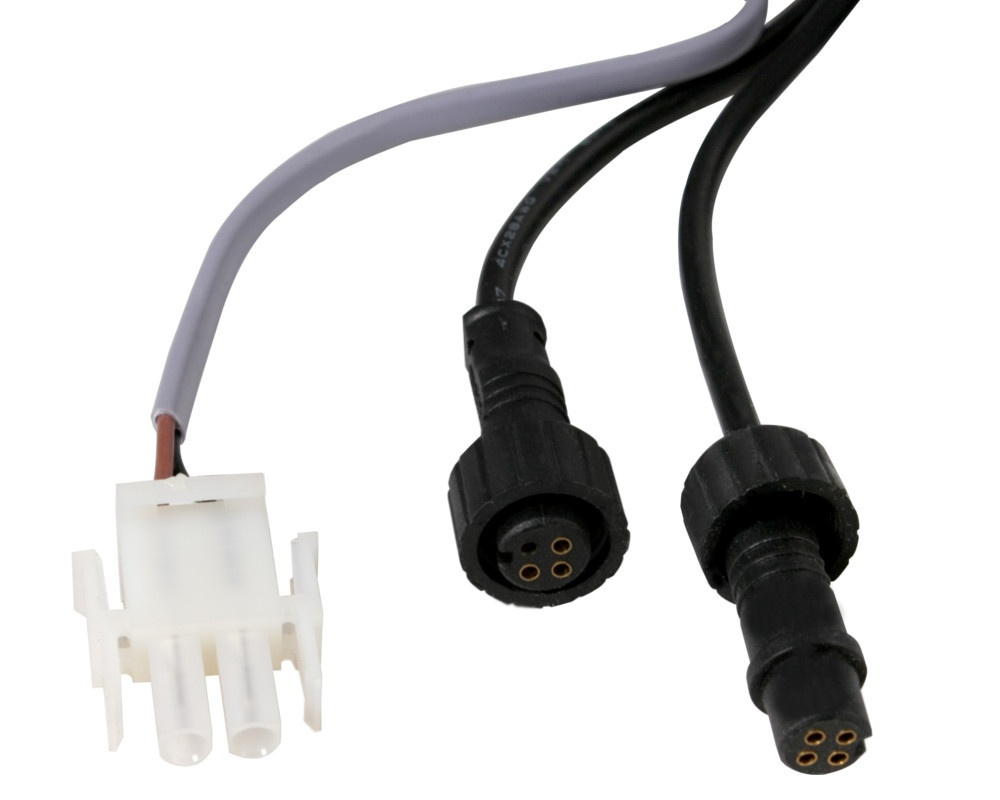

Thanks to its cable with a 2-pin male AMP plug, this control unit connects to a 12 V AC source such as Balboa or Waterway a control boxes, among others.

The LVJ light controller plugs into the standard power supply of this LVJ kit. You can connect several kits, and the control unit manages the color changes so that all LEDs remain synchronized.

With its two DIN RGB outputs, several LVJ kitscan be connected, and the control unit manages color changes so that all LEDs remain synchronized.

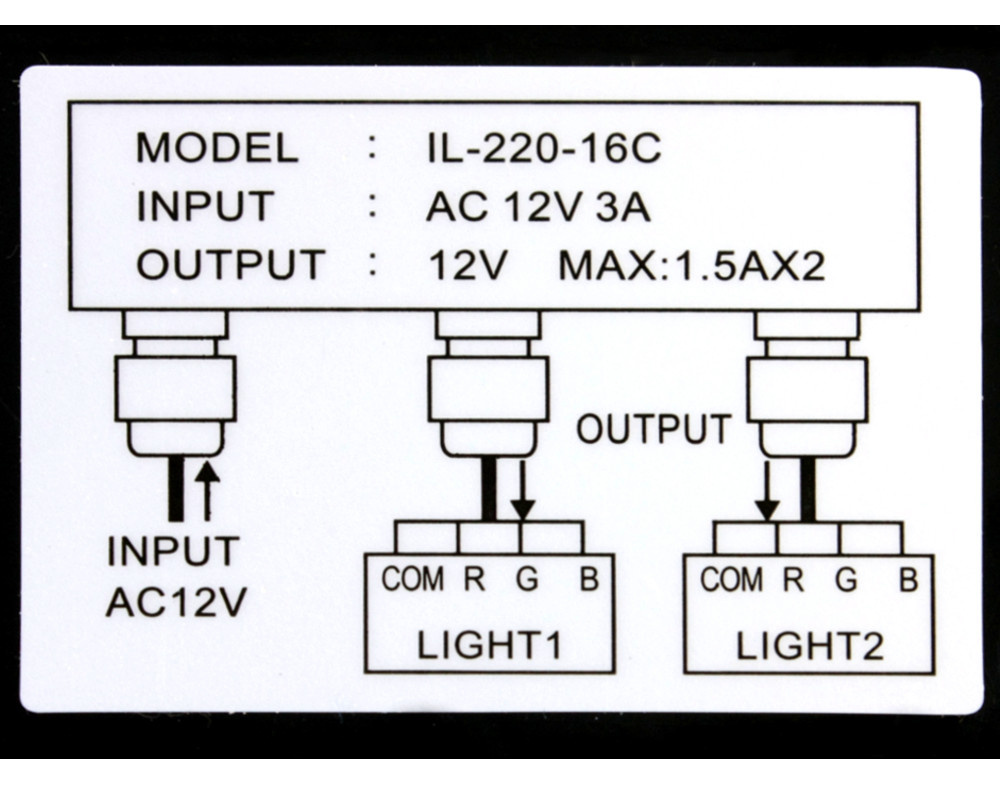

Connections
DIN socket with round end, to be connected to a 5" light assembly Option B. A daisy-chain connection with a 2.5" light assembly or 1-LED cable is then possible. This version of the controller can be replaced by a 1 output controller depending on the power of your installation.

Dimensions
130 x 70 x 49 mm

Features
Input voltage: 12V AC
Output voltage : 12V DC
Maximum power: 3 A (1,5 A X 2)
Maximum number of LEDs: 40

Part numbers
LVJ : IL-220-16C
