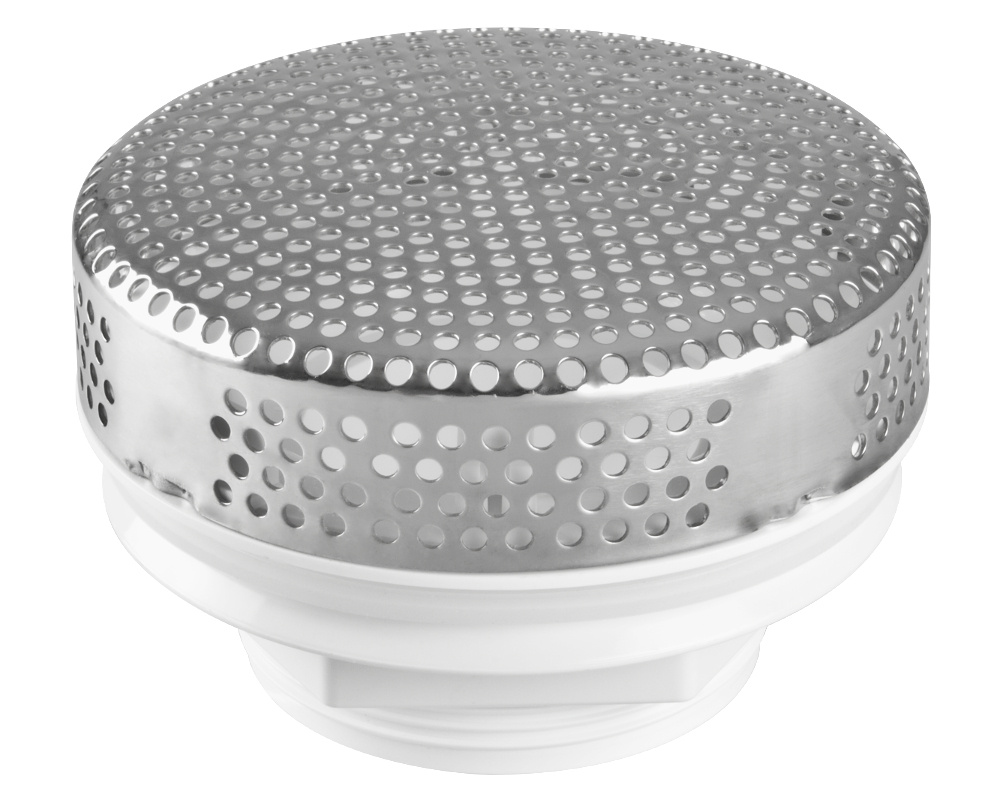

LVJ Crystal 2" suction

This LVJ suction fitting for portable spas with a rating of 200 GPM (45,5 m³/hour) connects to [3342 2-inch pipe, and is equipped with a stainless steel anti-vortex grille.

It is supplied with a fixing nut and a gasket, to be installed between the shell and the suction fitting.

Dimensions
Grille diameter : 127 mm
Grille thickness: 39 mm
Drill diameter : 83 mm
Inside diameter of fitting: 60 mm, for 2-inch pipe

Maximum flow rate
45 m³/hour

Part numbers
LVJ : L-3802S
Wellis / Phybris : ABE0290
