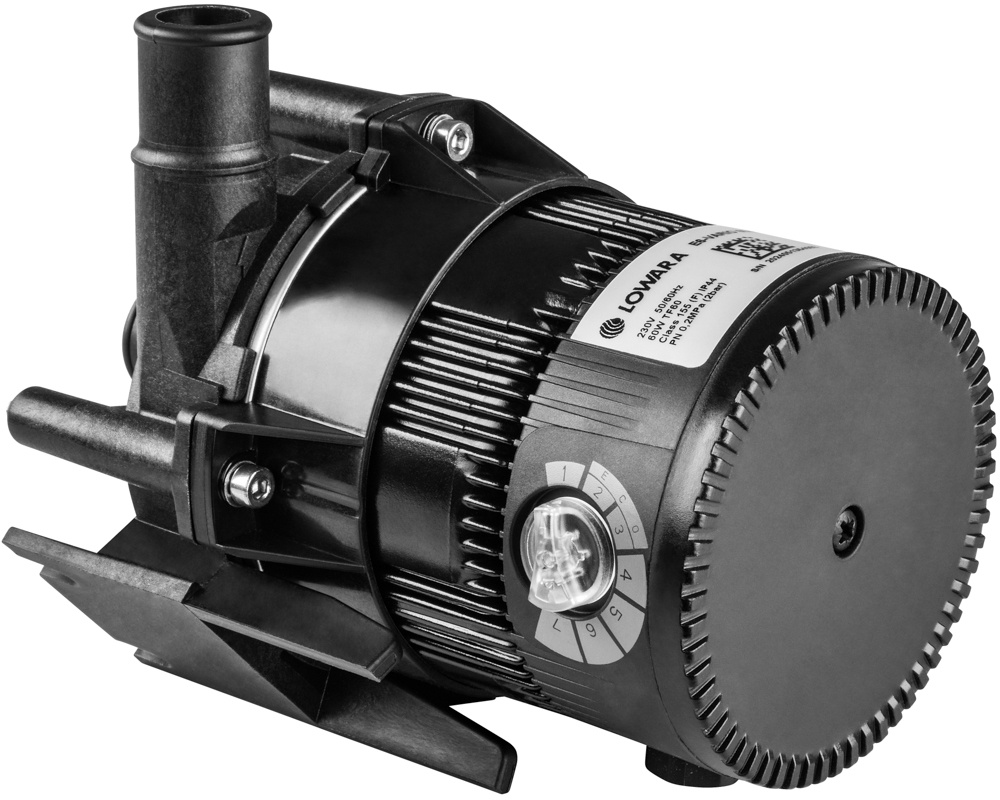

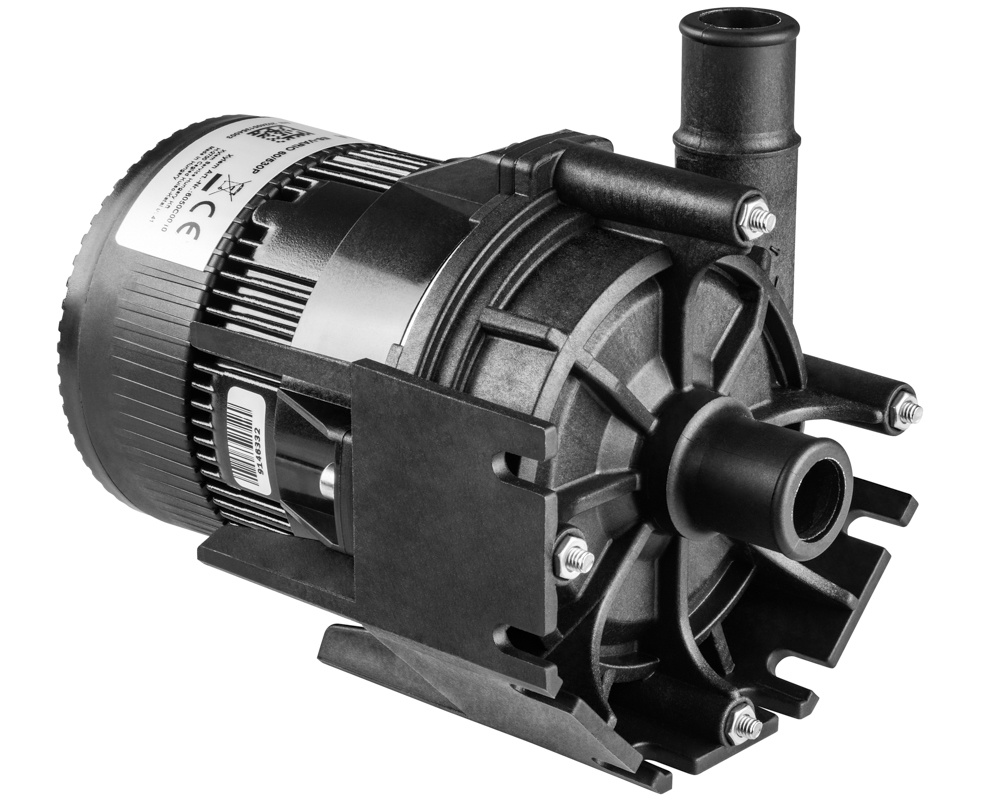

Laing E6 Vario circulation pump

The small E6 Vario circulation pump from Laing (Xylem) is used by many spa manufacturers (Sundance Spas and Jacuzzi, Canadian Spas, Artesian Spas, LA Spas, etc.) because of its high reliability. Its body is completely insulated from the motor, with no drive shaft or mechanical seals, eliminating any risk of water entering the motor.

Lightweight (1.5 kgs) and silent, this new E6 Vario version features a multi-speed variable speed drive with rotary knob to adjust pressure according to the flow rate required by the heater, saving almost 40% energy compared with a standard pump. Maximum power is 63W, the equivalent of the largest model in the previous Laing range, which supplied 130W:

Setting 3 = 65 watt
Setting 4 = 88 watt
Setting 6 = 115 watt
Setting 7 = 130 watt

Pipe connections
3/4-inch barb, connecting to 3/4-inch clear pipe using a hose clip.

Dimensions
Length: 154 mm
Width: 109 mm
Height: 124 mm

Technical specifications
Power: 9-63W, 50/60 Hz

Cable and plug
The pump is supplied without cable. If you are replacing an existing pump, you may be able to re-use your existing power cord.

You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.

Spare parts
The only replacement part of the Laing E10 pump is the rotor assembly (Ø 80 mm). Be careful not to confuse it with the Ø 68 mm version. Check the diameter of the part you want to replace!

Similar pump
The LX Whirlpool WE10 pump has the same motor power and thread size as the E10, and roughly similar dimensions. If you want to replace your pump with another model, you must check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
Laing Xylem Lowara : 6050C0010, E6 Vario 60/530P
