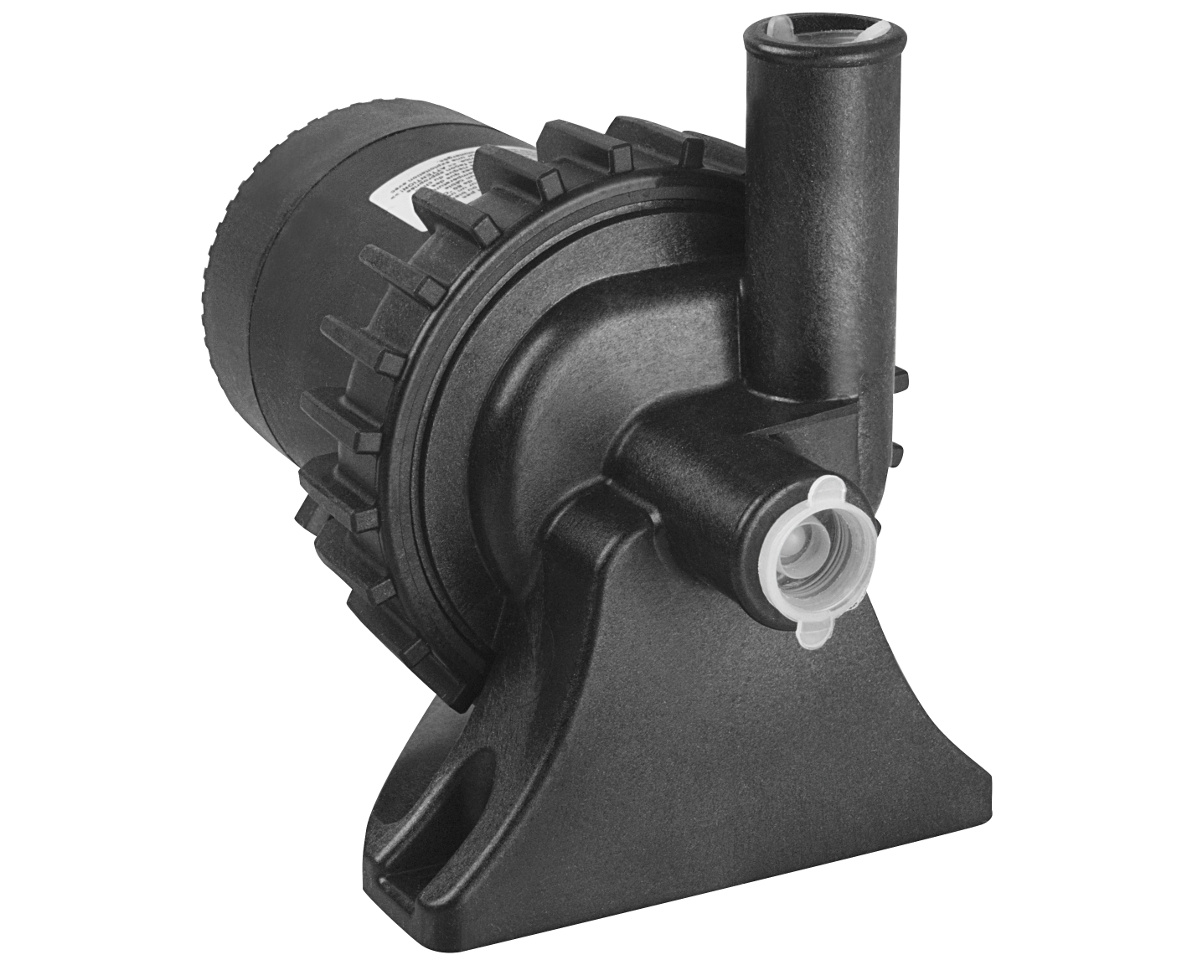

Laing E5 SilentFlo pump

The very light and compact E5 SilentFlo circulation pump by Laing (Xylem) is used by spa manufacturers Caldera, Hot Spring, Watkins and Tiger River, among others. It is specially designed for 24-hour operation.

The body of the E5 Laing is completely insulated from the motor, without any shaft or metal seal, which eliminates any risk of water penetration into the motor.

Dimensions
Length: 160 mm
Width: 900 mm
Height: 115 mm

Technical specifications
Power: 39W
Maximum flow rate: 38 litres/minute

Connections
Discharge and suction: 3/4-inch barb, with smooth male ends with an external diameter of 21 mm that fit into 3/4-inch flexible pipes.
Do not stick the hose to the pump; it is held in place with a clamp.

Cable and plug
The pump is supplied pre-cabled without plug (length 110 cm). If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.

Warranty
2-year Tubs Parts warranty

Part numbers
Laing: 74427 (replaces 73379), 74417, E5-NSHNNN2W14
