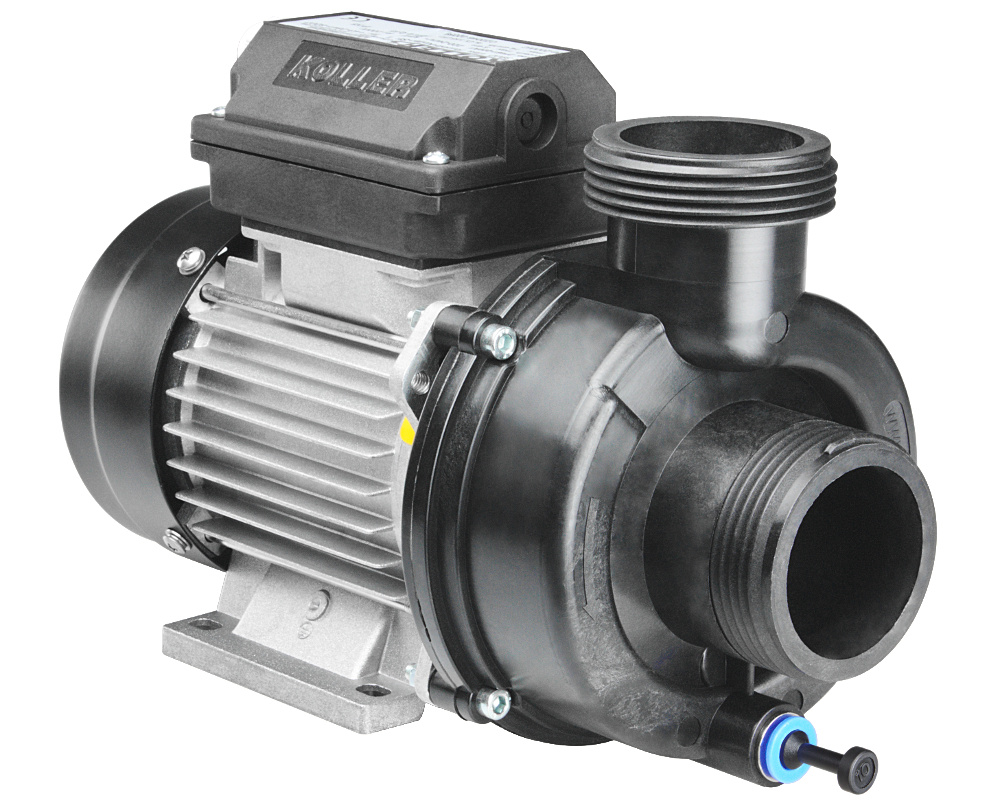

Koller 0.40 HP circulation pump, center suction

This Koller 0.40 HP circulation pump is found in many European spas.

The drain hole situated at the bottom of the faceplate is closed with a plug which is available as a spare part.

We also stock other Koller circulation pumps with center suction from the same serie including the 0.16 HP, 0.27 HP and 0.54 HP, as well as the self drain 0.27 HP and 0.54 HP models.

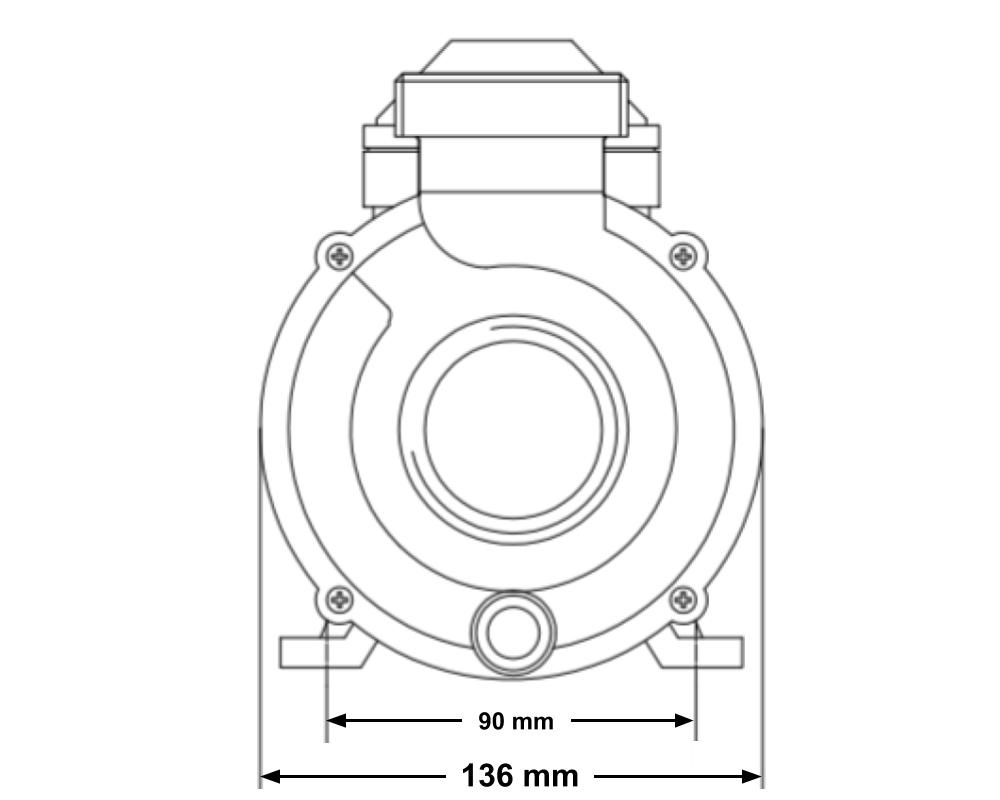

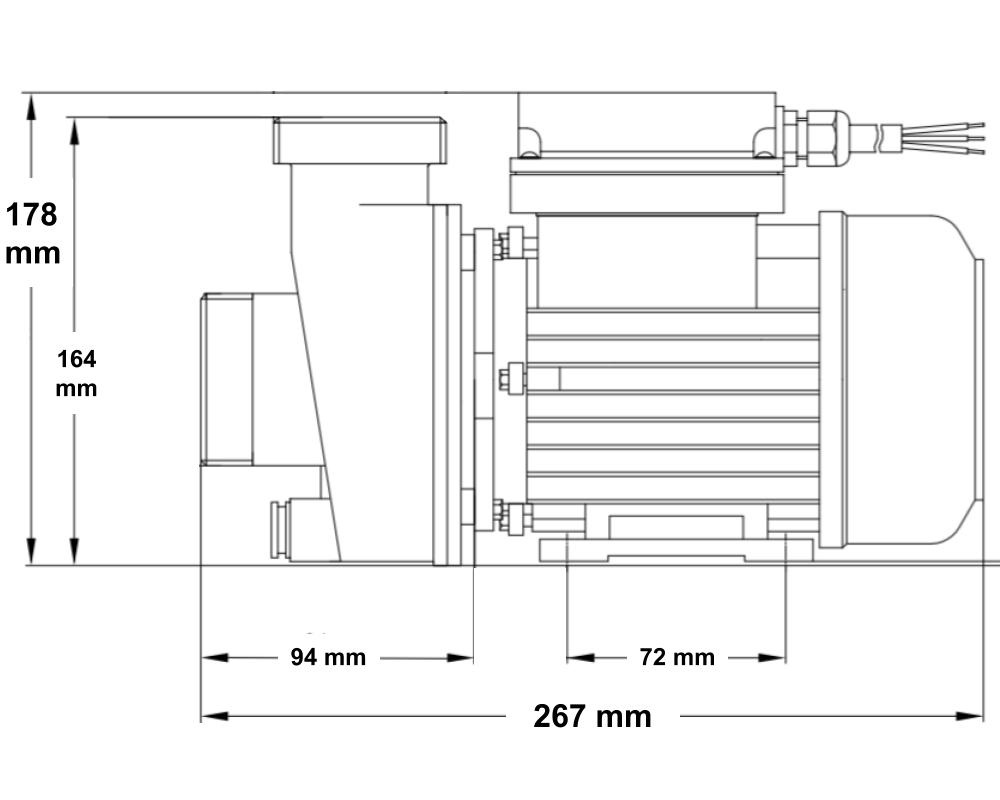

Dimensions
Length: 267 mm
Width: 136 mm
Height: 178 mm

Technical features
Power: 300 W (0.40 HP)
Speed: 2800 rpm

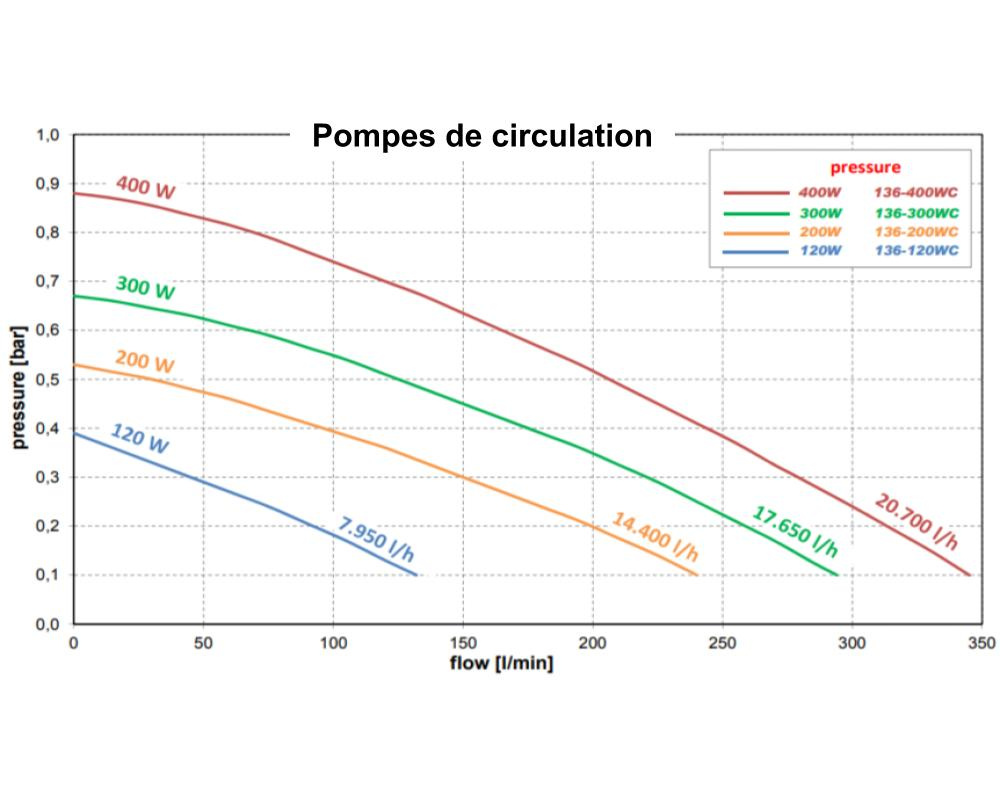

Maximum flow rate: 294 litres/minute

Connections
Thread diameter: 62 mm (1.5-inch MBT)
The pump unions are not included, but are available separately. We offer unions for 1.5-inch pipe

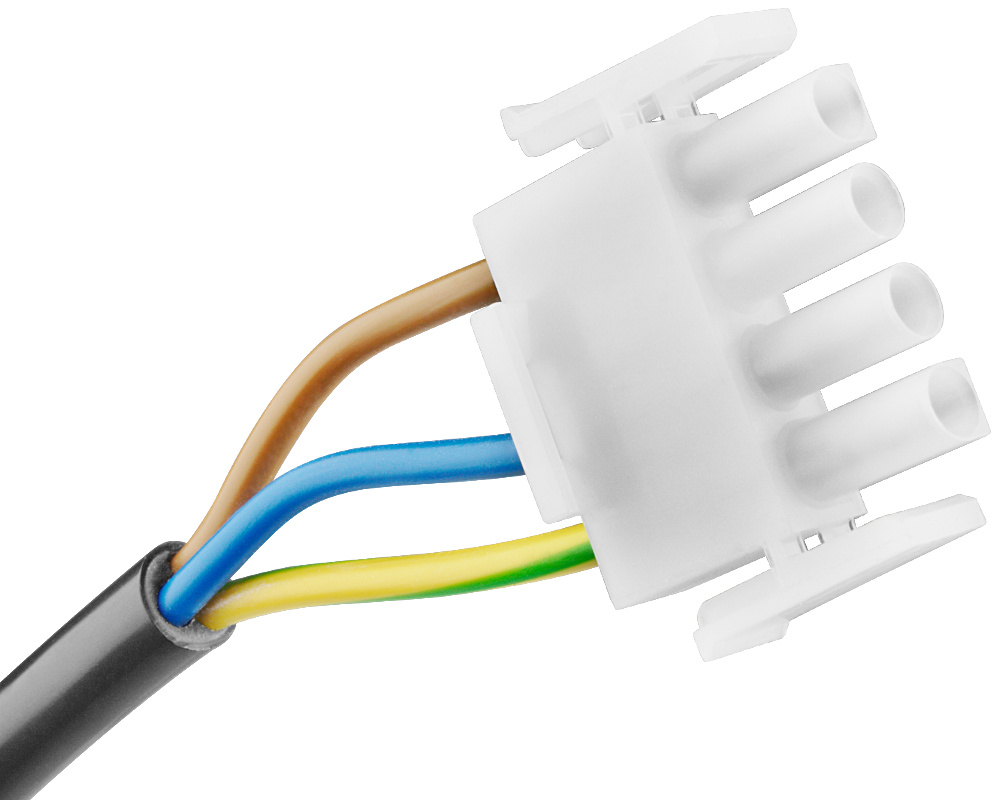

Cables and plugs
The Koller 0.40 HP circulation pump is delivered pre-cabled with an AMP plug (length 3 m). You can also choose to have it pre-cabled by our team with a mini J&J plug.

Warranty
2-year Tubs Parts warranty

Part numbers
Koller: 136-300 WC

Plug types

AMP plug

J&J plug

in.link plug
