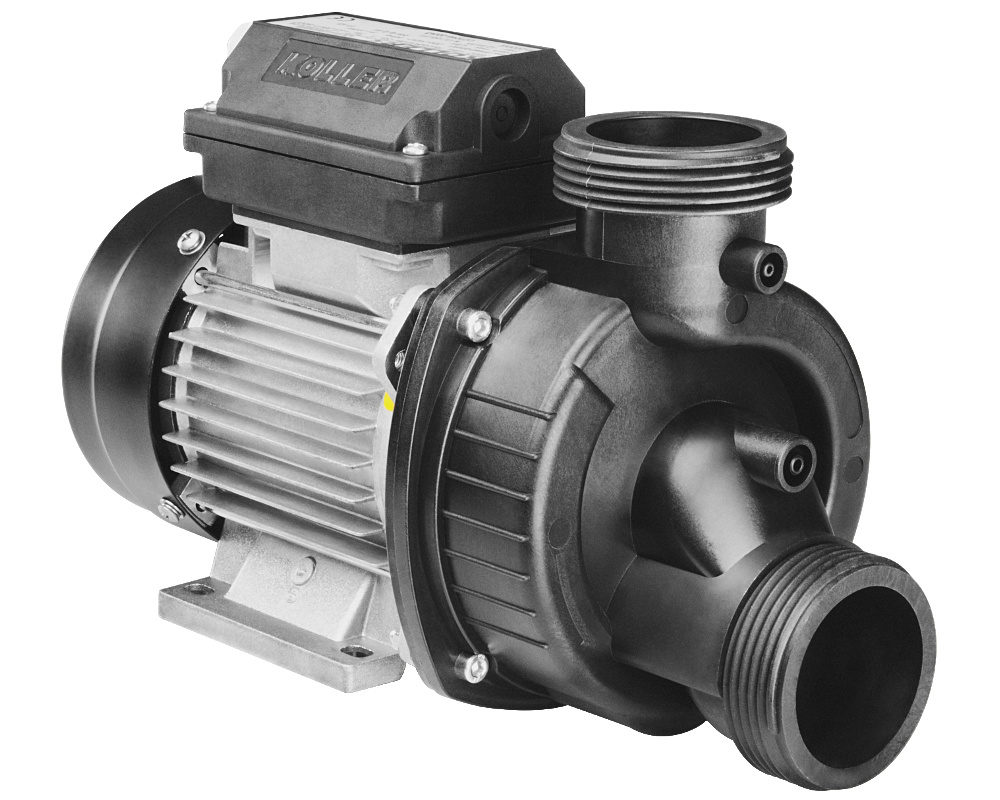

Koller 0.27 HP circulation pump, self-drain
This Koller 0.27 HP circulation pump is found in many European spas.
We also stock another Koller self-drain circulation pump from the same series with 0.54 HP, as well as the center suction 0.16 HP, 0.27 HP, 0.40 HP and 0.54 HP models.

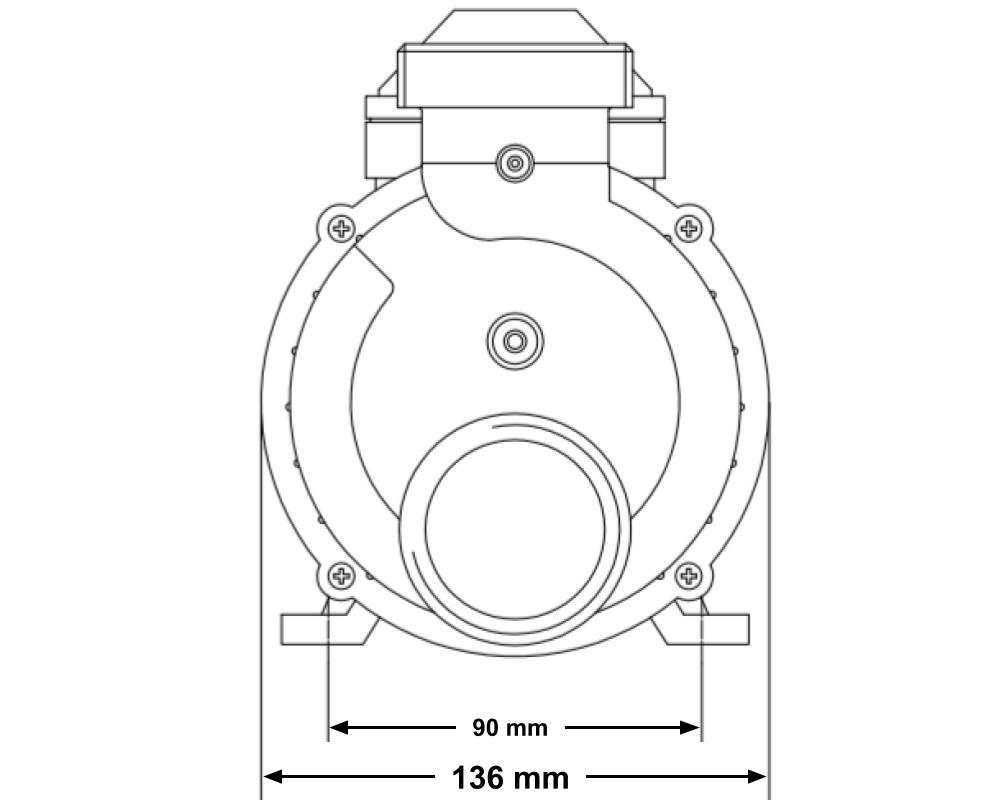

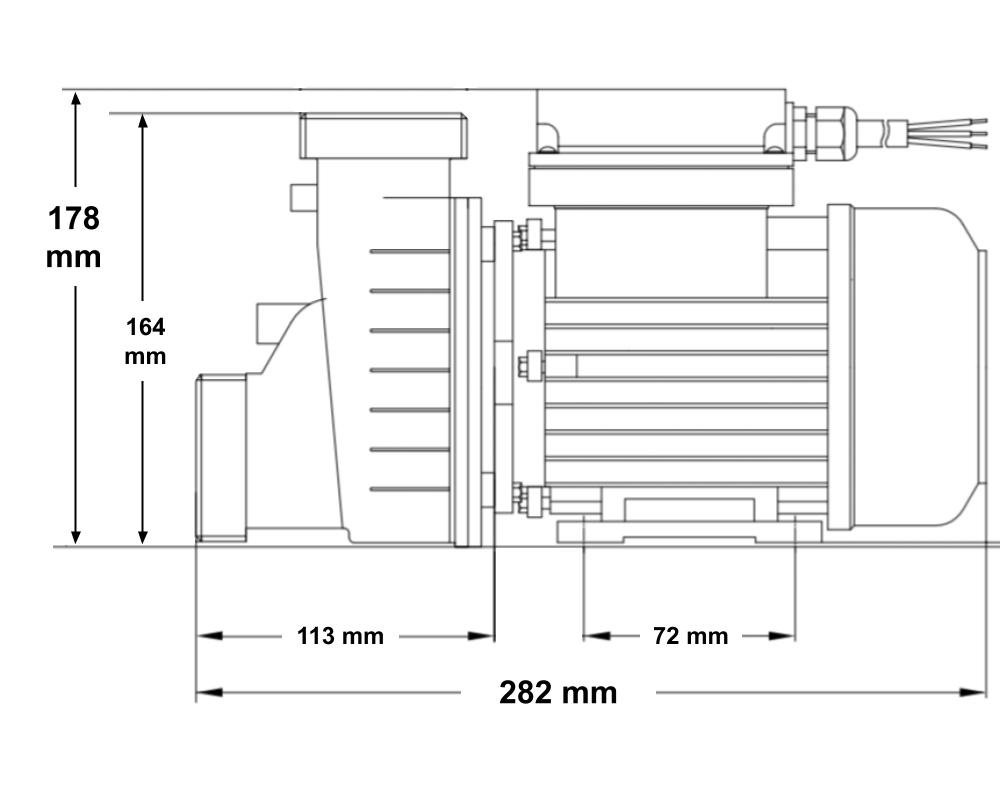

Dimensions
Length: 282 mm
Width: 136 mm
Height: 178 mm
Technical specifications
Power: 200 W (0.27 HP)
Speed: 2800 rpm

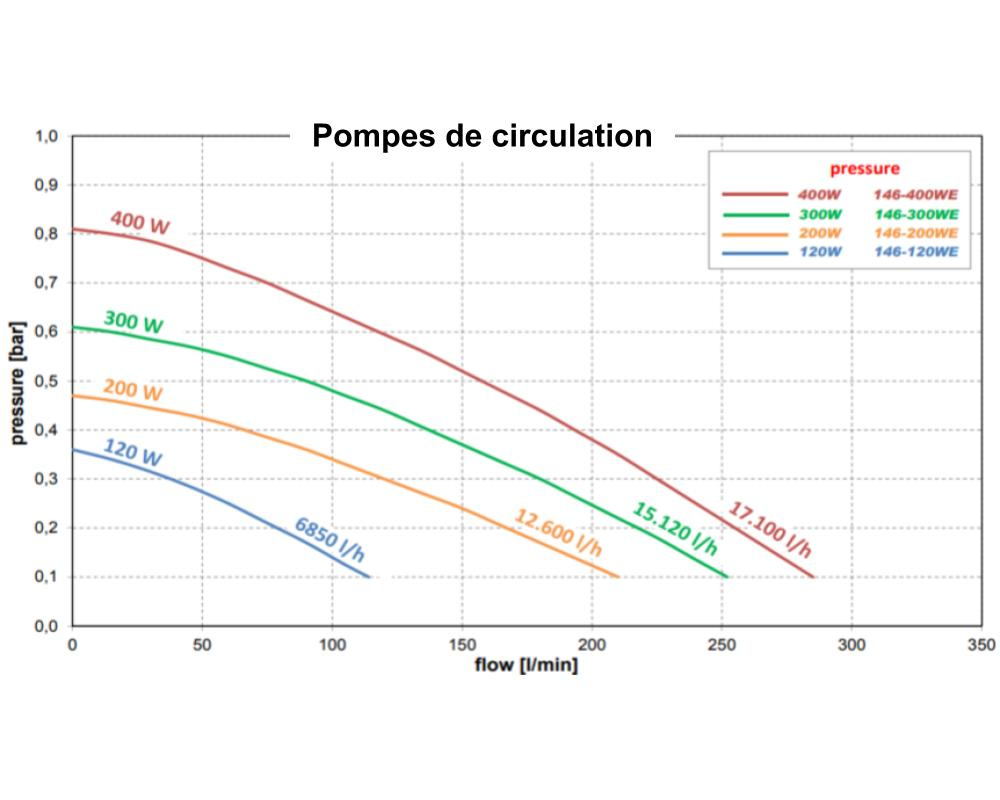

Maximum flow rate: 114 litres/minute
Connections
Thread diameter: 62 mm (1.5-inch MBT)
The pump unions are not included, but are available separately. We offer unions for 1.5-inch pipe
Cables and plugs

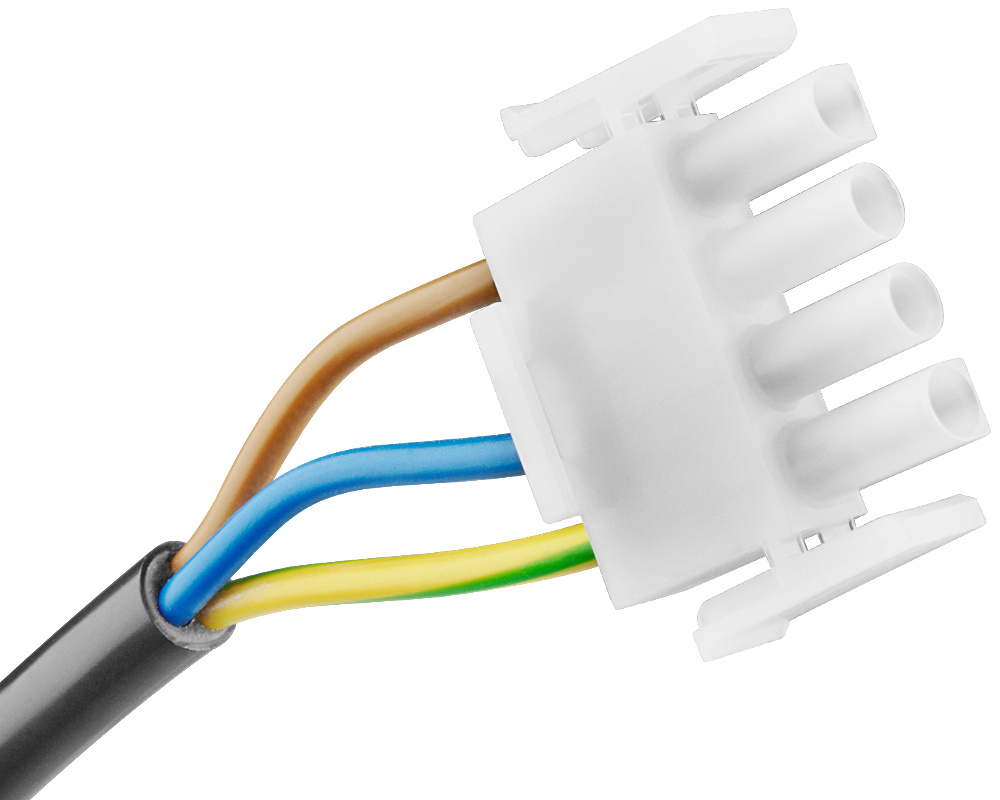

The Koller 0.27 HP circulation pump is delivered pre-cabled with a AMP plug (length 3 m). You can also choose to have it pre-cabled by our team with a mini J&J plug.
Similar pump
The Whirlcare Hydro Power 0,27 HP and the LX Whirlpool JA35 are a good option to replace this Koller pump. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.
Warranty
2-year Tubs Parts warranty
Part numbers
Koller: 146-200 WE
Plug types
AMP plug
J&J plug
in.link plug
