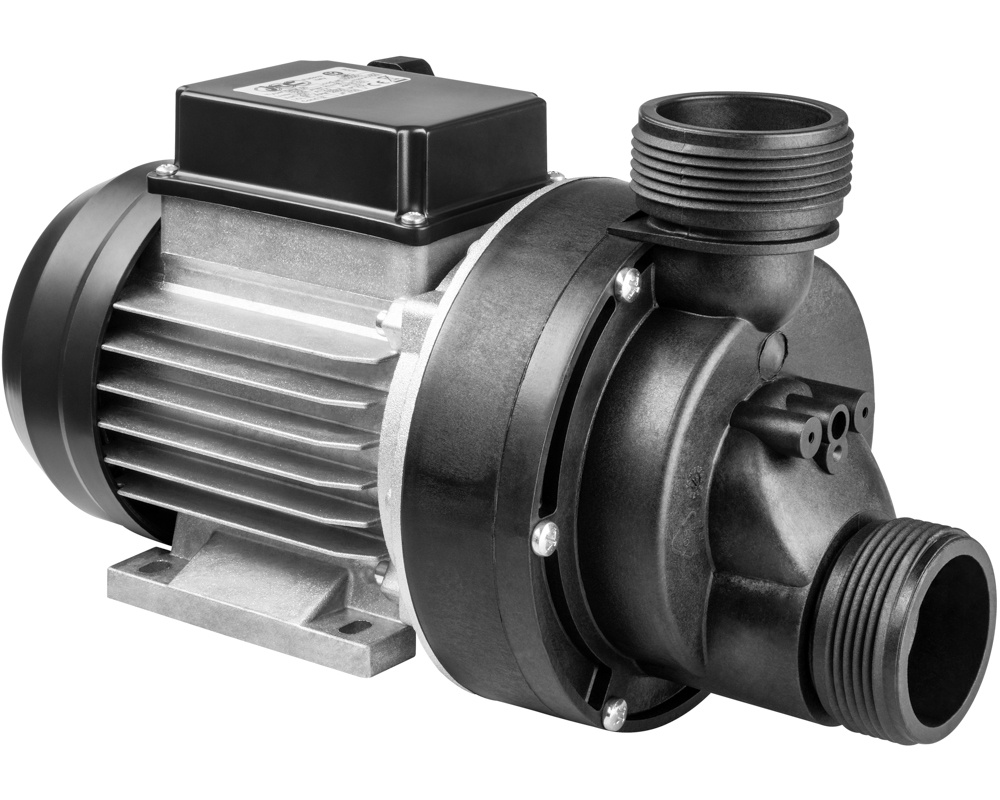

JTC DRM60 circulation pump, center suction
This 1.1 HP filtration pump from Italian manufacturer JTC is designed for circulation and is used on many European brand spas.
We also supply the DRM60 pump of the same dimensions, with a power rating of 0.71 HP.
Dimensions
Length: 352 mm
Width: 160 mm
Height: 219 mm
Technical specifications
Power: 810 W (1.1 HP)
Speed: 2800 rpm
Maximum flow rate: 295 litres/minute
Connections
Suction: 62 mm male thread (type MBT 1.5") for standard 1.5" connection
Discharge: 62 mm male thread (type MBT 1.5") for tee connection with 1” outlets
The PCF100 pump is supplied with a tee fitting, a standard fitting and a set of gaskets.
Cables and plugs
The JTC DRM80 pump is available pre-cabled without a plug. You can have it pre-wired by us with a AMP plug (length 130 cm) or a mini J&J splug.
A in.link plug is also available, but we recommend that you re-use your old cable if it's in good condition. Your pump may indeed be faulty for many reasons, but the power cable is rarely to blame.
Warranty
2-year Tubs Parts warranty
Part numbers
JTC: DRM80
