HydroAir ozone jet assembly

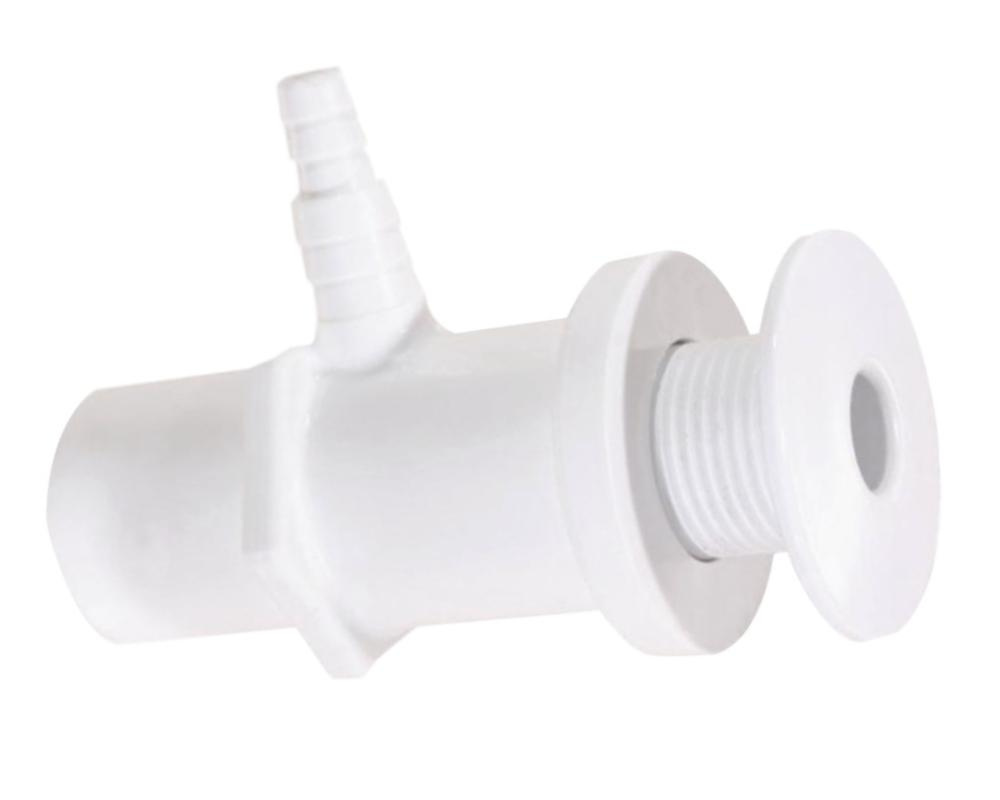

This Hydroair ozone jet assembly consists of a jet and a socket.

It is often installed as an all-in-one jet and ozone injector. The pressurised water enters through the back of the socket and sucks in ozone through a pipe directly connected to the ozonator.

We recommend you use a gasket and acetone-free silicone between the jet and the shell, to ensure everything stays waterproof.

Jet assembly dimensions
Drill diameter: 21/22 mm
Total length: 66 mm
Outer diameter smooth end (water): 27 mm or 3/4"
Inner diameter smooth end: 21 mm
Outer diameter barbed end (ozone): 10 mm or 7.5 mm

Jet dimensions
Length: 29 mm
Thread diameter: 20 mm

Connections
Smooth end (water): connects directly with a 1/2-inch pipe, or with a 3/4-inch pipe with a 3/4-inch female fitting.
Double barbed end (ozone): the wider end fits into a 3/8-inch pipe, or the thinner end fits into a 1/4-inch pipe, which is the standard size for ozone pipes.

Part numbers
Balboa / HydroAir: 10-2650
