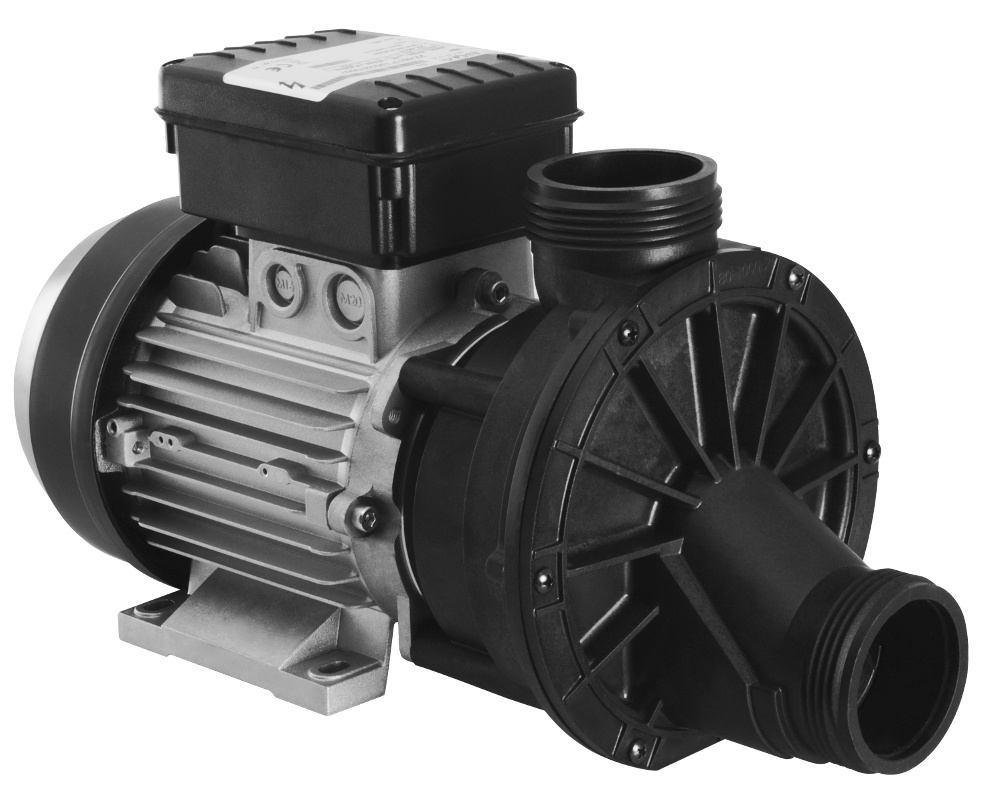

HydroAir HA460 self-drain pump

The HydroAir HA460 (formerly Perseus 460) pump is a powerful yet silent model, used by many spa manufacturers and offering excellent performance. This is a single-speed pump, used to operate massage jets in spas and on swimming-pools. It also has a center suction wet end.

This pump has an integrated air switch. If you don't know what this means, then you almost certainly need the version WITHOUT an air switch.

The wet end seal US Seal PS-1000 is available as a spare part.

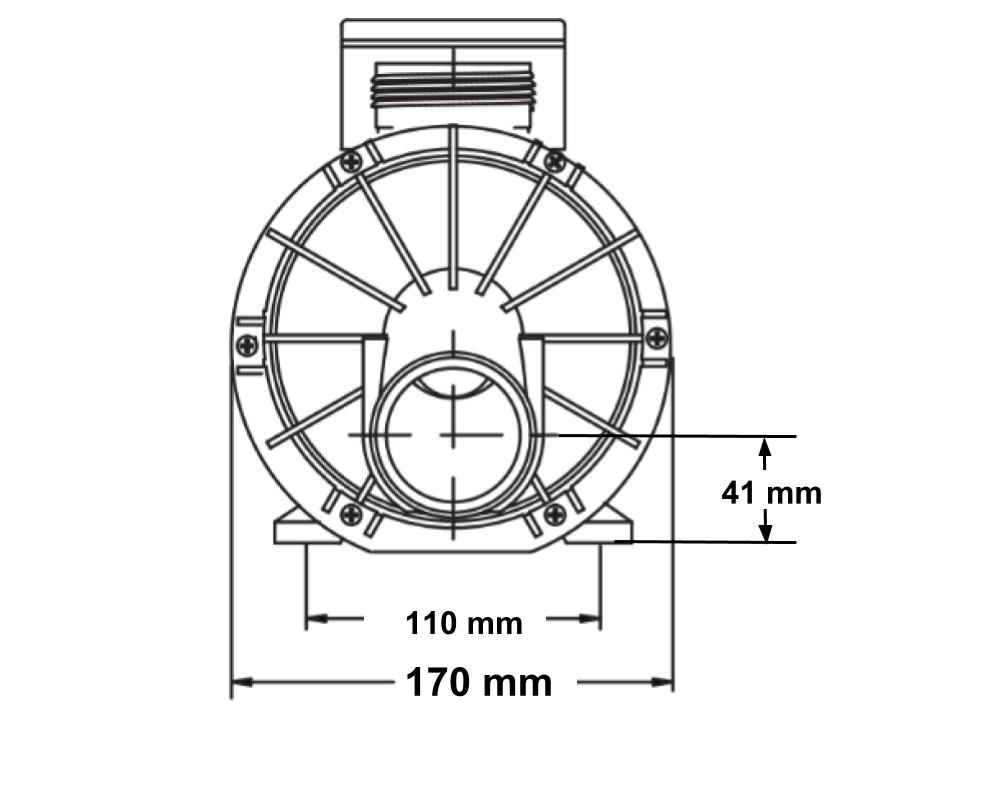

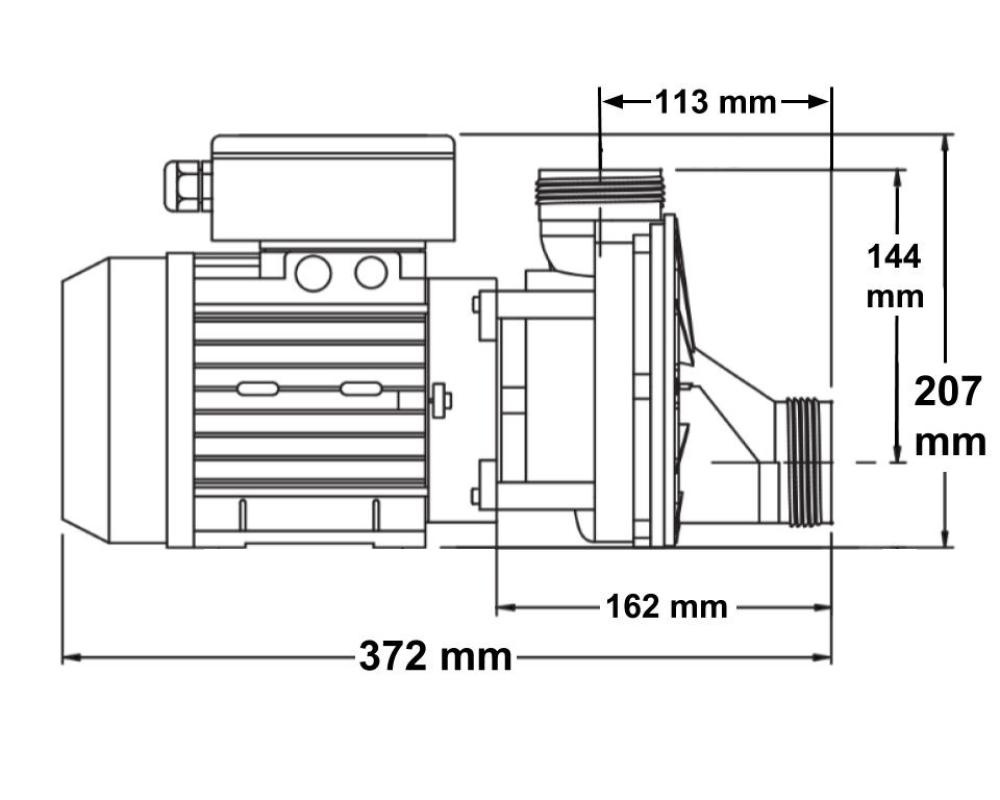

Dimensions
Length: 372 m
Width: 170 mm
Height: 207 mm

Technical specifications
Power: 1.3 kW (1.7 HP)

Pipe connections
Male thread (1.5-inch MBT) with a 62 mm outside diameter.

Cable and plugs
The HydroAir HA440NG pump is delivered pre-cabled without plug. If you are replacing an existing pump, you may be able to re-use your existing plug. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.

An in.link plug (220 cm long) is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Warranty
2-year Tubs Parts warranty

HydroAir part numbers
Standard version: 22-4617 (replaces 21-4605 and 21-4617)
Pneumatically-controlled: 22-46671 (replaces 21-46051 and 21-46171)

Plug types

AMP plug

J&J plug

in.link plug
