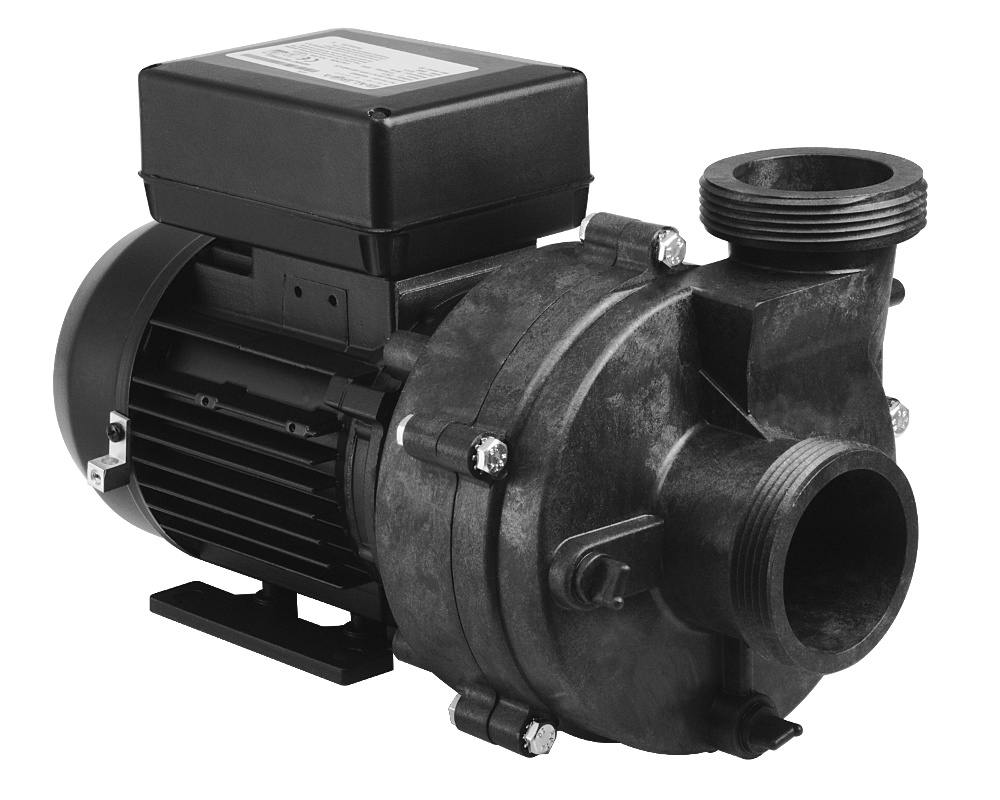

HydroAir HA440NG 2-speed pump
The HydroAir HA440NG pump is a popular model. It is used by many spa manufacturers and offers excellent performance. This is a 2-speed pump, used to operate massage jets in spas and it is also operate on swimming-pool.
The HA440NG replaces the older ITT HydroAir Magnaflow 440, which is no longer manufactured. It is also the best option currently available to replace the HydroAir Genesis pump with the blue wet end, but some piping modifications will be necessary, as the threads for connecting the pipes are different.
The new models of the HA440 have a wet end that is larger than the motor, so it does not lie flat. Depending on your installation, you will have to raise the motor part so that the pump is completely straight and horizontal.

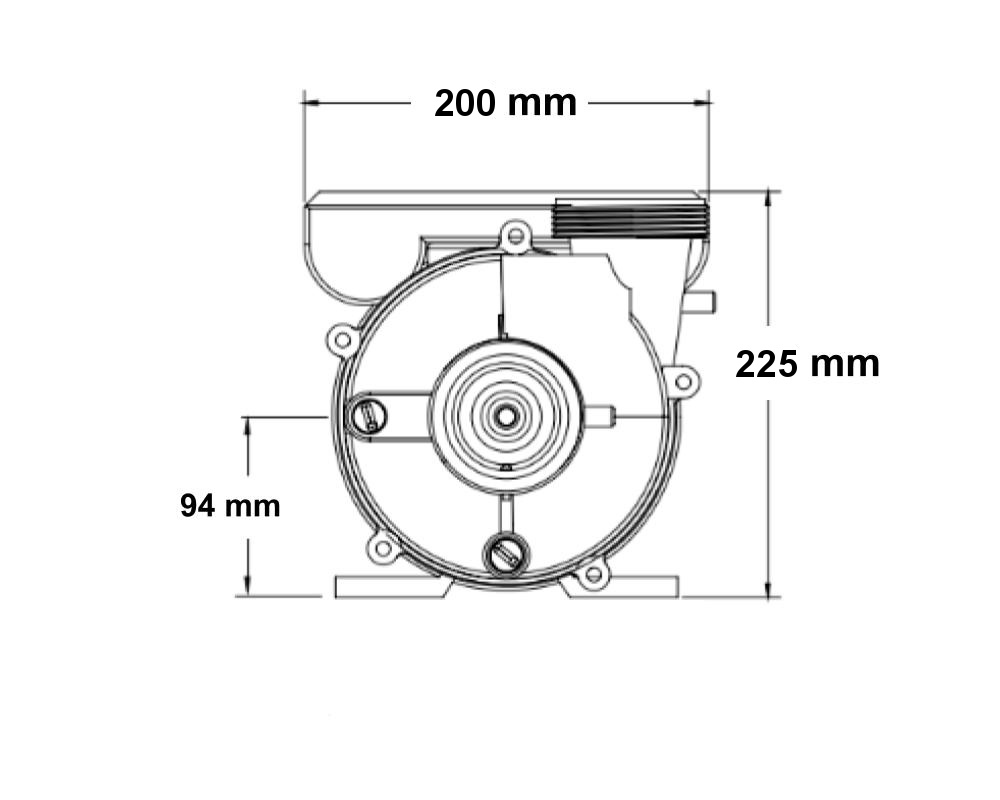

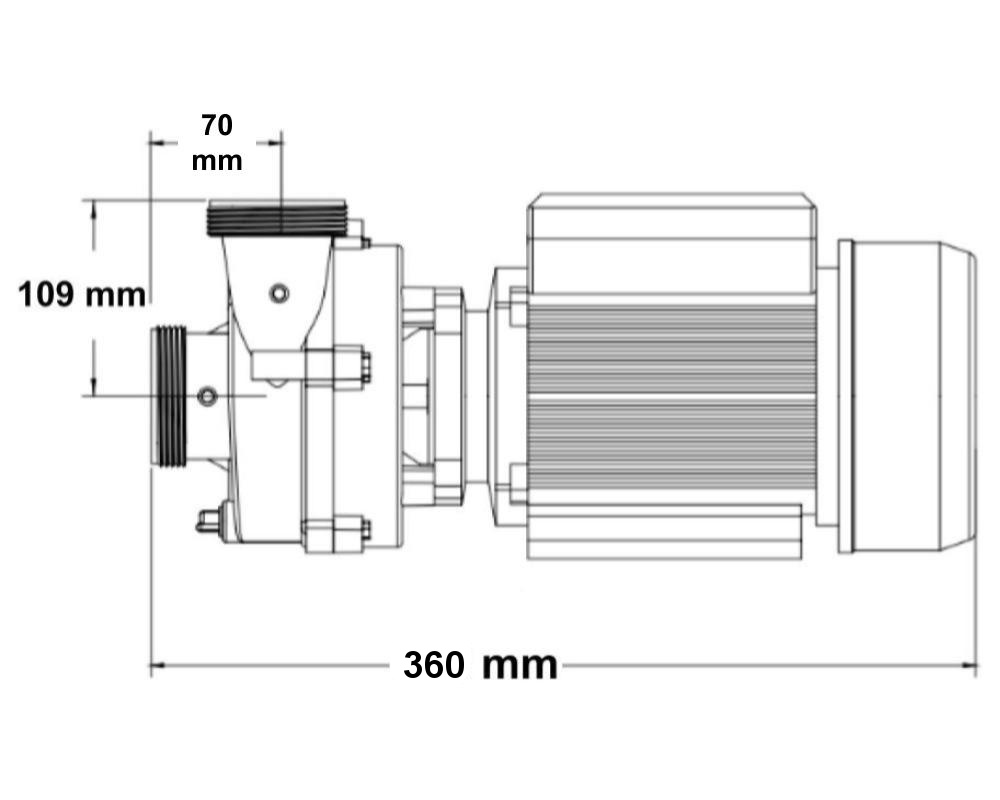

Dimensions (without pump unions)
Length : 360 mm
Width : 200 mm
Height : 225 mm
Technical specifications
Power high speed: 1.3 kW (1.5 HP)
Power low speed : 0.35 kW
Current high speed : 5.7 A
Current low speed : 1.5 A
Connections
Male threaded with an assymetric 2-inch MBT thread (outside diameter of 78 mm).
The Waterway Hi-Flo pump is normally connected to a 2-inch pipe.
Cable and plug
The HydroAir HA440NG pump can be delivered pre-cabled with an AMP plug (length 240 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug or an in.link plug (length 100 cm).
Warranty
2-year Tubs Parts warranty
Part numbers
HydroAir: 1023024, 1023033, 1023076
Dream Maker Spas: 405010
Wet end orientation
Standard exit
Exit to left
Exit to right
Plug types
AMP plug
J&J plug
in.link plug
