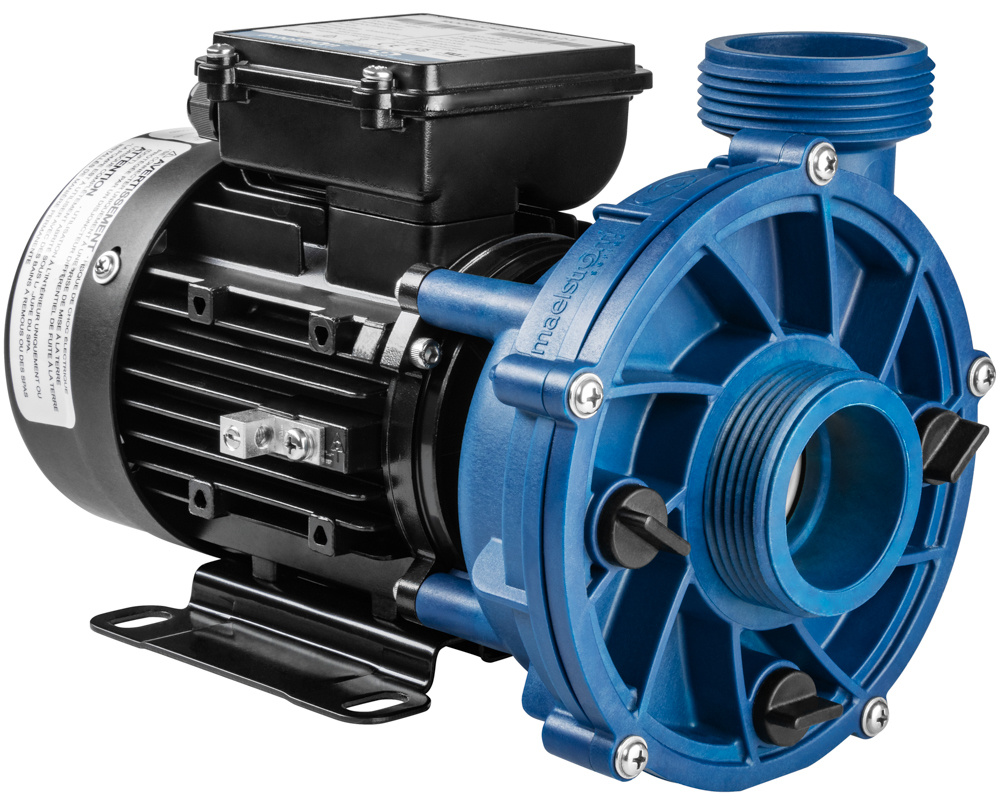

Gecko Maelstrom CMS-1 circulation pump

Like the MS-1 single and two-speed versions, Gecko's compact Maelstrom CMS-1 circulation pump features an in-house motor. This model has no openings in the motor block, guaranteeing excellent resistance to water infiltration.

The quiet (44 dB) Maelstrom CMS-1 offers one of the highest efficiencies on the market, with a flow rate of 320 liters/min, reducing filtration cycle times and energy consumption. It is a perfect replacement for Aqua-Flo's Circ-Master HP (CMHP).

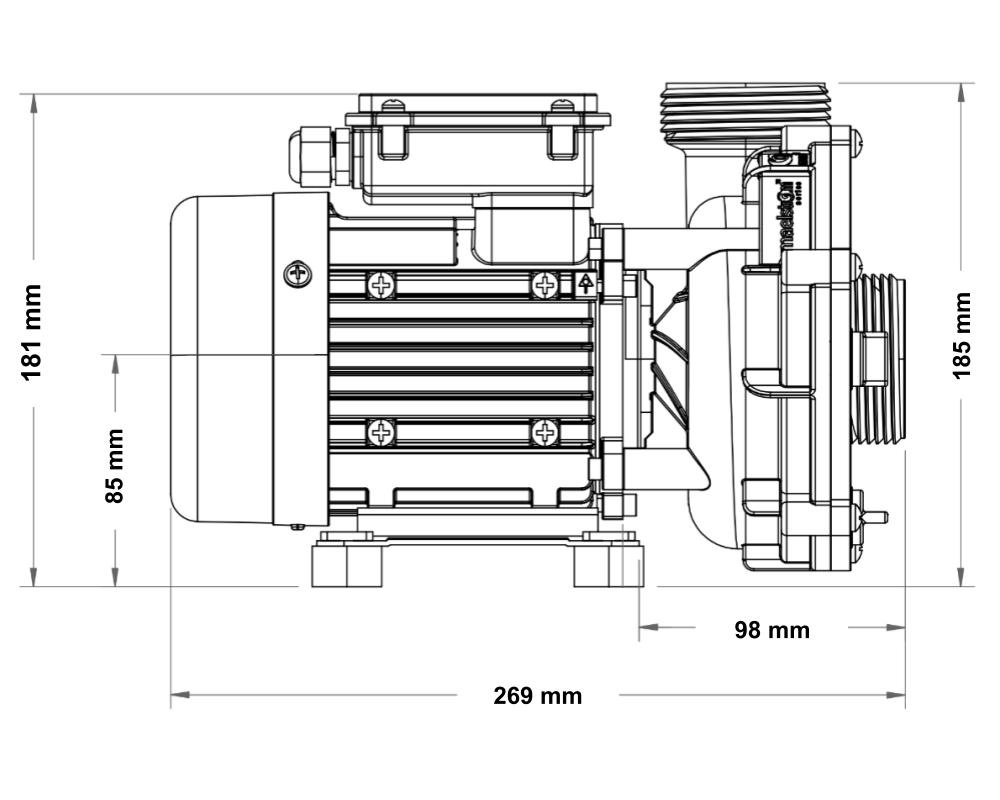

Dimensions
Length: 270 mm
Maximum width: 140 mm
Maximum height: 180 mm

Technical specifications
Power: 230 W (0.25HP according to motor plate)
Current: 1 A
Speed: 1400 rpm
Maximum flow rate: 260 litres/minute (85 GPM)

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT)
The Maelstrom CMS-1 is usually connected to 1.5-inch pipes. We also offer unions for 2-inch and 63 mm pipes.

Cable and plug
The Maelstrom CMS-1 pump is delivered pre-cabled with an AMP plug. You can also choose to have it pre-cabled by our team with a mini J&J plug.

Similar pump
The LX Whirlpool WTS50M pump is a good option to replace a Maelstrom CMS-1 pump. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
Gecko : 0810-690000

Wet end orientation

Standard exit

Exit to left

Exit to right

Plug types

AMP plug

J&J plug

in.link plug
