Gecko 3 kW universal heater

This heater equipped with a 3 kW Incoloy element has moveable fittings and two pressure switch taps. These unique features means that it will fit both the MSPA and SSPA control systems by Gecko, as well as many control systems by HydroQuip and SpaQuip. It measures 15" long and takes 2" heater unions.

It has several fixation points (you don't have to use them all!), including two that are attached with Jubilee-style clips, and can be moved sideways along the heater to suit your needs. The threaded taps are compatible with any of the pressure switches sold by tubs (use the DTEC-1 if in doubt). A threaded plug is included, to block up the attachment point that you don't use; buy a second one separately if you will not be using a pressure switch.

We also offer the C2550-0002 5.5 kW heater, which is similar to this one except for the power and the addition of an isolated slot on the C2550-0002 to mount a hi-limit sensor on the outside.

Dimensions
Length: 381 mm, without connectors
Diameter : 57 mm
This heater is usually connected to 2-inch pipes

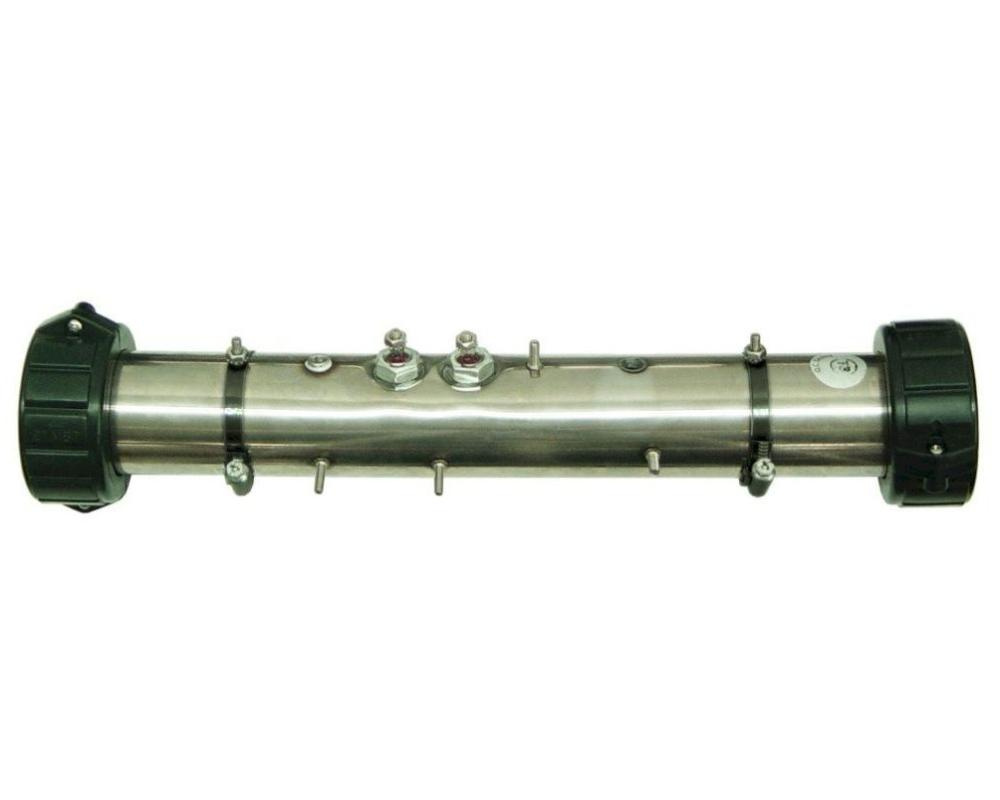

Positions of the fixed elements, from left to right in the photo
Threaded connection points : 107 mm and 203 mm
Heater element terminals : 144 mm and 176 mm

Warranty
2-year Tubs Parts warranty

Part numbers
Therm Products: C2300-5003
Sunrise Spas : WTY50105, WTY50108
Replaces Gecko 9920-100342 (SSPA) and 9920-100343 (MSPA) part numbers

Also replaces 20-00282, 26-0800-4S-K, 48-1530-RP-GEK, C2300-0601, C2300-0601-2, C2300-0601ET, C2300-0601ET-G, C2300-0800, C2300-0800-1, C2300-0800-2, C2300-0800-2Z, C2300-0800ET, C2300-0800ET-G, C2300-0801ET, C2300-5003, 26-0800-5T-K, C2300-5200-4TI, C2300-5003Z.
