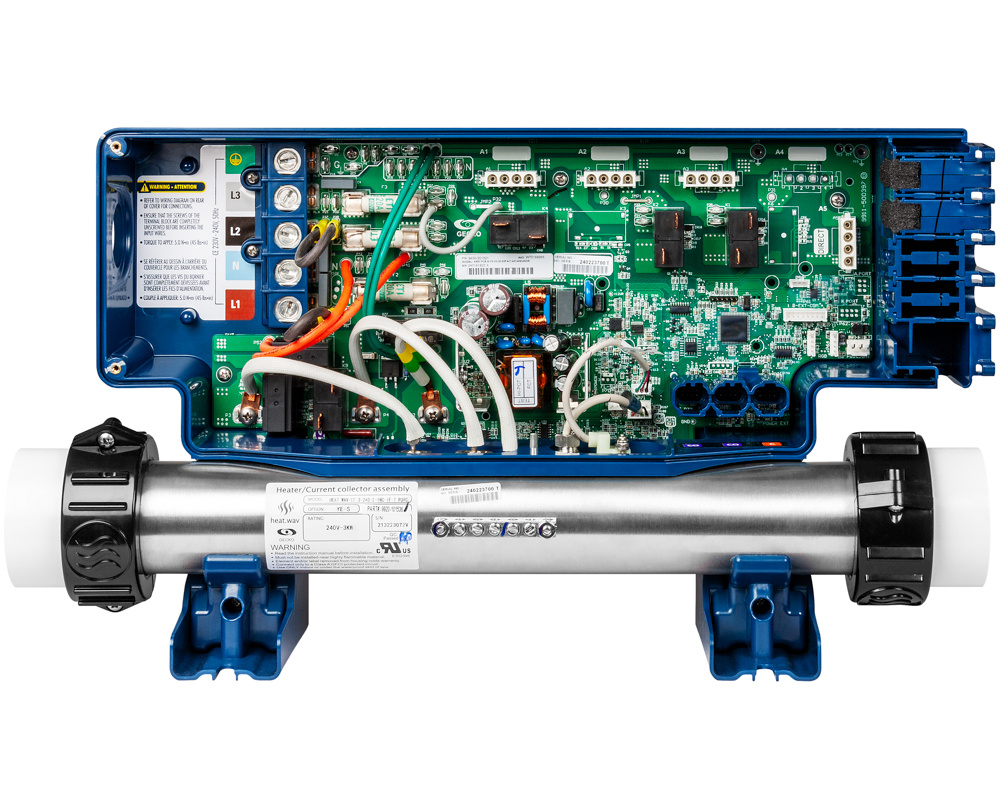

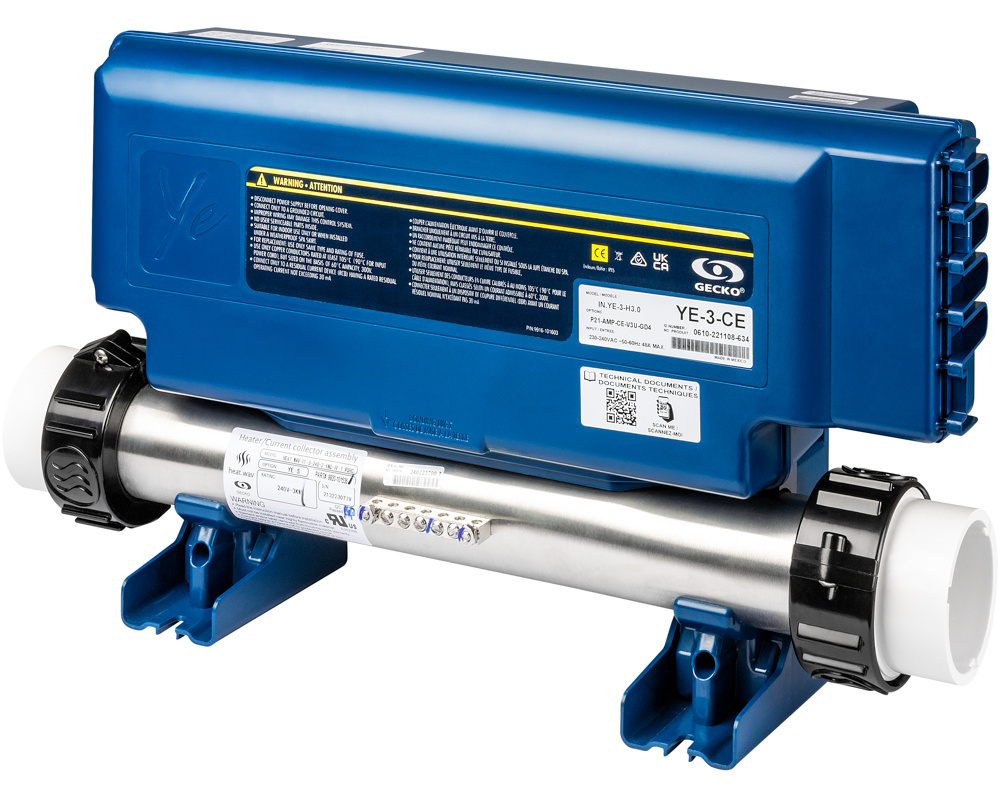

Gecko in.ye-3-V3 control system
The Gecko in.ye-3 control system gets a makeover with the introduction of the V3 version. Ideal for entry level spas and just as easy to use and reliable as V2, the in.ye-3-V3 also features an optimized processor and larger external memory and relay capacities.
The V3 can still manage up to 3 elements : pump 1 with 1 or 2 speeds, pump 2 with 1 or 2 speed, circulation pump or ozonator. Note that a two-speed pump will take the place of 2 elements.
Plus, this in.ye system is designed to work seamlessly with in.temp heat pumps like the 5 kW and in.temp mini versions. To enable this compatibility, ensure the inclusion of the in.ye-v3 extension board (to be purchased separately).
The in.ye-3 is equipped with a 3kW heater featuring the in-flo system, an all-electronic dry-fire protection that eliminates the burden of adjustments, calibrations and failures associated to usual water flow sensors.
The very simple configuration is done via the keyboard by selecting one of the pre-recorded configurations. Please use the installation guide provided with your system (be aware of the software number of your system!). If you have any questions about the configurations, please do not hesitate to contact us.
No matter which configuration you choose, the system is also equipped with a 230V output for an ozonator, an auxiliary 230V output (music, for example) and a 12V DC output. The in.mix 300 lighting console is integrated.

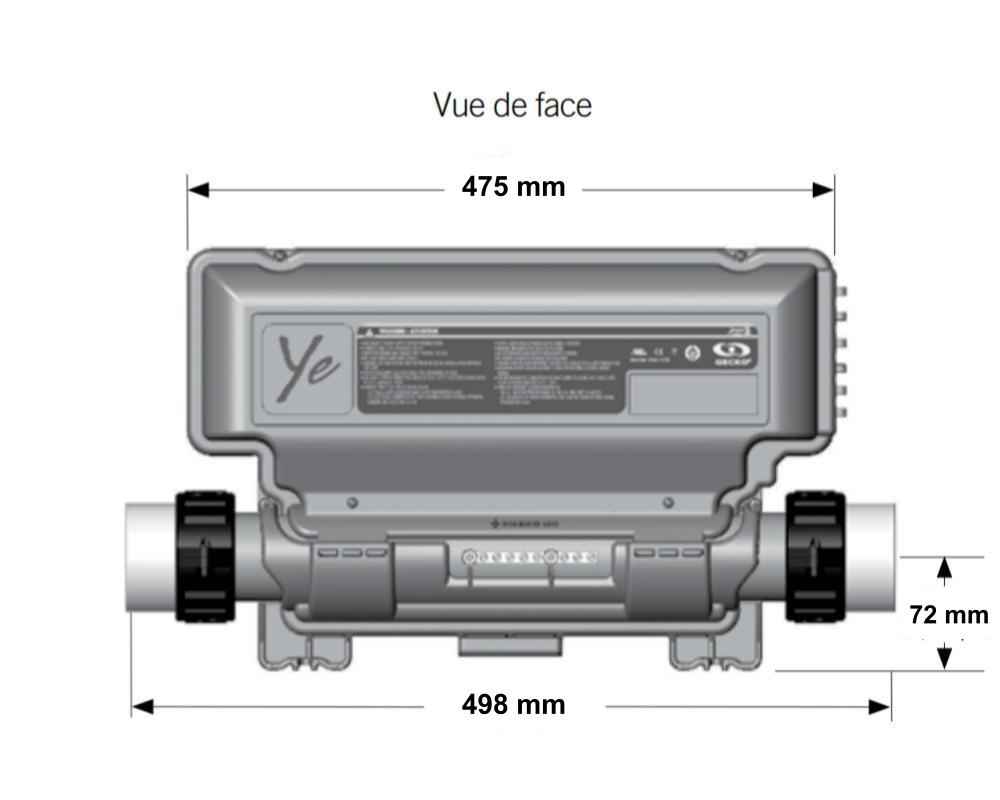

Dimensions
Box width: 475 mm
Max. width with connections: 498 m

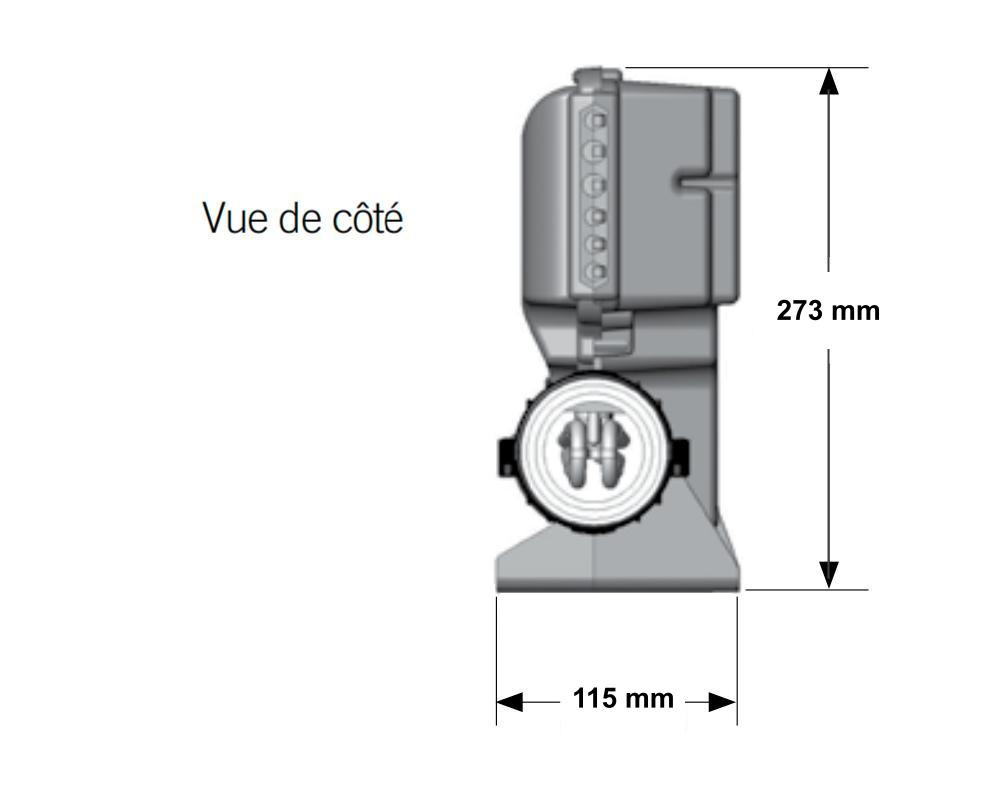

Height: 273 mm
Depth: 115 mm
Plumbing connections to heater: 2-inch (connections and o-rings included)
Technical data
Electrical supply : 230V, 50Hz. The system is delivered for single-phase supply. Please contact us if you require a two-phase or three-phase supply.
4 230V AC connections on 4 male pins AMP output connectors
Lighting: 12V DC connection, 1.3A max, only compatible with Gecko's in.lu.me lighting system
3 outputs for in.link plugs: 1 main keypad connector and 2 communications link (in.stik, in.terface, in.touch2, in.clear, in.grid and in.stream2)
Compatible with the following keyboards
Main : in.k200, in.k300, in.k336, in.k8, in.k35, in.k450, in.k500, in.k600 (the simplified interface only), in.k800, in.k1000, in.k1001
Auxiliary : in.k120
Warranty
2-year Tubs Parts warranty
Part numbers
Gecko: 0610-221108-634
