Floating level sensor

This level sensor is mainly used in the balance tanks of overflowing spas, as part of the automatic filling system. The rod is fixed through the tank's wall, and the small floating valve tilts depending on the water level.

The floating part of the sensor can be oriented downwards so that contact opens when the water level is below the sensor, or upwards so that it opens when the sensor is underwater.

We recommend you install it facing upwards if possible, because when it is facing downwards it can be disloged by waves in the balance tank, especially during filling.

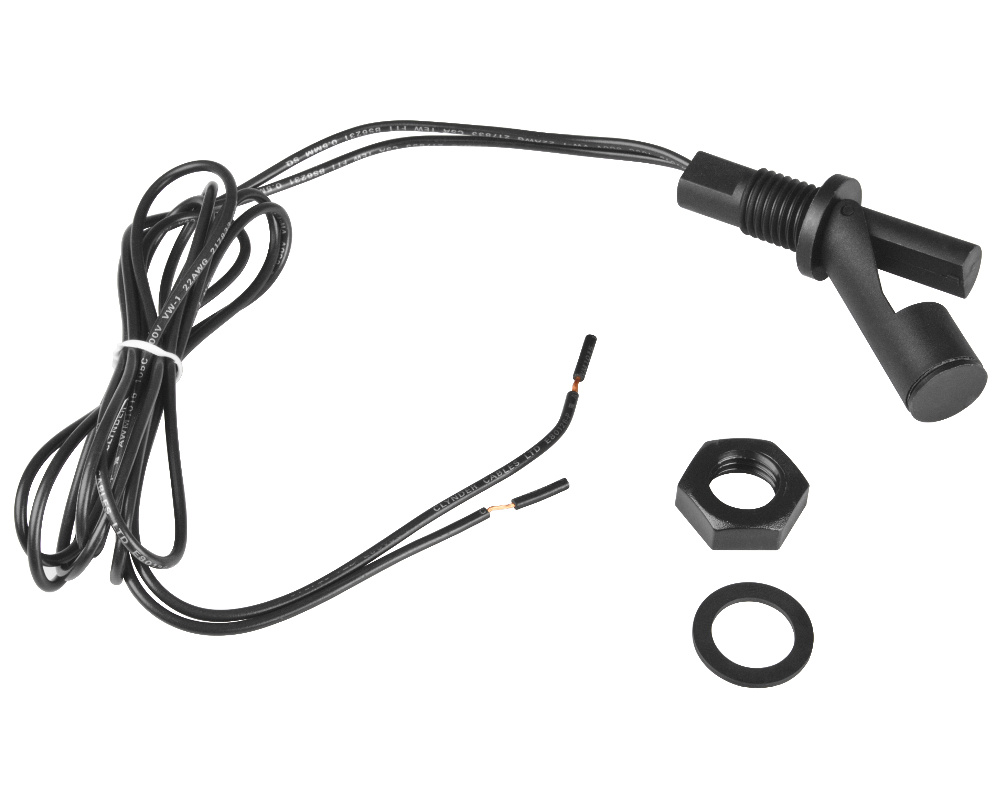

The float switch is fitted in a 16.5 mm diameter hole in the tank from the inside and secured by a nylon nut on the outside.

Technical specifications
Body Material: Nylon
Cable Length: 1m
Maximum Current: 600 mA
M12 plug connection

Part numbers
Cynergy3 : RSF43Y100RF
