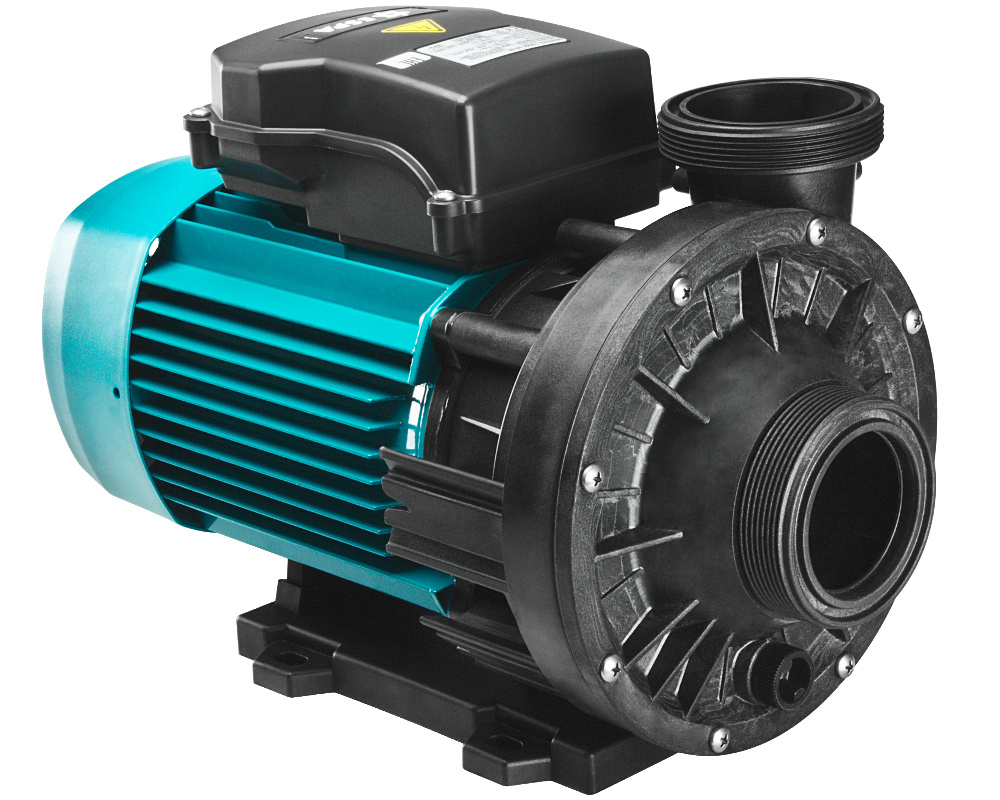

Espa Wiper3 2-speed pump

The Wiper3 2-speed pump by Espa is used by several spa and hot tub manufacturers, including Aquamarine. When operating at low speed, the water is efficiently filtered; at high speed, the pump powers the massage jets in the spa.

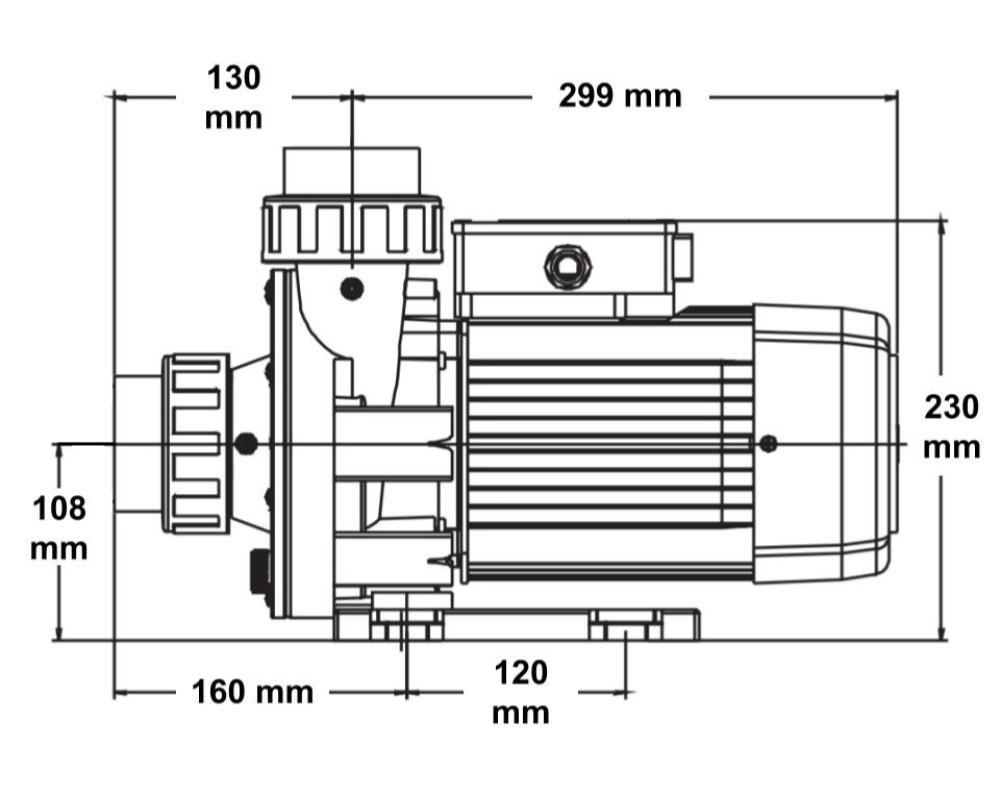

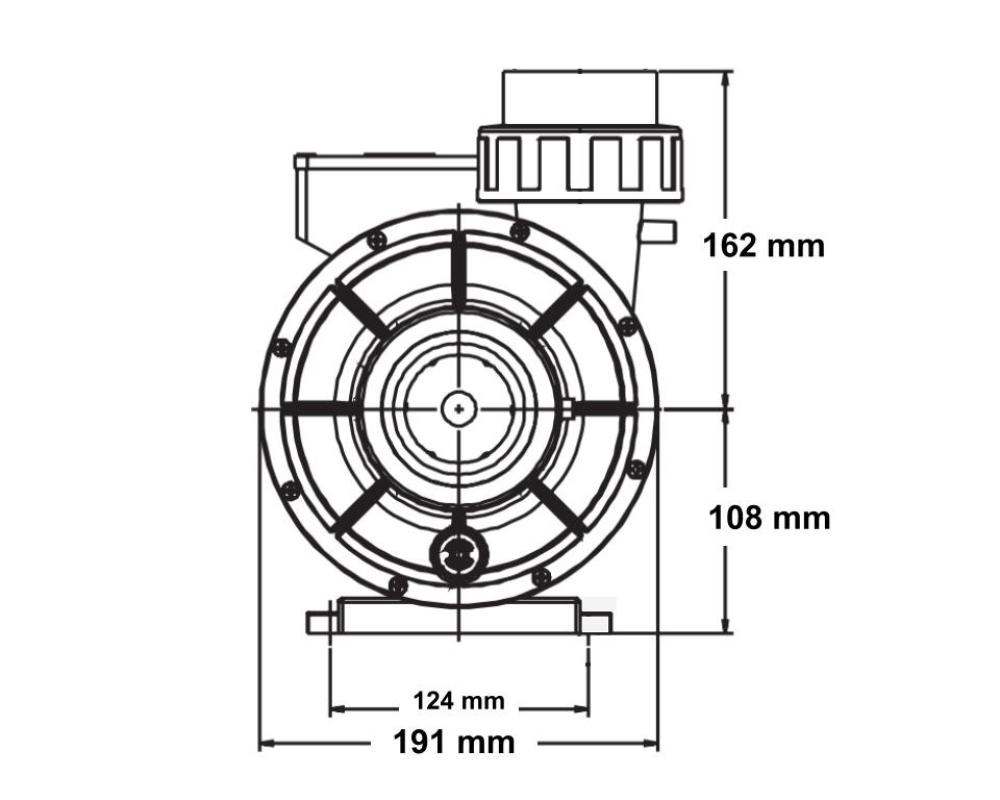

Dimensions
Length: 299 mm (with the intake union)
Height: 230 mm (with the outflow union)
Width: 191 mm

Technical specifications
This Espa Wiper3 pump is available in three power ratings :

150M: Power 1.4 kW high speed (0.35 kW low speed)
200M: Power 2 kW high speed (0.4 kW low speed)

Connections
Inflow and outflow: male thread with a 78 mm outside diameter.
The pump is supplied with two pump unions (including gaskets) for 63 mm pipes.

Cable and plug
The Espa Wiper3 pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug, a mini J&J plug or an in.link plug (100 cm long).

Warranty
2-year Tubs Parts warranty

Part numbers
150M: PP04410
200M: PP04417

Plug types

AMP plug

J&J plug

in.link plug
