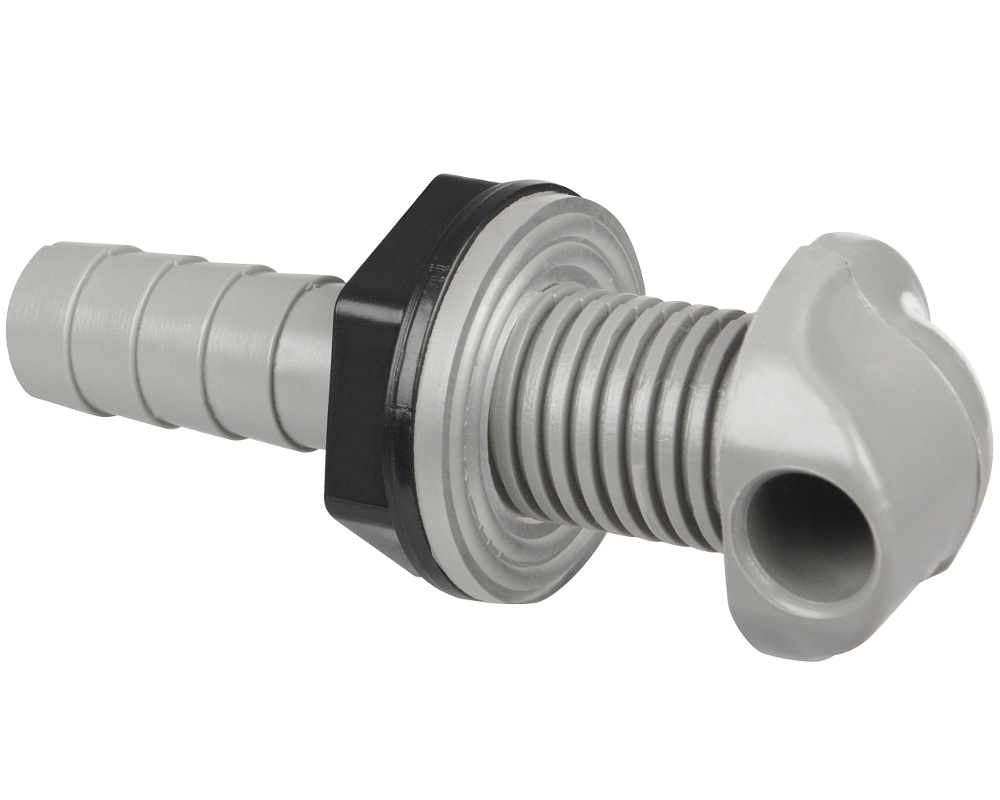

CMP Foot nozzle, wall fitting

This small foot nozzle has the particularity of having a water jet parallel to the spa shell. It can be found on various ozone circuits.

This air jet comes complete with a flat gasket and nut. We also recommend the use of neutral silicone (without aggressive solvents) on the wall fitting as well as on the threads to ensure a complete seal.

This foot nozzle is the perfect replacement for the Waterway model (670-2000, 670-2007), which is no longer on the market.

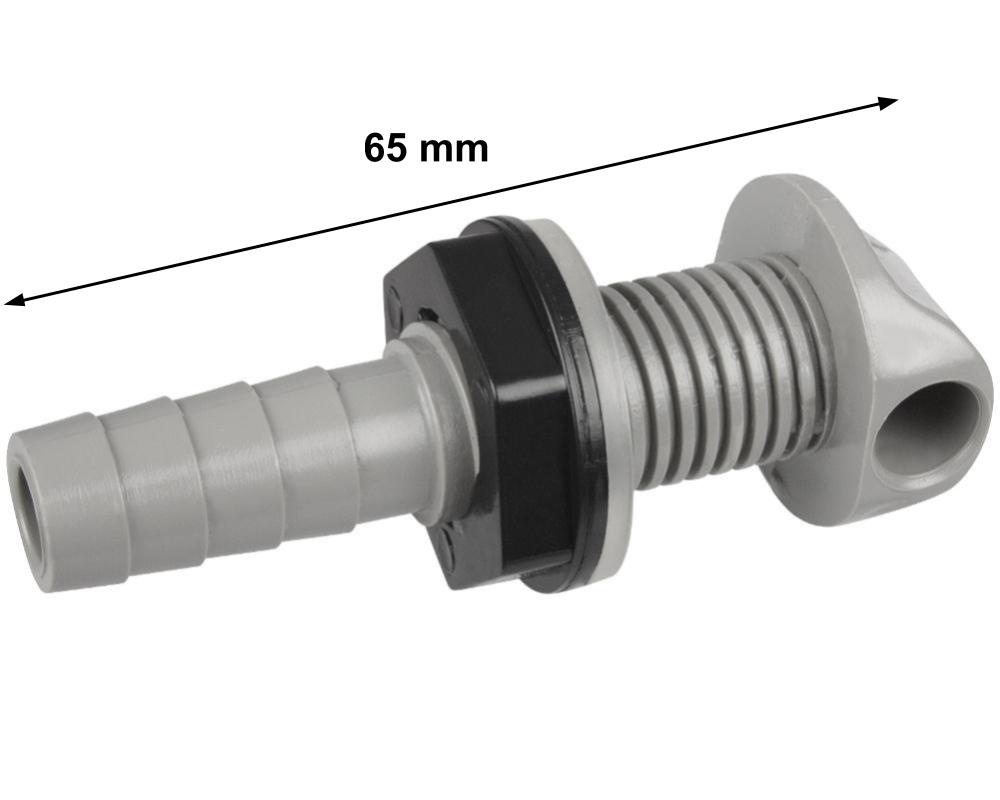

Dimensions
Total length (jet plus fitting): 65 mm
Diameter of the jet face: 25 mm
Diameter for the hole in the spa shell: 14.5 mm
Length thread part : 27 mm
Diameter of barbed fitting: 11.5 mm

Part numbers
CMP : 23001-007-000
Marquis Spa: 320-6757 (grey)
