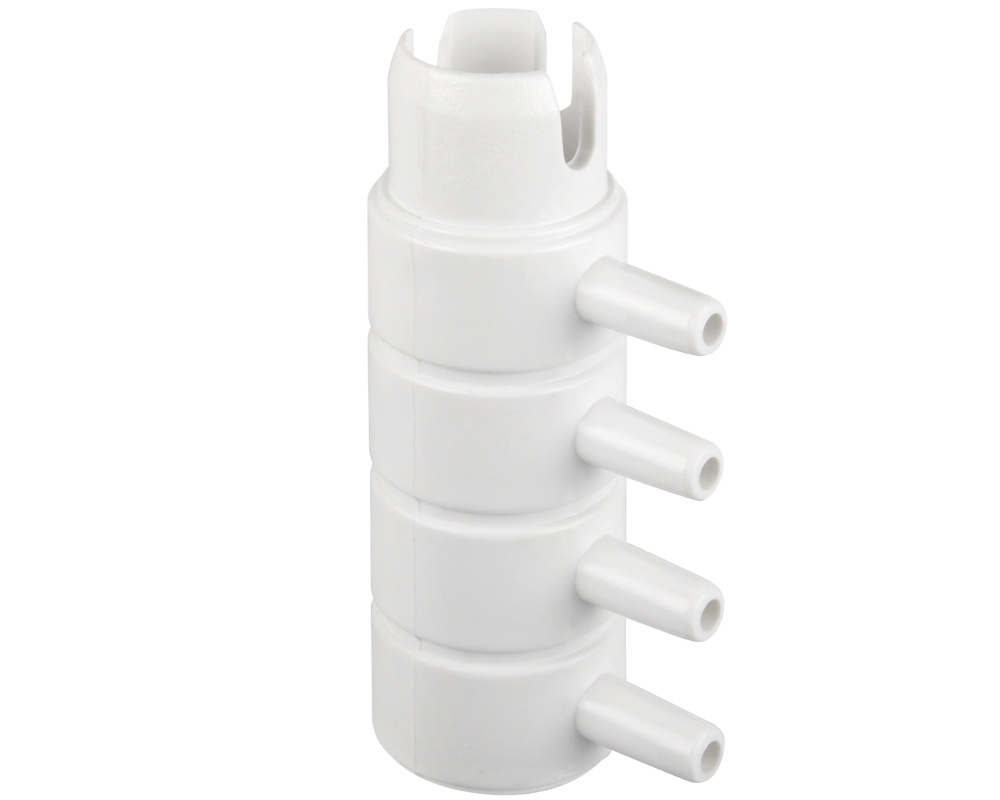

Balboa/HydroAir 1" M, 4 ports 1/4" M+ air manifold

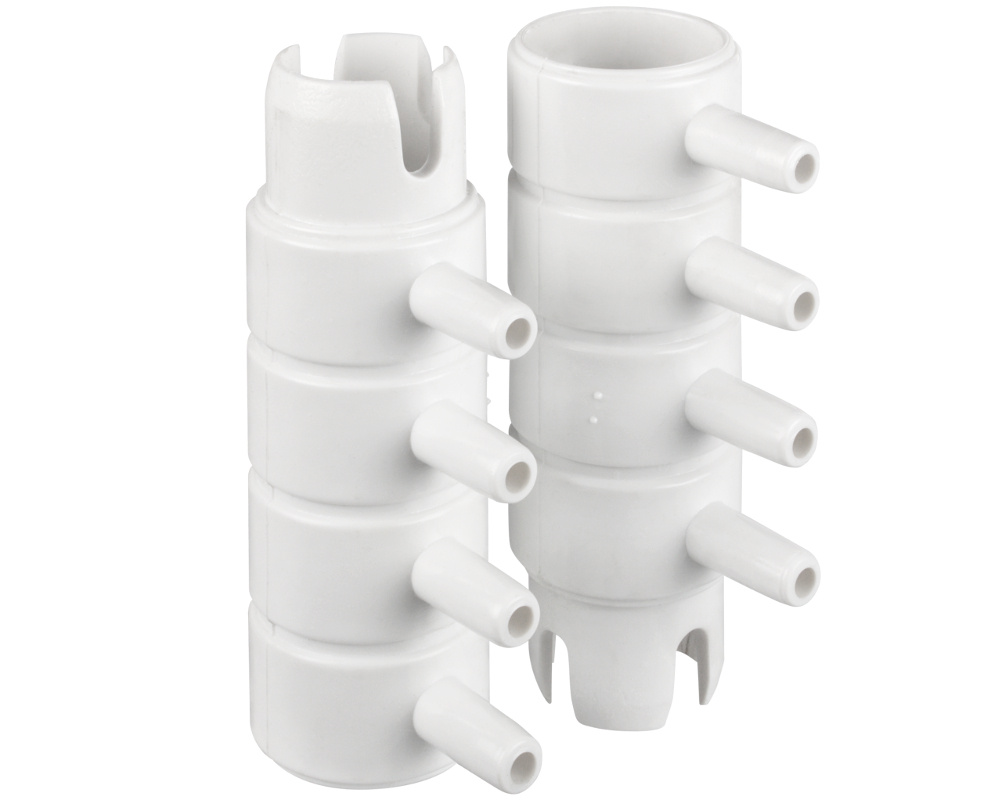

This air manifold has male and female connections measuring 26,5 mm diameter, and four exits of diameter 8 mm. The matching male and female connections mean that you can daisy chain several manifolds together.

You can cut the manifold between exits, to get exactly the number that you need, and plug the female end of the last one in line with an inverted 0.5" plug. The male end fits neatly inside 1-inch pipe.

The smooth barb exits are compatible with either 1/4" or 7/11 mm flexible pipe.

Dimensions
Inlets : 26.5 mm ID x 26.5 mm OD
Outlets : 8 mm (connects to 1/4-inch or 7/11 mm pipe)
Total length : 95 mm

Part numbers
ITT HydroAir : 20-1016
