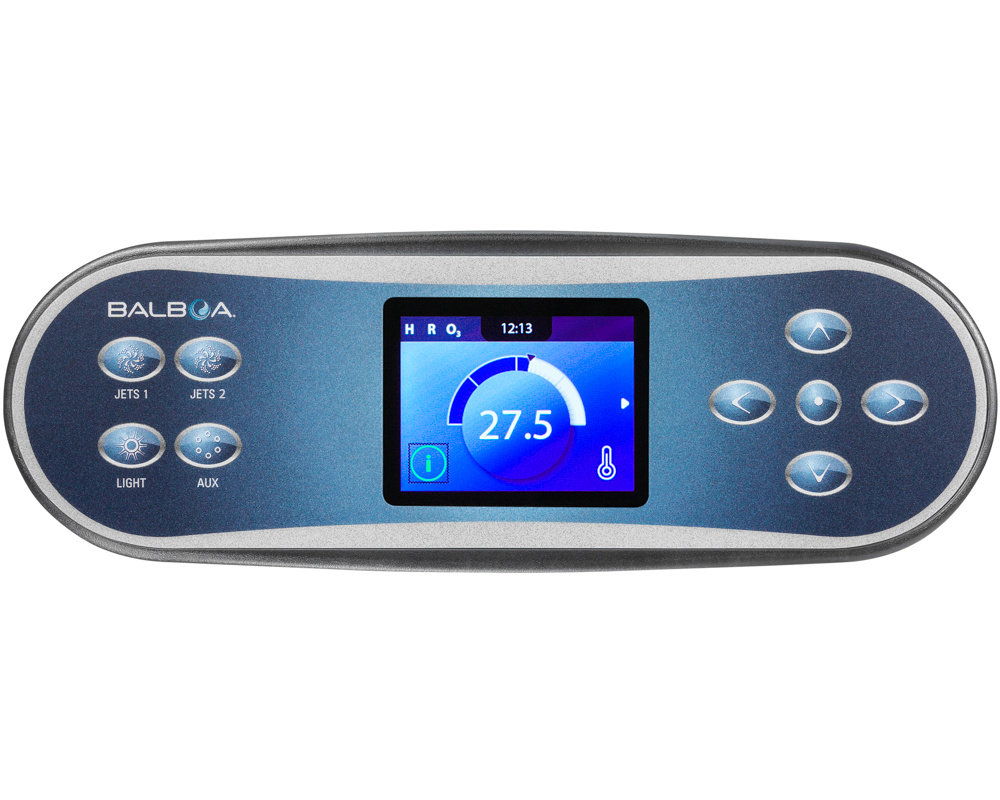

Balboa TP700 control panel

The self-adhesive overlay must be purchased separately for the 9-key and 11-key options.

The TP700 keypad is compatible with Balboa's BP control systems with software version 7.0 or later: the BP200G1, BP200UX, BP6013G1, BP6013G2, BP6013G3, BP2000 and BP2100G1.

The keypad is available in three configurations:

• with 9 keys : Jets 1, Jets 2, Light and Aux buttons on the the left hand side, plus 4 navigation buttons and a select button
• with 10 keys : Jets 1, Jets 2, Jets 3, Light and Aux buttons on the the left hand side, plus 4 navigation buttons and a select button
• with 11 keys : Jets 1, Jets 2, Jets 3, Jets 4, Light and Aux buttons on the the left hand side, plus 4 navigation buttons and a select button

Choose the "without overlay" option if you wish to replace your TP700 with 9 and 11 keys. We offer the overlay separately.

Note that the 9-key version replaces the TP800 which is no longer manufactured. Both models have the same dimensions.

Dimensions
Keypad : 254 x 89 mm
Cut out area : 225 x 60 mm

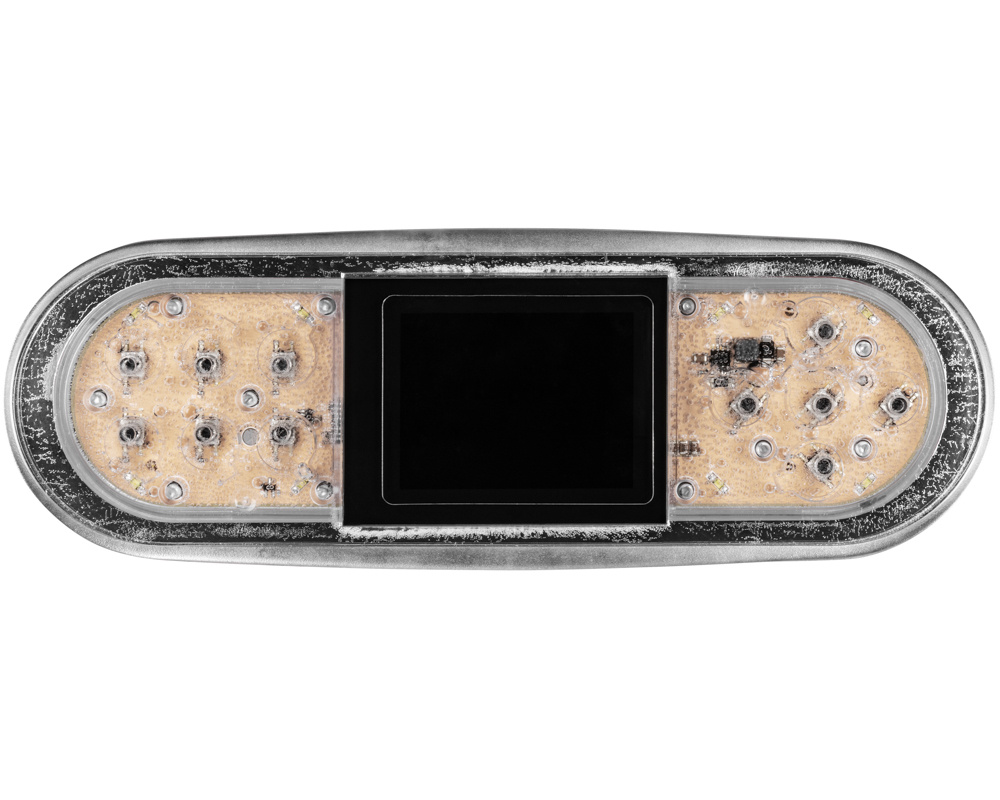

See the photo for the type of plug.

Balboa part numbers
9-button : 57279 (Overlay : 17382)
10-button : 57280 (Overlay : 17381)
