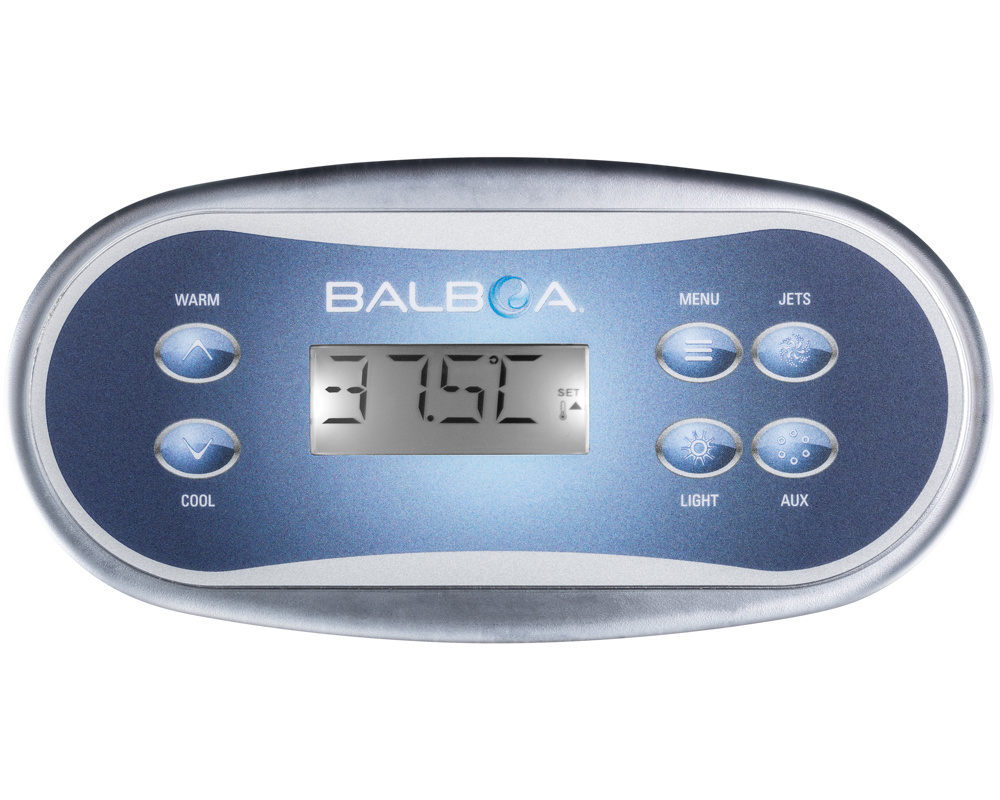

Balboa TP500S control panel

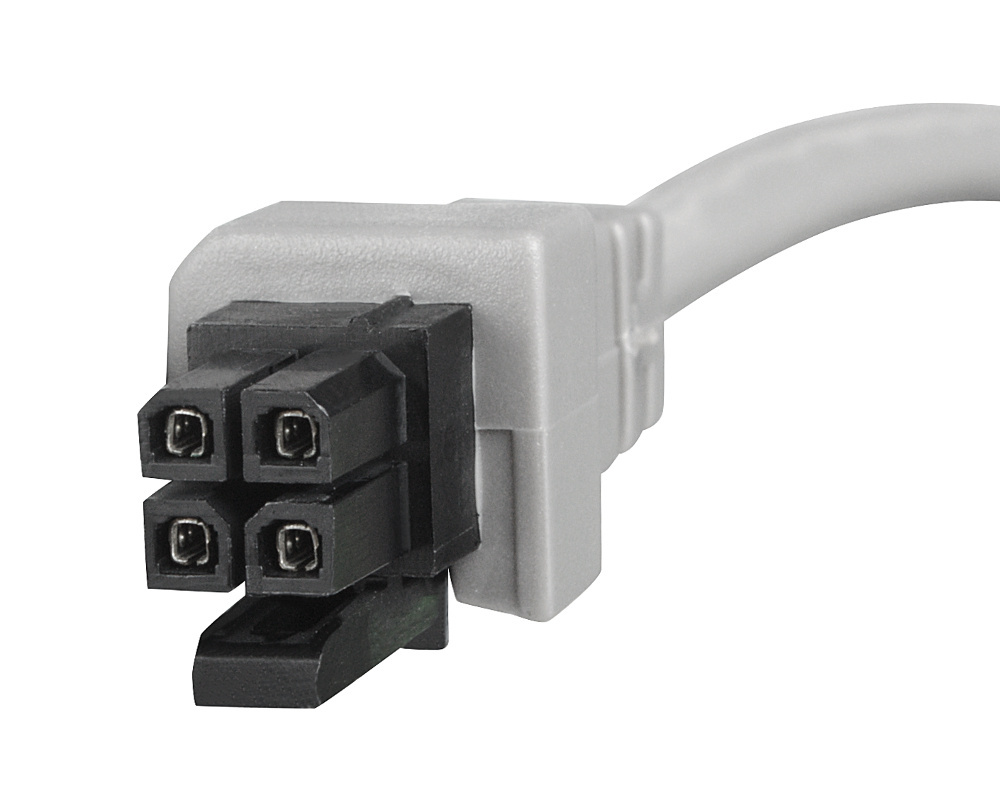

The TP500S keypad is the oval version of the TP500. It is compatible with the BP series control systems : BP200G1, BP200UX, BP600, BP6013G1, BP6013G2, BP6013G3, BP2000 and BP2100G1. It has a 170 cm cable and a 4-pin plug (see photo).

It has 6 buttons: Temperature up and down, Menu, Jets, Light, Aux.

Dimensions
Keypad: x mm
Driling size: 145 x 41 mm
Cable length: approximately 170 cm

Warranty
2-year Tubs Parts warranty

Balboa part numbers
With overlay: 57251-02
Without overlay : 57252-02
Overlay: 17204
