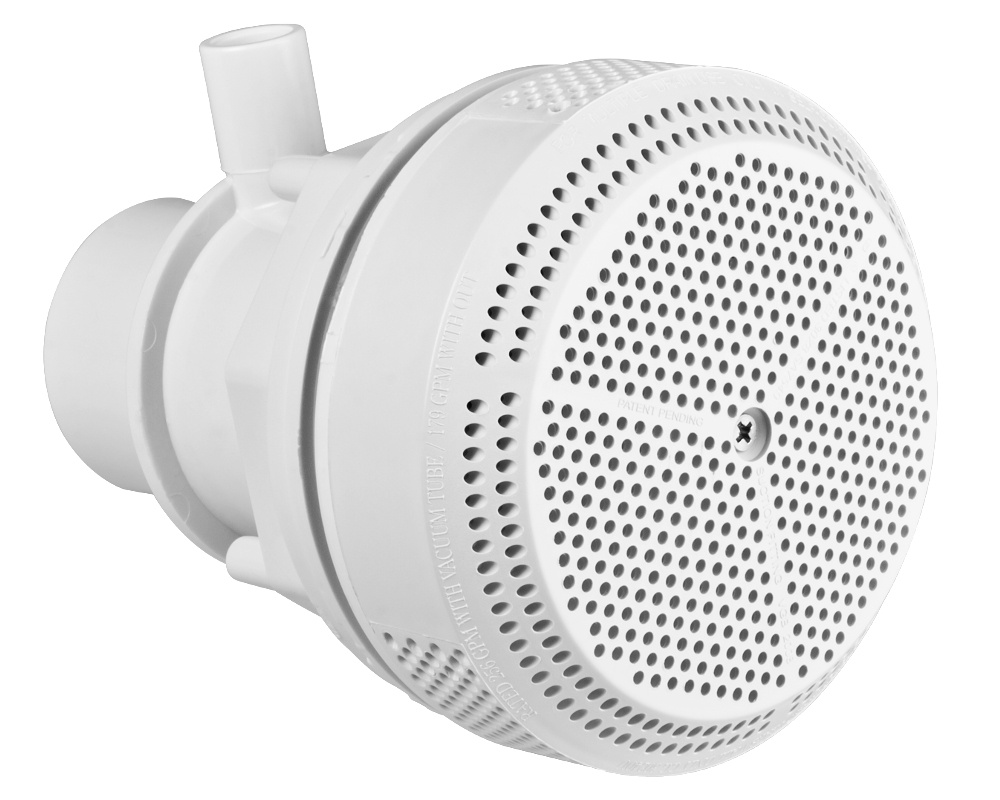

Balboa 2" suction fitting

This Balboa suction fitting has a very high flow rating of 58 m³/hour, due to its air entry point on the back side of the fitting, which helps avoid the possibility of entrapment (if the anti-vortex grille is covered, the fitting will suck in air instead). It has a male connection for a 2-inch pipe fitting, and must be mounted on the wall of the spa, not on the floor.

It is delivered complete with its nut and gasket.

Dimensions
Outside diameter of the face: 124 mm
Drill diameter: 88 mm
Pipe connection: 60 mm, for 2-inch pipe with a 2-inch female fitting

Maximum flow rate
58 m³/hour

Part numbers
Balboa: 39167-WH
The references GG30231U and 30Z8 SA7549 are moulded on the grille.
