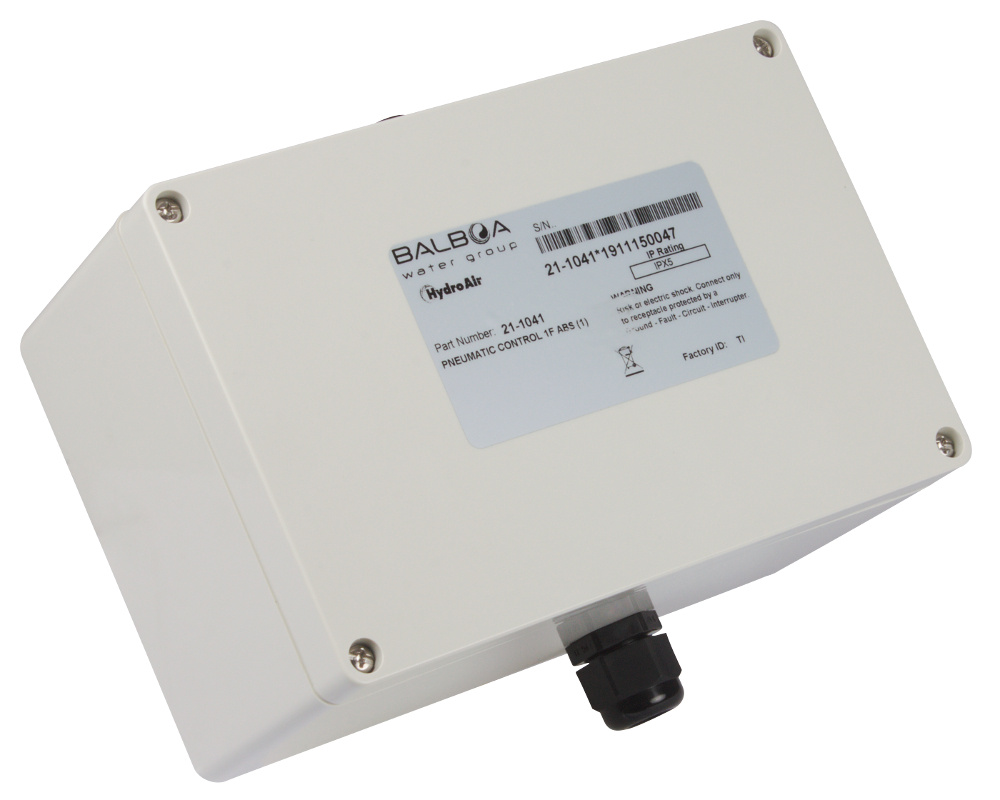

Balboa single-switch pneumatic control box

This Balboa box with one latching air switch is ideal if you don't have enough space to install a complete control system and you only want to control one element in your spa: pump, blower, etc.

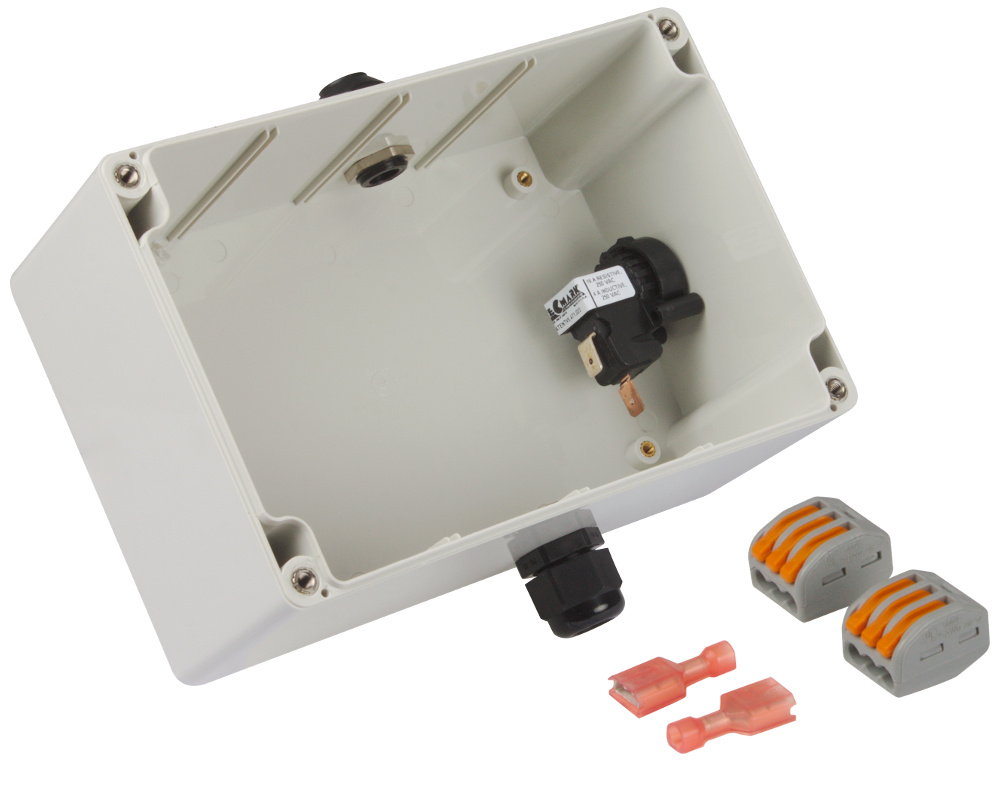

In addition to the air switch, the box contains a gasket, two cable glands and two terminal blocks.

We also offer a box with two latching air switches.

Dimensions
Length: 140 mm
Width: 80 mm
Depth: 65 mm

Technical specifications
Rated voltage: 230V, 50/60 Hz, 1 phase
Rated current on each switch: 16A Resistive or 4A Inductive
Ingress prot. front: IPX5

Part numbers
Balboa: 21-1041
Air switch: 41-0255, TBS106A

Installation instructions
