Balboa sequential massage keypad

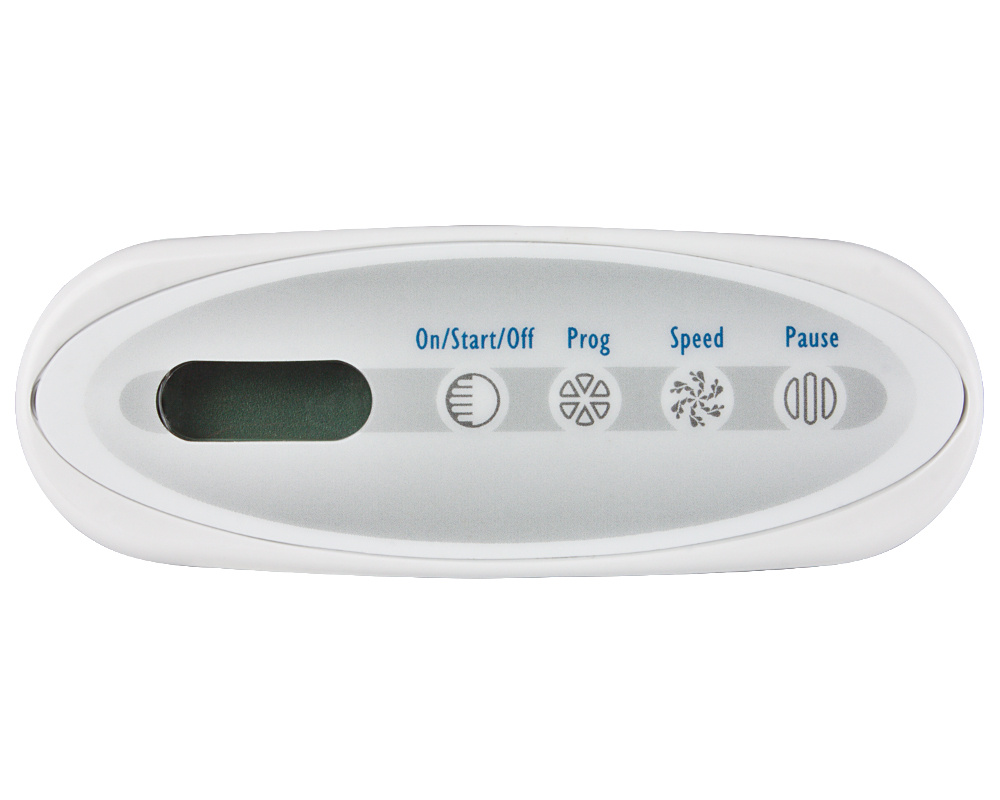

This VL200 auxiliary control keypad is specifically designed to control the Balboa spa therapy sequencer. It has 4 buttons :

• On/Start/Off
• Prog
• Speed
• Pause

It allows the user to start or stop the sequence, choose from 9 sequencing programs, select 1 of 3 sequencing speeds, and pause at any point in the current program.

The 4-button overlay is provided.

Many brands have added the Balboa sequential massage system to their spas, including some Wellis models with the Pulsar system, Hydro Spas and Blue Lagoon among others.

Dimensions
Keyboard: 108 x 38 mm
Drilling area: 95 x 25 mm
Cable: 2 m

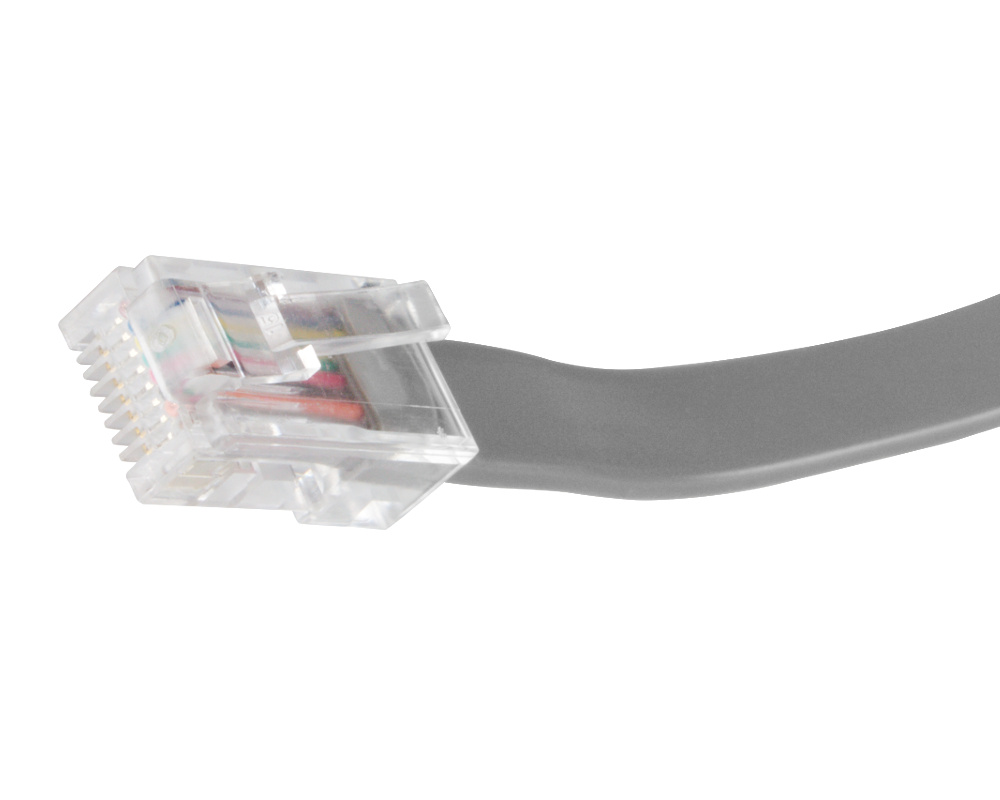

Plug: RJ45, to connect to the sequencer

Part numbers:
Balboa : 52501

Technical data sheet
